4-/6-/8-Channel, 16-/14-Bit, Simultaneous-Sampling ADCs, SGM51652S8 Replace MAX11049.
SGM51652S8
SGM51652S8.pdf
SGM51652S8.pdfFEATURES
• 8 Channels Simultaneous Sampling
SGM51652S8 Supports 500kSPS on All Channels
Simultaneously
SGM51622S8 Supports 250kSPS on All Channels
Simultaneously
• True Bipolar Analog Input Ranges: ±10V, ±5V
• Single 5V Analog Supply and 2.7V to 5V VDRIVE
• Input Buffer with 1MΩ Analog Input Impedance
• On-Chip Accurate Reference and Reference Buffer
• Configurable Oversampling Capability with Digital Filter
• Flexible Parallel Interface or Serial Interface
SPI-Compatible
• Performance
SNR: 91.2dB (TYP), THD: -106dB (TYP)
INL: ±1.5LSB (TYP), DNL: +1LSB/-0.65LSB (TYP)
TBDkV ESD Rating on Analog Input Channels
• Operating Temperature Range: -40℃ to +125℃
• Available in a Green LQFP-10×10-64L Package
PIN CONFIGUTION
优势替代
FEATURES
• 16-Bit ADC (MAX11047/MAX11048/MAX11049)
• 14-Bit ADC (MAX11057/MAX11058/MAX11059)
• 4-Channel ADC (MAX11047/MAX11057)
• 6-Channel ADC (MAX11048/MAX11058)
• 8-Channel ADC (MAX11049/MAX11059)
• Single Analog and Digital Supply
• High-Impedance Inputs Up to 1GΩ
• On-Chip T/H Circuit for Each Channel
• Fast 3µs Conversion Time
• High Throughput: 250ksps for Each Channel
• 16-/14-Bit, High-Speed, Parallel Interface
• Internal Clocked Conversions
• 10ns Aperture Delay
• 100ps Channel-to-Channel T/H Matching
• Low Drift, Accurate 4.096V Internal Reference
Providing an Input Range of 0 to 5V
• External Reference Range of 3.0V to 4.25V,
Allowing Full-Scale Input Ranges of +3.7V to +5.2V
• 56-Pin TQFN (8mm x 8mm) and 64-Pin TQFP
(10mm x 10mm) Packages
• Evaluation Kit Available (MAX11046EVKIT+)

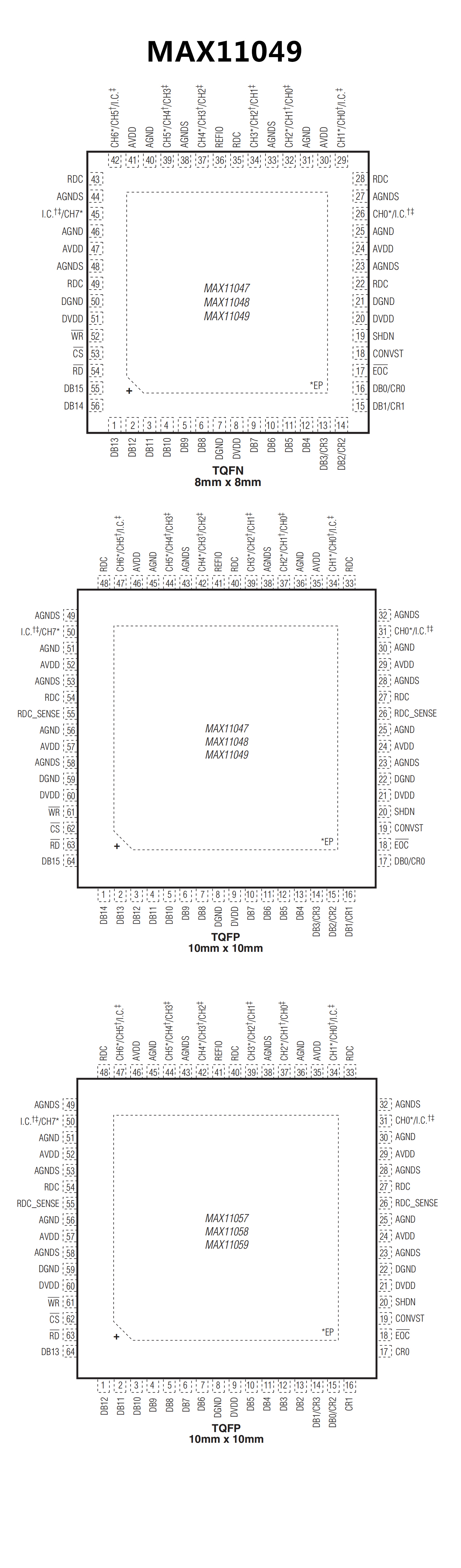

PIN CONFIGUTION
