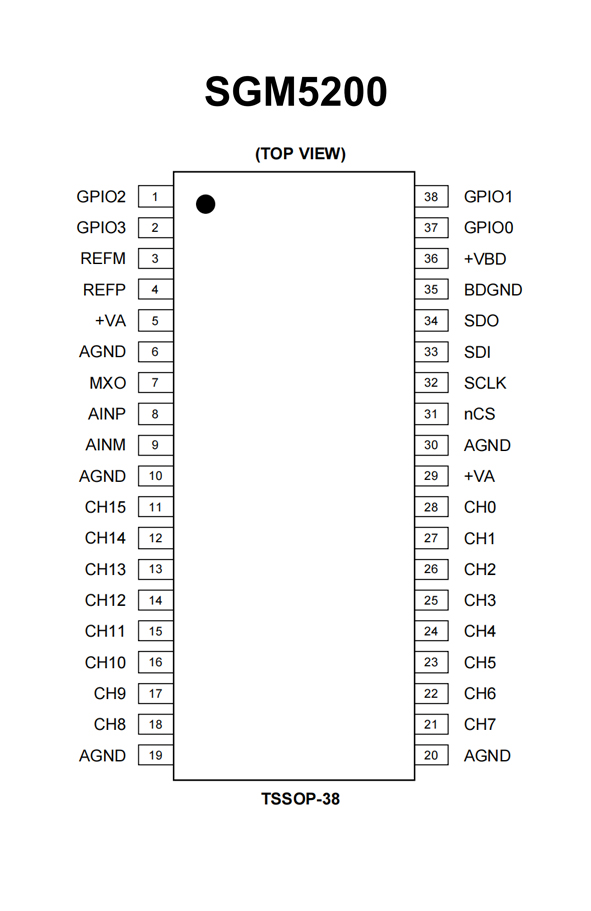

SGM5200.pdf• 1MHz Sample Rate
• 12-Bit Resolution
• 16 Channels
• Zero Latency
• 20MHz Serial Interface
• Analog Power Supply Range: 2.7V to 5.25V
• Digital I/O Power Supply Range: 1.7V to 5.25V
• Two Software Selectable Unipolar, Input Ranges
Range 1: 0V to VREF
Range 2: 0V to 2 × VREF
• Auto and Manual Modes for Channel Selection
• Two Programmable Alarm Thresholds per Channel
• Four Individually Configurable GPIOs in TSSOP
Package and One GPIO in TQFN Package
• Typical Power Dissipation:
24mW (VA = 5V, VBD = 3V) at 1MSPS
• Power-Down Current: 1.4μA (TYP)
• Input Bandwidth: 45MHz (TYP) at -3dB
• Available in Green TSSOP-38 and TQFN-5×5-32L
Packages

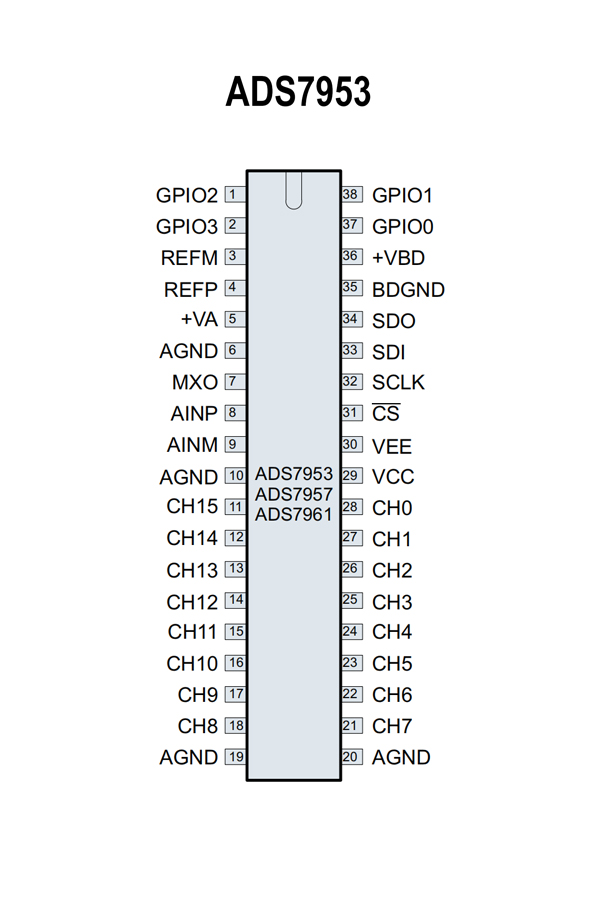

• 1-MHz Sample Rate Serial Devices
• Product Family of 12/10/8-Bit Resolution
• Zero Latency
• 20-MHz Serial Interface
• Analog Supply Range: 2.7 to 5.25V
• I/O Supply Range: 1.7 to 5.25V
• Two SW Selectable Unipolar, Input Ranges: 0
to 2.5V and 0 to 5V
• Auto and Manual Modes for Channel Selection
• 12,8,4-Channel Devices can Share 16 Channel
Device Footprint
• Two Programmable Alarm Levels per Channel
• Four Individually Configurable GPIOs
• Typical Power Dissipation: 14.5 mW (+VA = 5V,
+VBD = 3V) at 1 MSPS
• Power-Down Current (1 µA)
• Input Bandwidth (47 at 3dB)
• 30-Pin and 38-Pin TSSOP Packages
