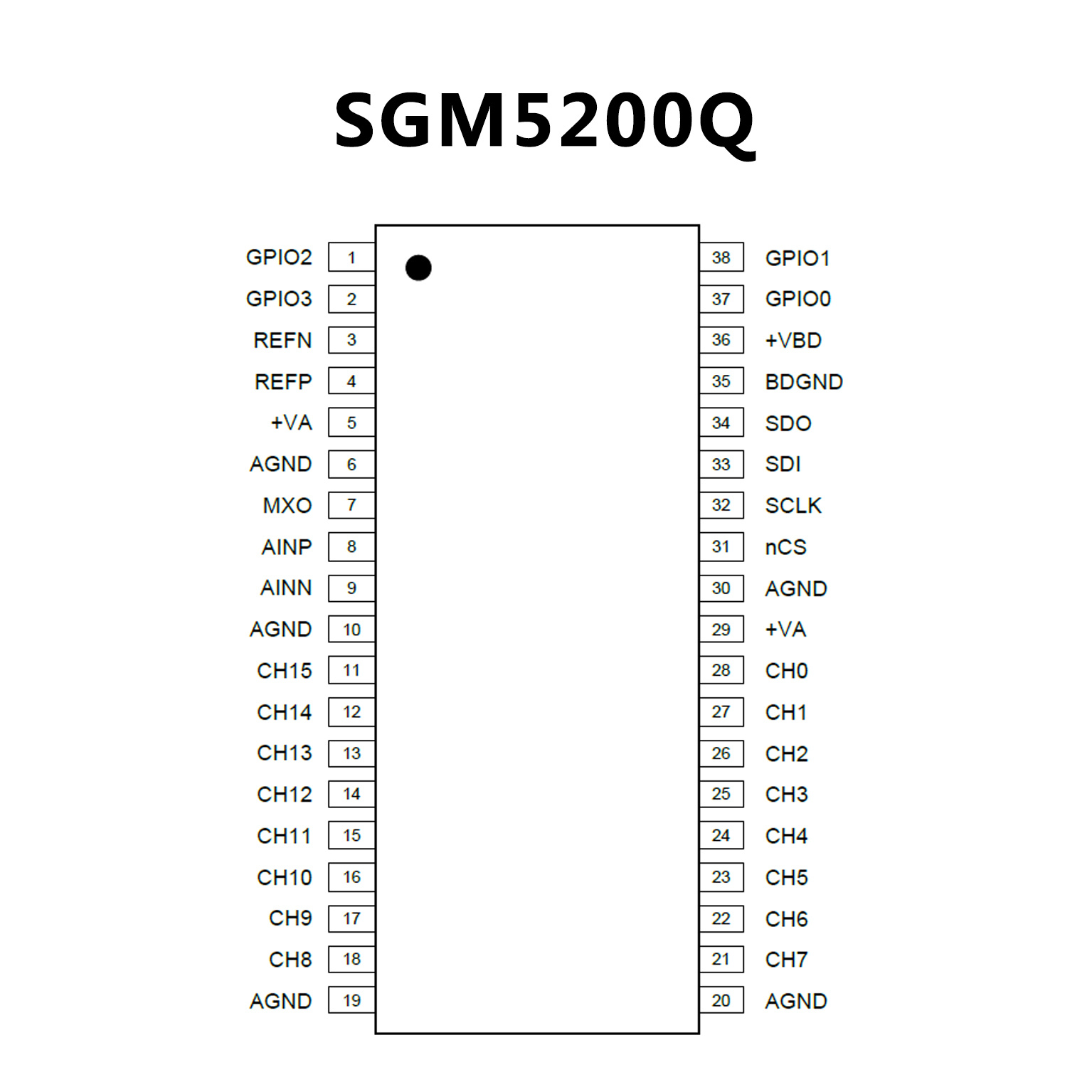

SGM5200Q.pdf• AEC-Q100 Qualified for Automotive Applications Device Temperature Grade 1
TA = -40℃ to +125℃
• 12-Bit Resolution
• 16 Channels
• Sampling Rate: Up to 1MHz
• Supply Voltage Ranges:
Analog Supply: 2.7V to 5.25V
Digital Supply: 1.7V to 5.25V
• Two Software Selectable Unipolar Input Ranges:
Range 1: 0V to VREF
Range 2: 0V to 2 × VREF
• Support Auto and Manual Channel Selections
• Individually Configurable GPIOs Function: Four GPIOs
• 20MHz SPI-Compatible Serial Interface
• Power-Down Current: 1.4μA (TYP)
• Input Bandwidth: 45MHz (TYP) at -3dB
• Typical Power Consumption:
24mW at 1MSPS (VA = 5V, VBD = 3V)
• Available in a Green TSSOP-38 Package
• Qualified for Automotive Applications
• Device Temperature Grade 1: –40°C to 125°C
Ambient Operating Temperature Range
• Device HBM ESD Classification Level H2
• Device CDM ESD Classification Level C4B

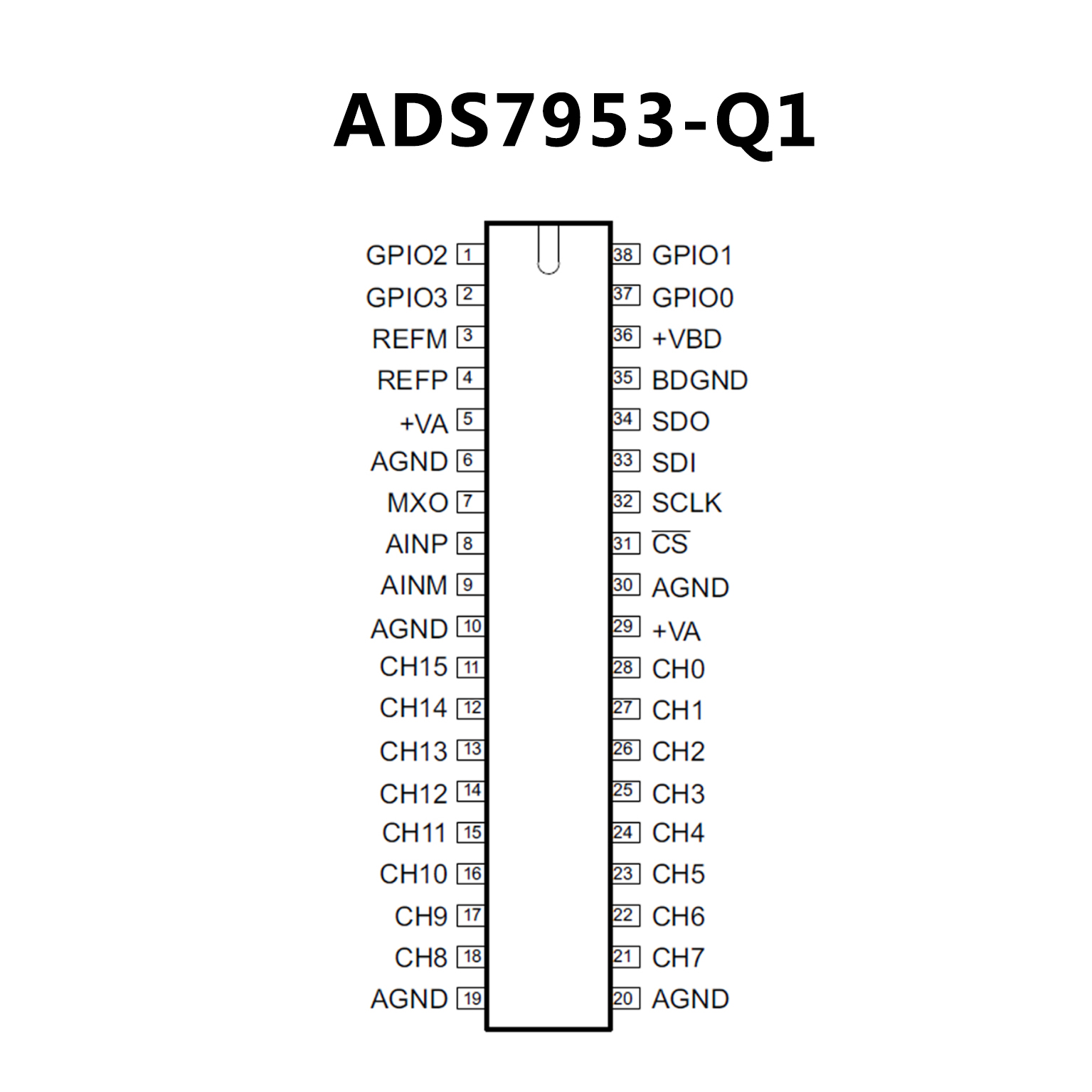

• 8-, 10-, and 12-Bit Resolution
• 4-, 8-, 12-Channel Devices Share 16-Channel
• 1-MHz Sample-Rate Serial Devices
• Analog Supply Range: 2.7 V to 5.25 V
• I/O Supply Range: 1.7 V to 5.25 V
• Two SW-Selectable Unipolar, Input Ranges:
• (0 V to 2.5 V) or (0 V to 5 V)
• Auto and Manual Modes for Channel Selection
• Two Programmable Alarm Levels per Channel
• Four Individually Configurable GPIOs
• Typical Power Dissipation: 14.5 mW
(V(+VA) = 5 V, V(+VBD) = 3 V) at 1 MSPS
• Power-Down Current (1 μA)
• 30-Pin and 38-Pin TSSOP Package
