4-/6-/8-Channel, 16-/14-Bit, Simultaneous-Sampling ADCs, SGM5208 Replace MAX11049ETN.
SGM5208-16.pdf优势替代
FEATURES
• 16-Bit ADC (MAX11047/MAX11048/MAX11049)
• 14-Bit ADC (MAX11057/MAX11058/MAX11059)
• 4-Channel ADC (MAX11047/MAX11057)
• 6-Channel ADC (MAX11048/MAX11058)
• 8-Channel ADC (MAX11049/MAX11059)
• Single Analog and Digital Supply
• High-Impedance Inputs Up to 1GΩ
• On-Chip T/H Circuit for Each Channel
• Fast 3µs Conversion Time
• High Throughput: 250ksps for Each Channel
• 16-/14-Bit, High-Speed, Parallel Interface
• Internal Clocked Conversions
• 10ns Aperture Delay
• 100ps Channel-to-Channel T/H Matching
• Low Drift, Accurate 4.096V Internal Reference
Providing an Input Range of 0 to 5V
• External Reference Range of 3.0V to 4.25V,
Allowing Full-Scale Input Ranges of +3.7V to +5.2V
• 56-Pin TQFN (8mm x 8mm) and 64-Pin TQFP
(10mm x 10mm) Packages
• Evaluation Kit Available (MAX11046EVKIT+)

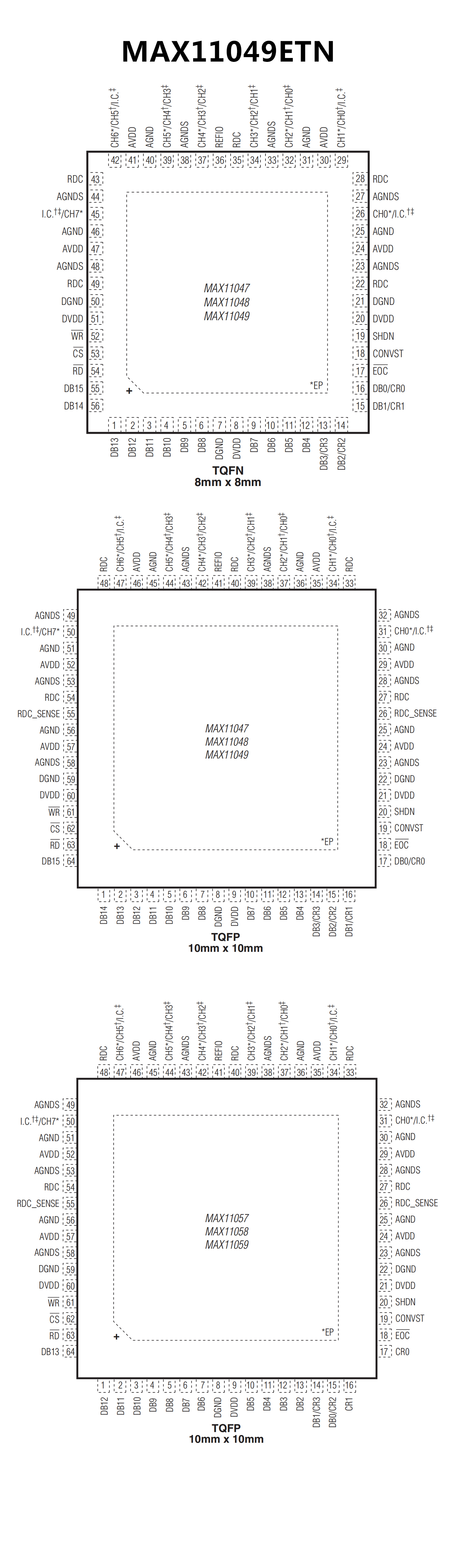

PIN CONFIGUTION
