Ultra-Small, Low-Power, 24-Bit Analog-to-Digital Converter with Internal Reference, SGM52410C P2P ADS1115.
SGM52410C
SGM52410C.pdf
SGM52410C.pdfFEATURES
• Single-Supply Voltage Range: 2V to 5.5V
I2C Bus Voltage Range: 2V to 5.5V
• Low Quiescent Current:
Continuous Mode: 310μA (TYP)
Power-Down Mode: 0.65μA (TYP)
• Selectable Data Rates: 5SPS to 960SPS
• Single-Cycle Settling
• 50/60Hz Line Rejection
• Input Multiplexer
4 Single-Ended Inputs or 2 Differential Inputs
• Internal Programmable Gain Amplifier (PGA)
• Internal Voltage Reference and Oscillator
• Selectable Digital Comparator
• I2C-Compatible Serial Interface
• Available in Green MSOP-10 and UTQFN-2×1.5-10L
Packages

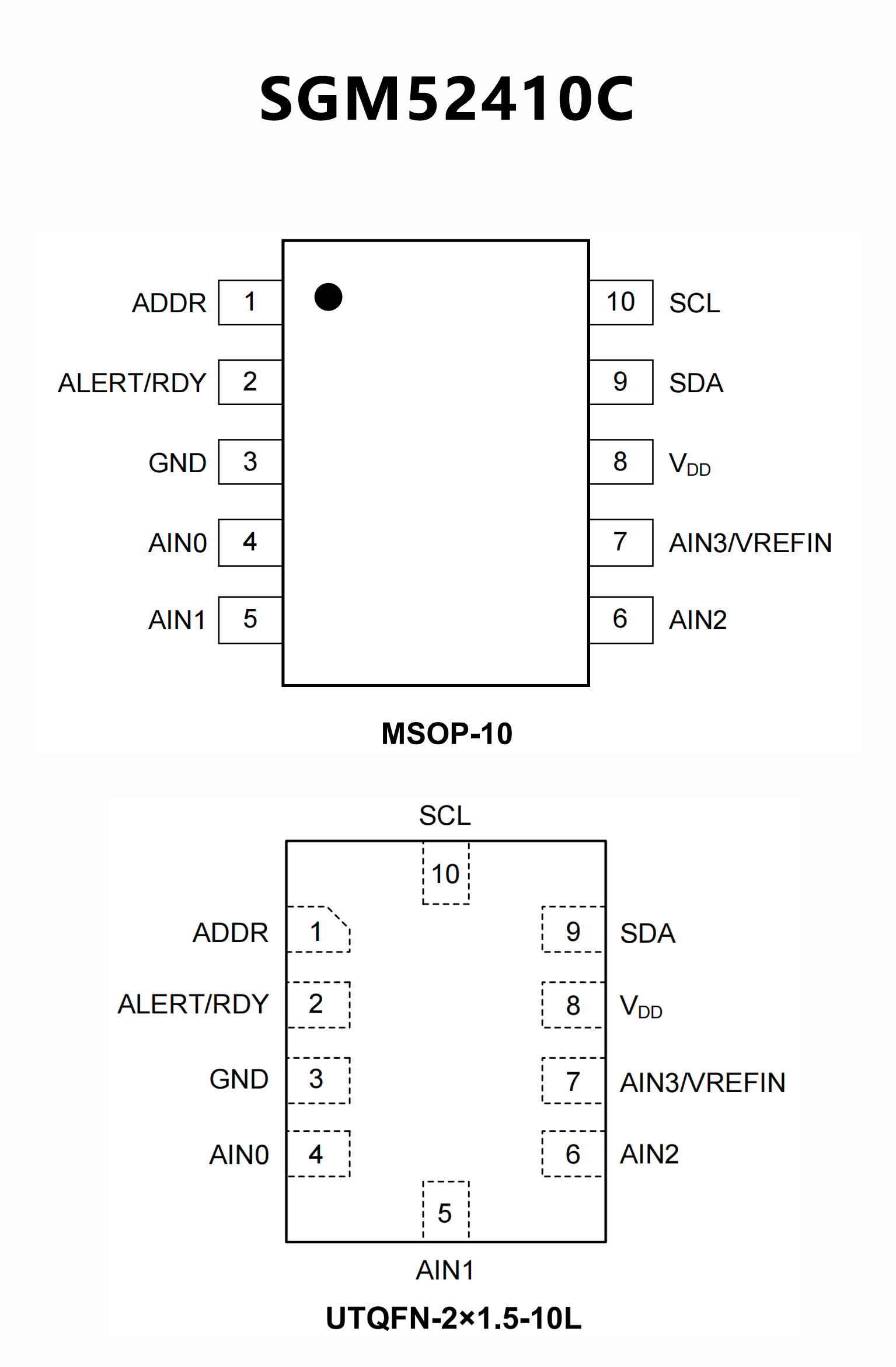

PIN CONFIGUTION
优势替代
FEATURES
• ULTRA-SMALL QFN PACKAGE:
2mm × 1,5mm × 0,4mm
• WIDE SUPPLY RANGE: 2.0V to 5.5V
• LOW CURRENT CONSUMPTION:
Continuous Mode: Only 150μA
Single-Shot Mode: Auto Shut-Down
• PROGRAMMABLE DATA RATE: 8SPS to 860SPS
• INTERNAL LOW-DRIFT VOLTAGE REFERENCE
• INTERNAL OSCILLATOR
• INTERNAL PGA
• I2C ™ INTERFACE: Pin-Selectable Addresses
• OPERATING TEMPERATURE: –40°C to +140°C

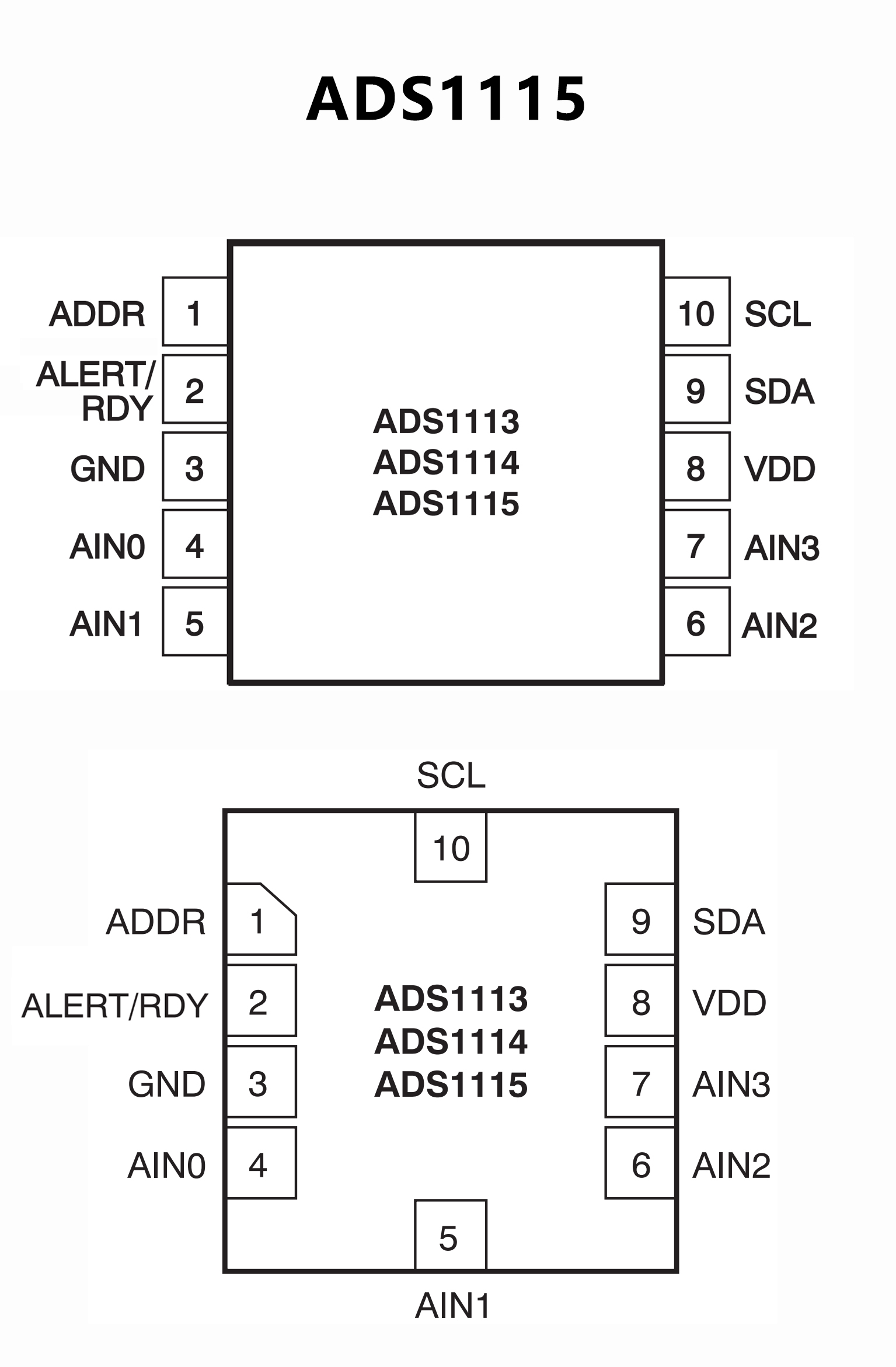

PIN CONFIGUTION
