8 Channels, 12-Bit Digital-to-Analog Converter with Output Operational Amplifier, SGM5347-12 Replace AA88347.
SGM5347-12
SGM5347-12.pdf
SGM5347-12.pdfFEATURES
• Low Power Consumption (0.5mW/CH)
• Integrating 8 Channels of 12-Bit DAC
• Simultaneous 8 Channels Output Updating
• Build-in Analog Output Amplifier with Sink/Source
Current Capability and Short Current Control
• The Range of D/A Conversion can be Independently
Set by Separating the Power Supply for MCU Interface
and Operational Amplifier and the Power Supply for DAC
• Capable of being Controlled Directly by a 3V MCU
• Individual Channel Power-Down Capability
0.6μA (TYP) ICC for Power-Down Mode
• Power-On Reset: Output Reset to GND
• Daisy-Chain Capability
• Serial Data Input: Up to 2.5MHz Operation
• Wide Power Supply Range: 2.8V to 5.5V
• Available in Green SOIC-16 and TSSOP-16 Packages

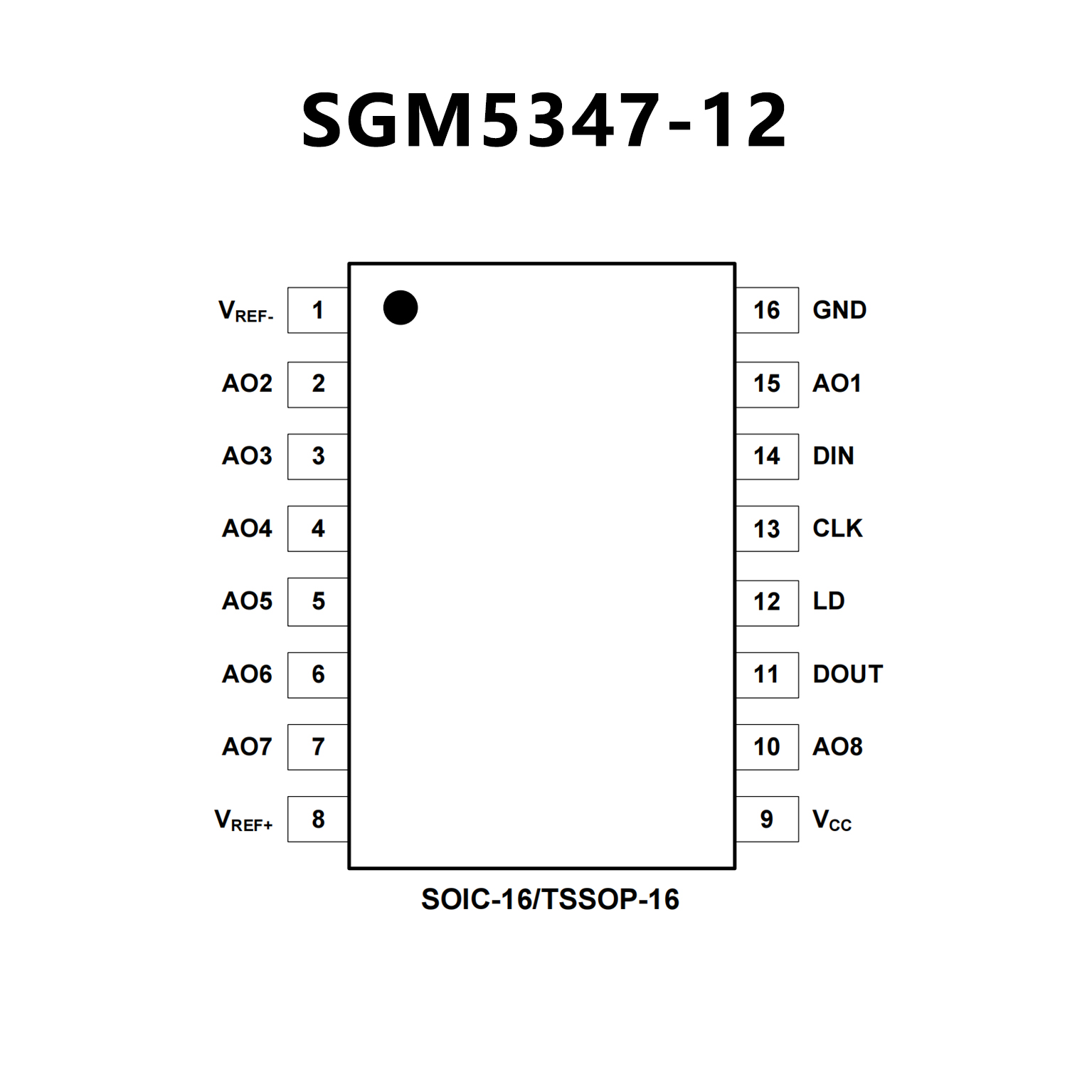

PIN CONFIGUTION
优势替代
FEATURES
• 12 bits serial data input(3 wire serial data transfer method,
DI, CLK, LD)
• R-2R resistor ladder used for D/A conversion
• 8 channels with 8-bit resolution monotonic D/A converted
• 8 channel buffer operational amplifiers operating in the full
voltage range from VCC to GND only if VDD=VCC and
VSS=GND
• Max. 2.5 MHz serial digital data input
• Serial I/O for cascade application
• Max. 1.0 mA output drive/sink current
• Two separate power supply/ground lines for system and
analog power supply
• Single +5 V system power supply

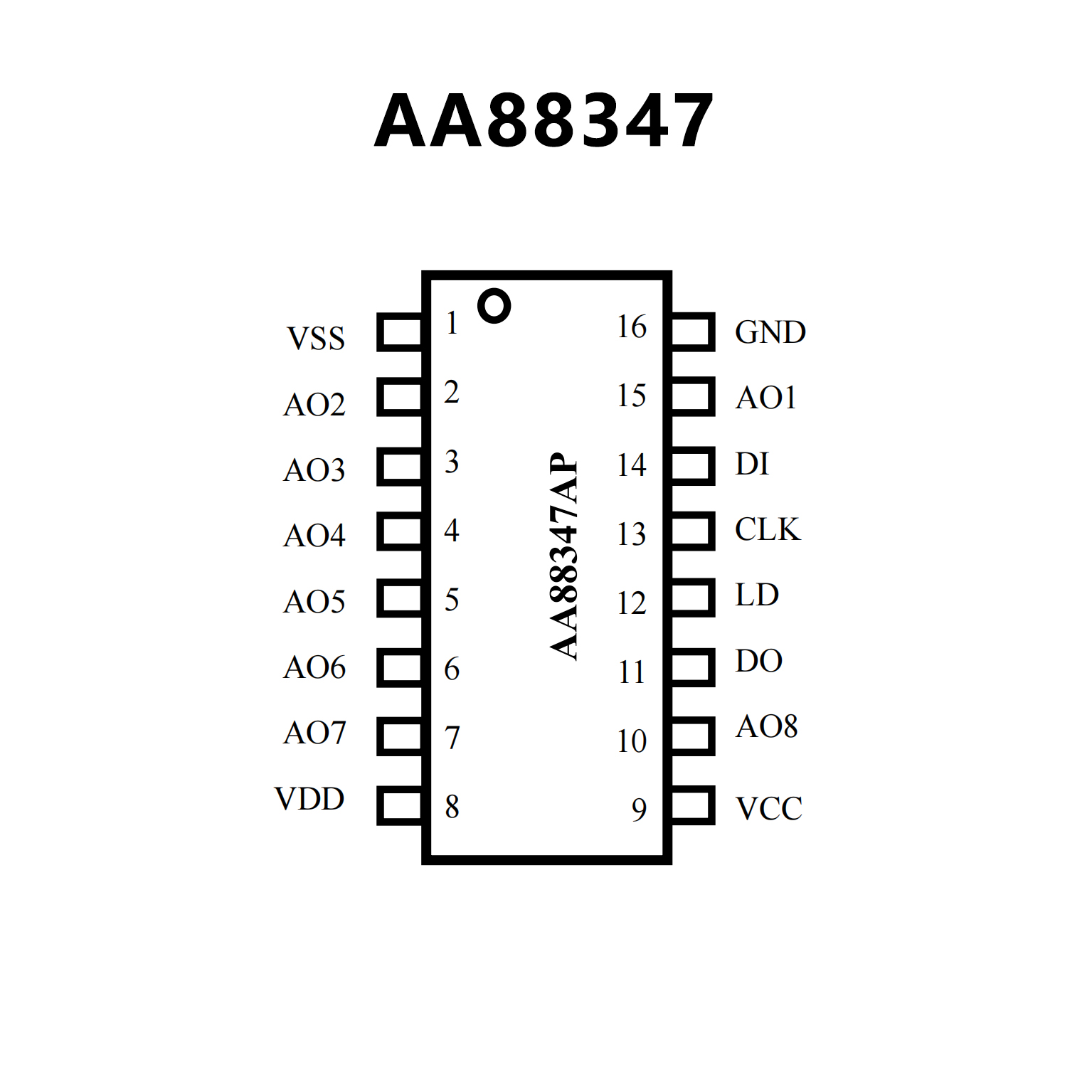

PIN CONFIGUTION
