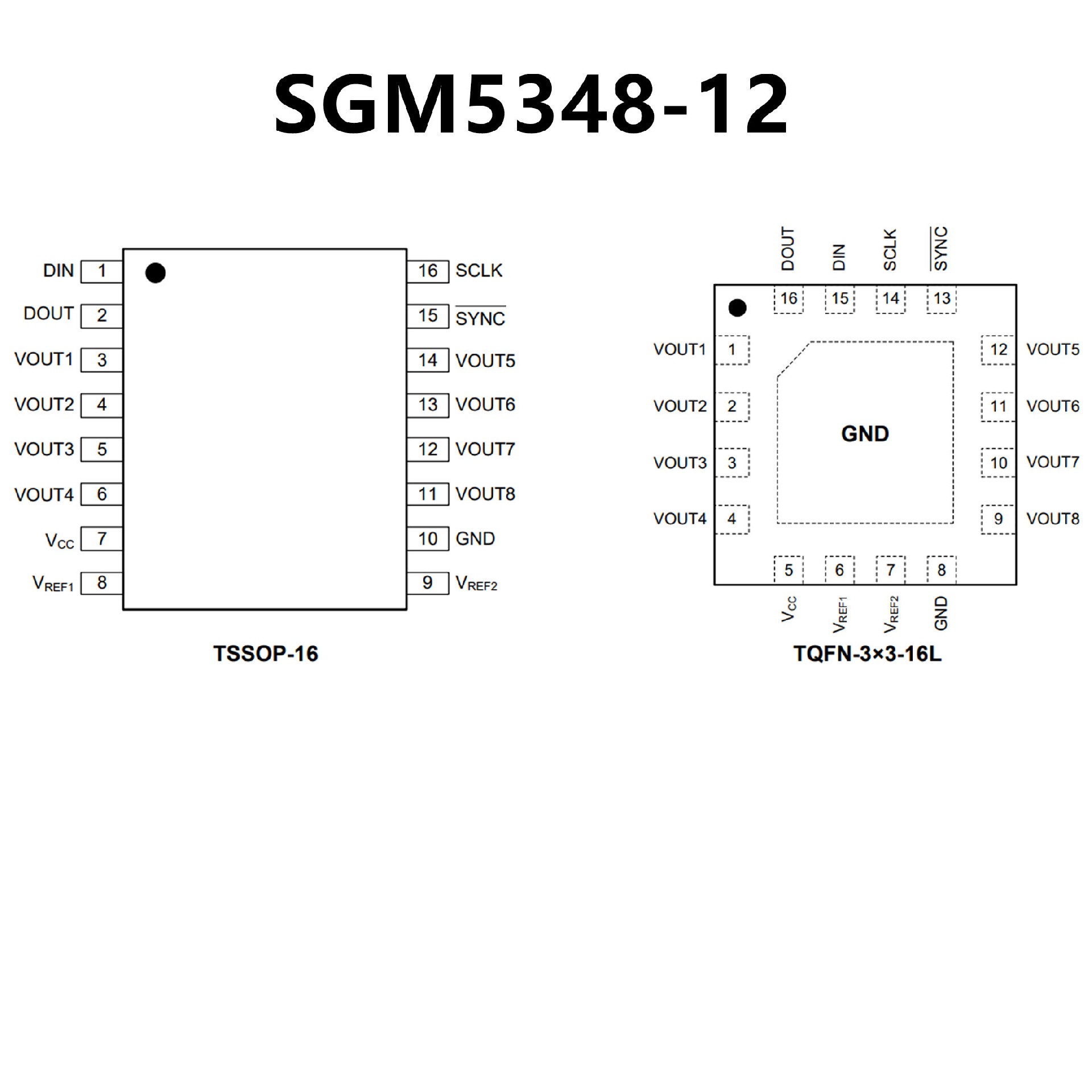

SGM5348-12.pdf• Low Power Consumption (0.5mW/CH)
• Integrating 8 Channels of 12-Bit DAC
• Built-in Rail-to-Rail Output Amplifier:
Sink/Source Current with Short Current Control
• Daisy-Chain Capability
• Simultaneous 8 Channels Output Updating
• Individual Channel Power-Down Capability
0.6μA (TYP) ICC for Power-Down Mode
• 0.1% (TYP) Gain Error for All Channels
• Interface Sees No Quiescent Current when VBUS < VCC
• Power-On Reset: Output Reset to GND
• Serial Data Input: Up to 40MHz Operation
• TTL Compatible Input Logic Level
• Wide Power Supply Range: 2.8V to 5.5V
• Dual Reference Voltages with Range of 0.5V to VCC
• -40℃ to +125℃ Operating Temperature Range
• Available in Green TSSOP-16 and TQFN-3×3-16L
Packages

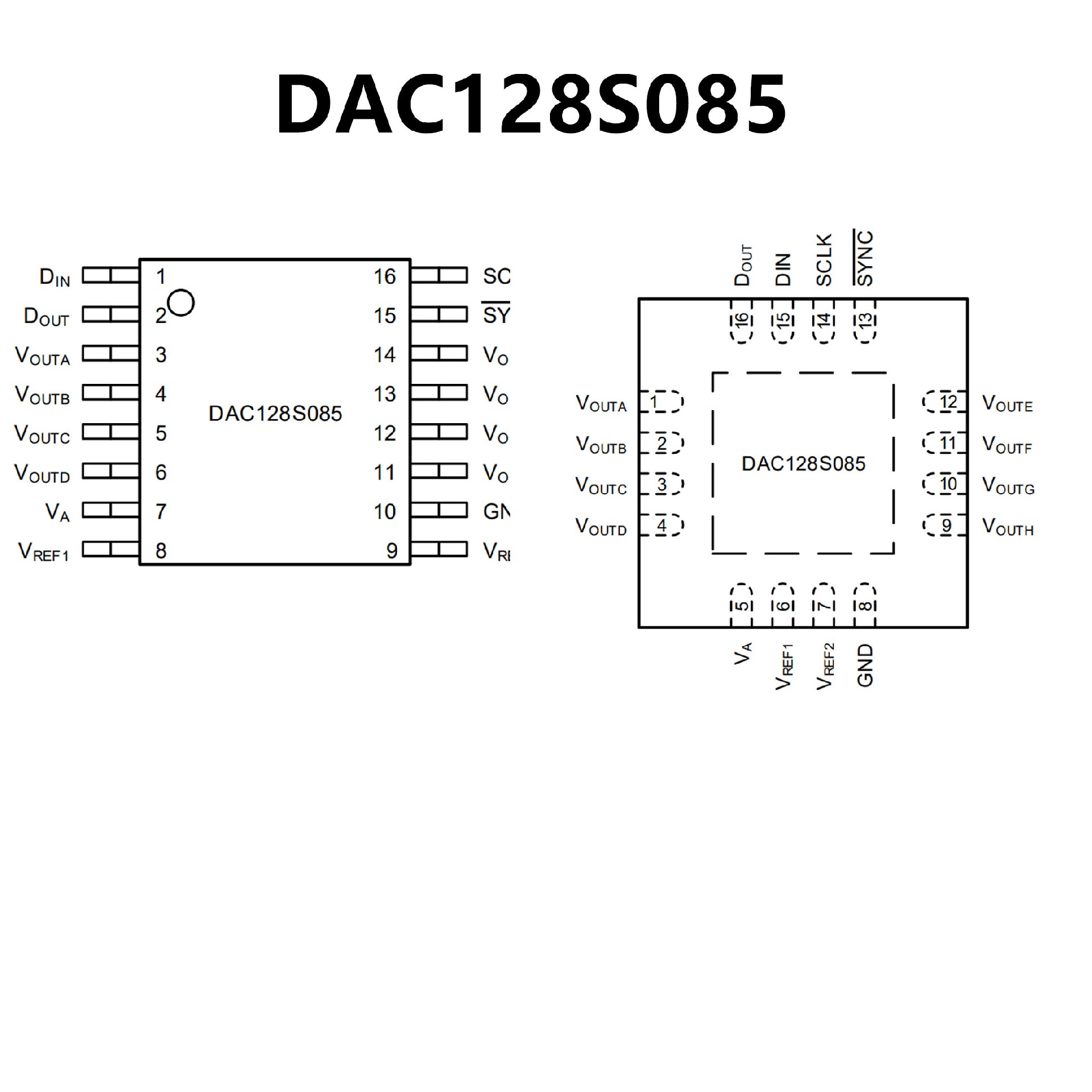

• Ensured Monotonicity
• Low Power Operation
• Rail-to-Rail Voltage Output
• Daisy-Chain Capability
• Power-on Reset to 0 V
• Simultaneous Output Updating
• Individual Channel Power-Down Capability
• Wide Power Supply Range (2.7 V to 5.5 V)
• Dual Reference Voltages With Range of 0.5 V to VA
• Operating Temperature Range of −40°C to 125°C
• Smallest Package in the Industry
• Resolution 12 Bits
• INL ±8 LSB (Maximum)
• DNL 0.75 / −0.4 LSB (Maximum)
• Settling Time 8.5 μs (Maximum)
• Zero Code Error 15 mV (Maximum)
• Full-Scale Error −0.75 %FSR (Maximum)
• Supply Power
1.95 mW (3 V) / 4.85 mW (5 V) Typical
Power Down 0.3 μW (3 V) / 1 μW (5 V) Typical
