8 Channels, 12-Bit Digital-to-Analog Converter with Output Operational Amplifier,SGM5348-Replace-CBM128S085TS.
FEATURES

 Low Power Consumption (0.5mW/CH)

 Integrating 8 Channels of 12-Bit DAC

 Built-In Rail-to-Rail Output Amplifier:

  Sink/Source Current with Short Current Control

• Daisy-Chain Capability

 Simultaneous 8 Channels Output Updating

 Individual Channel Power-Down Capability

  0.6μA ICC for Power-Down Mode

 0.1% Gain Error for All Channels

 Interface Sees No Quiescent Current when VBUS < VCC

 Power-On Reset: Output Reset to GND

 Serial Data Input: 40MHz Operation

 TTL Compatible Input Logic Level

 Wide Power Supply Range: 2.7V to 5.5V

 Dual Reference Voltages with Range of 0.5V to VCC

 -40℃ to +125℃ Operating Temperature Range

 Available in Green TSSOP-16 and TQFN-3×3-16L
Packages

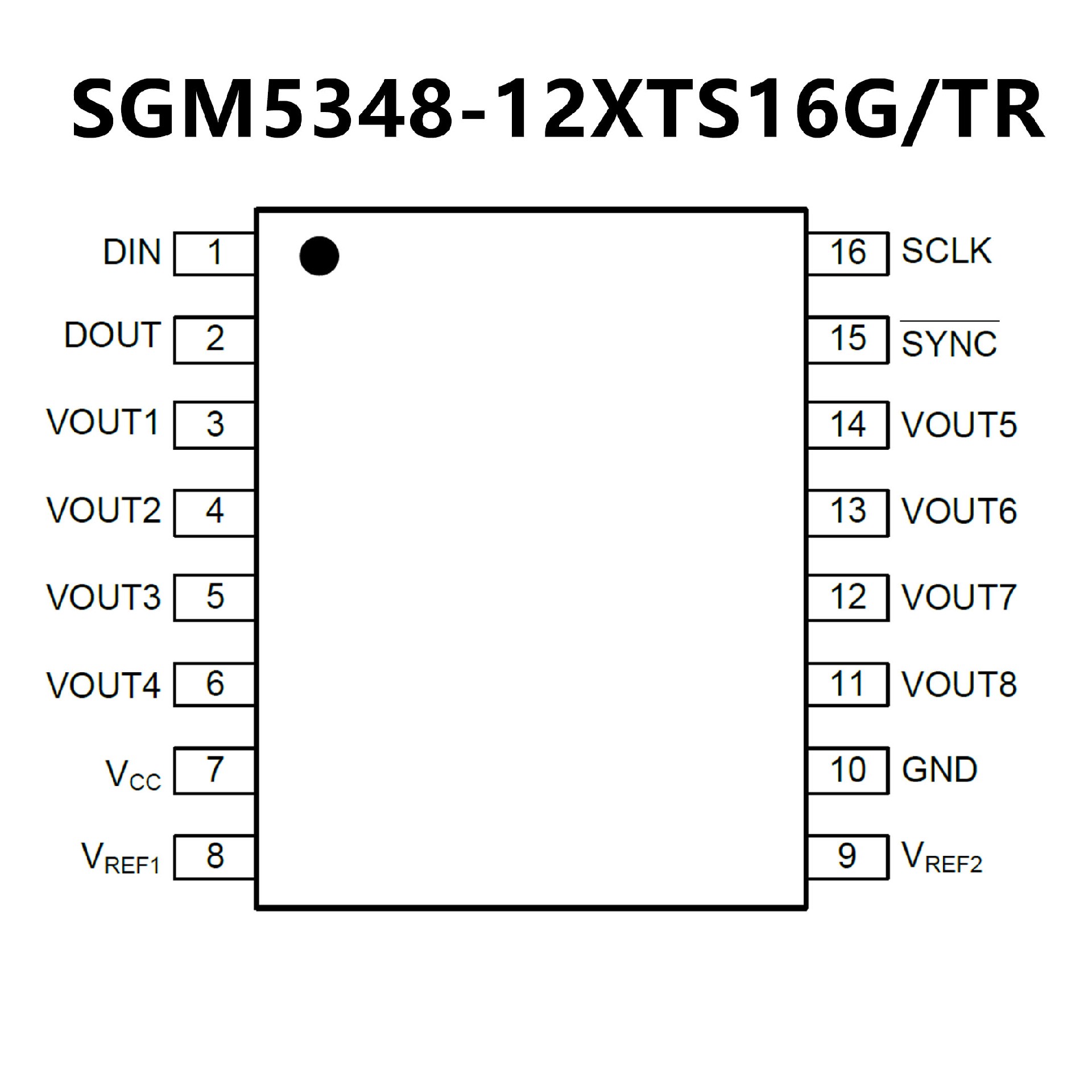

PIN CONFIGUTION
优势替代
CBM128S085TS CBM128S085TS.pdf

No.12160

FEATURES

 8 通道,TSSOP 封装,保证单调性

• 低功耗工作: 540uA @ 3V, 600µA @ 5V

 轨到轨电压输出

• 菊花链工作模式

 多通道同时输出更新

 单通道选择性休眠

 2.7V ~ 5.5V 供电范围

 两路0.5V ~ VA 参考电压

 -40℃ ~ +125℃ 工作温度范围

 上电和断电两种复位方式,复位至0V

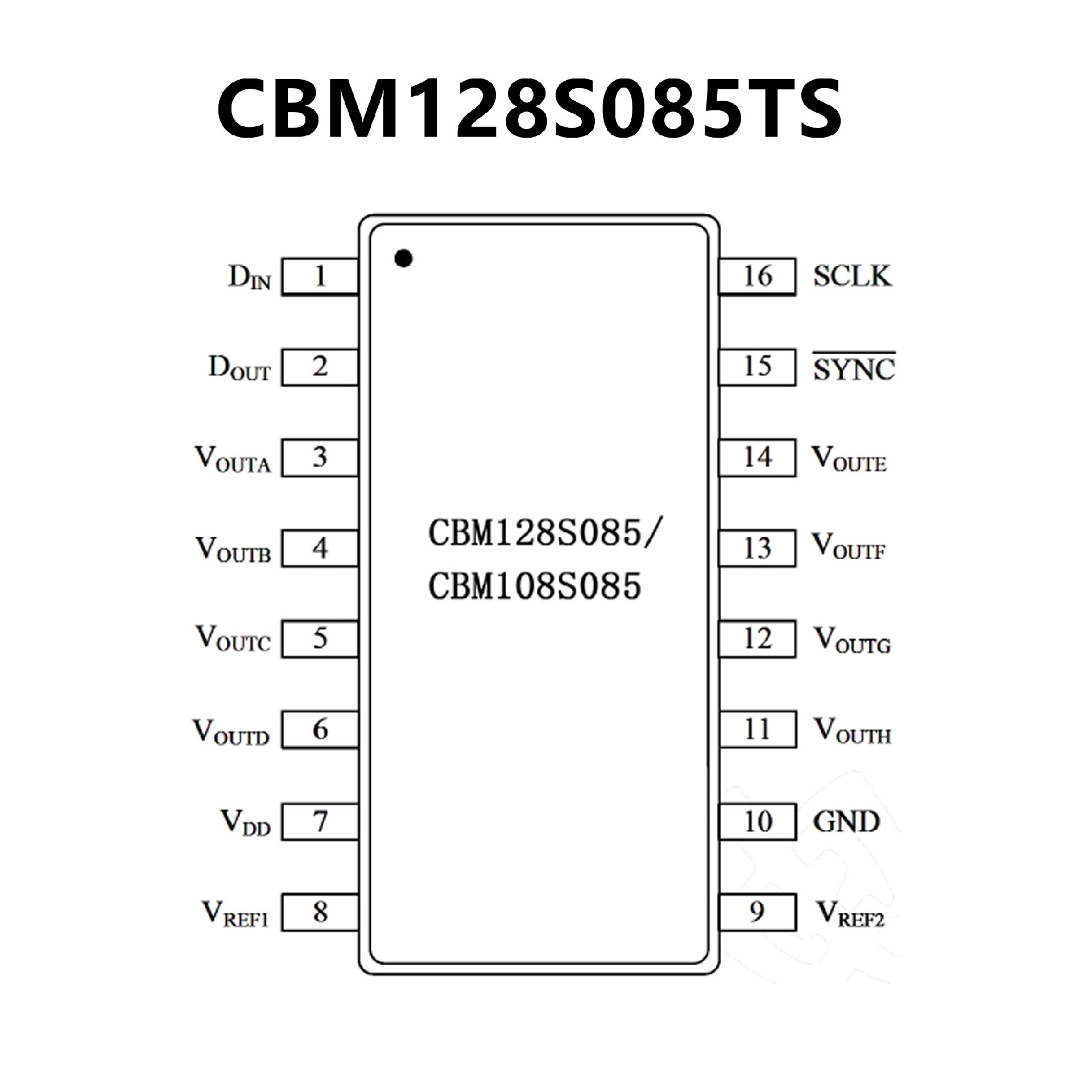

PIN CONFIGUTION
