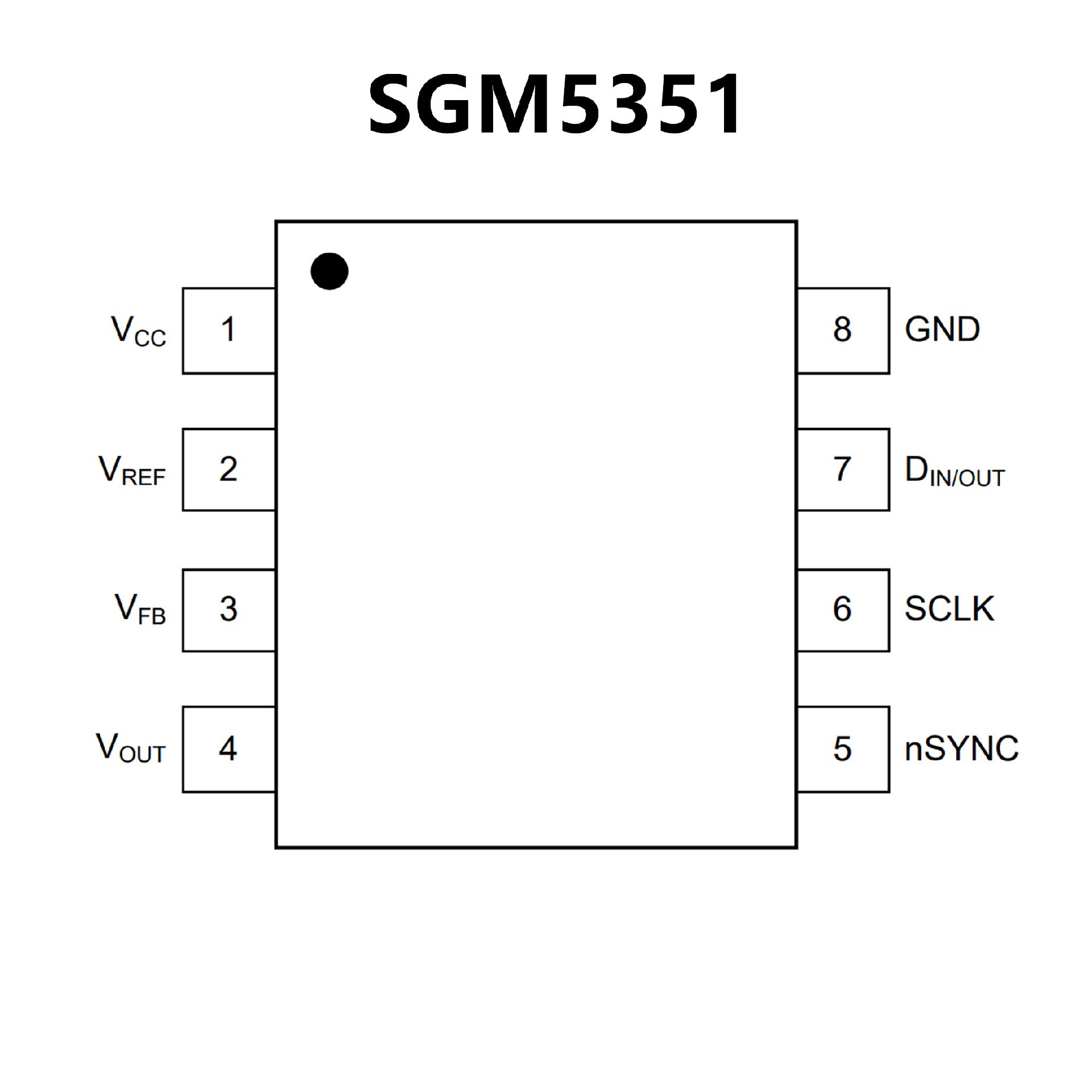

SGM5351.pdf• Power Supply Range: 2.7V to 5.5V
• 16-Bit DAC, Monotonicity Guaranteed by Design
• 6LSB (TYP) Relative Accuracy
• Low Power Operation: 100μA at 2.7V
• Power-On Reset to Zero-Scale
• 10μs (TYP) Settling Time
• 3-Wire Serial Interface with
Schmitt Trigger Logic Inputs
• Rail-to-Rail Buffered
Voltage-Output Operation
• Binary Code Input
• Power-Down Function
• nSYNC Interrupt Facility
• Available in a Green MSOP-8 Package

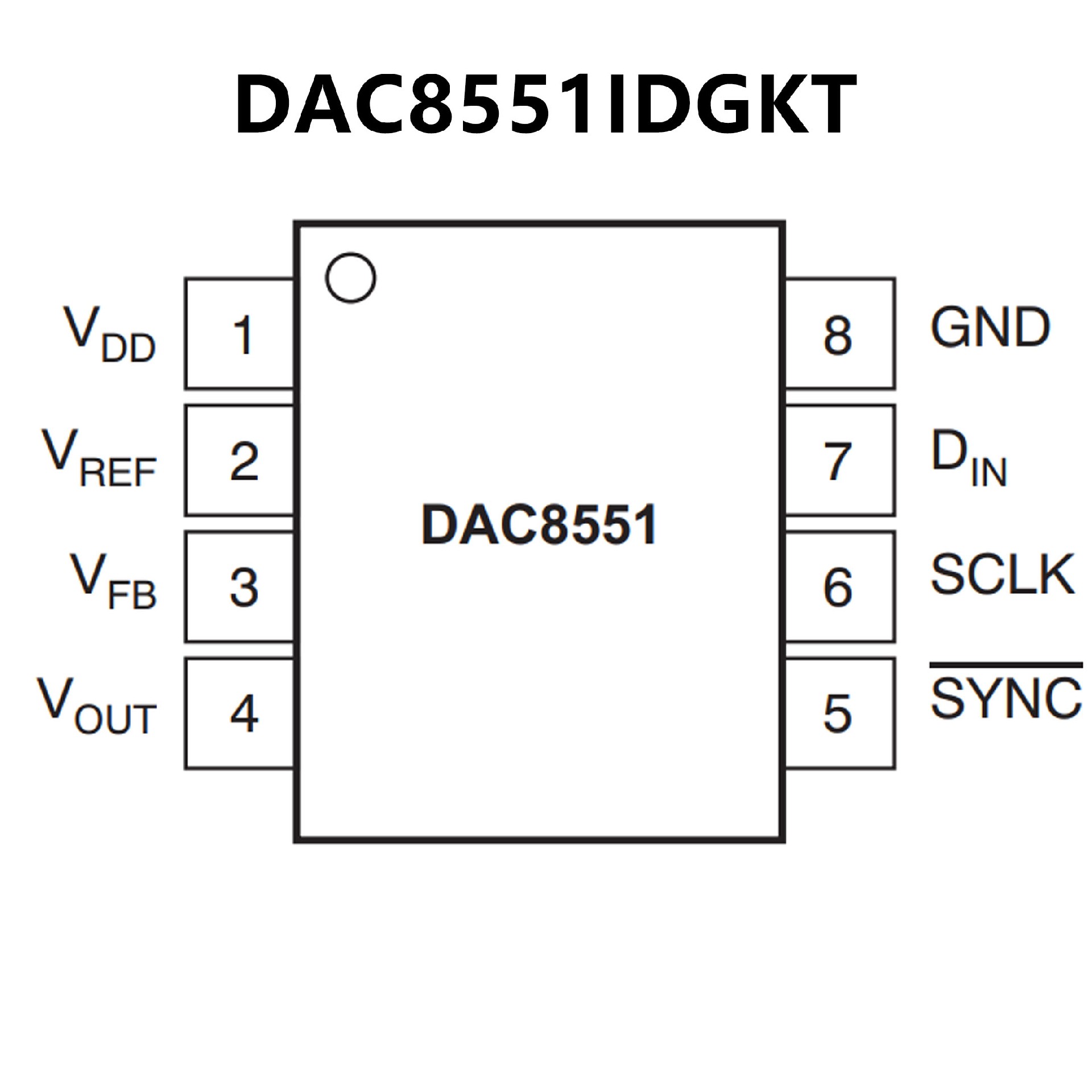

• Relative Accuracy: 8LSB
• Glitch Energy: 0.1 nV-s
• MicroPower Operation: 140 μA at 2.7 V
• Power-On Reset to Zero
• Power Supply: 2.7 V to 5.5 V
• 16-Bit Monotonic
• Settling Time: 10 μs to ±0.003% FSR
• Low-Power Serial Interface with
Schmitt-Triggered Inputs
• On-Chip Output Buffer Amplifier
with Rail-to-Rail Operation
• Power-Down Capability
• Binary Input
• SYNC Interrupt Facility
• Drop-In Compatible With DAC85x1 and
DAC8550 (2's Complement Input)
