16-Bit, 4 Channels, Voltage-Output Digital-to-Analog Converter, SGM5352-16 Replace DAC8555.
SGM5352-16
SGM5352-16.pdf
SGM5352-16.pdfFEATURES
• Power Supply Range: 2.7V to 5.5V
• 16-Bit DAC, Monotonicity Guaranteed by Design
• 6LSB (TYP) Relative Accuracy
• Low Power Operation: 0.4mA at 2.7V
• Power-On Reset to Zero-Scale
• 10μs (TYP) Settling Time
• -100dB (TYP) AC Crosstalk
• Simultaneous or Sequential Output Update and
Power-Down
• 1.8V to 5.5V Logic Interface
• Available in Green WLCSP-1.64×1.62-16B and
TSSOP-16 Packages

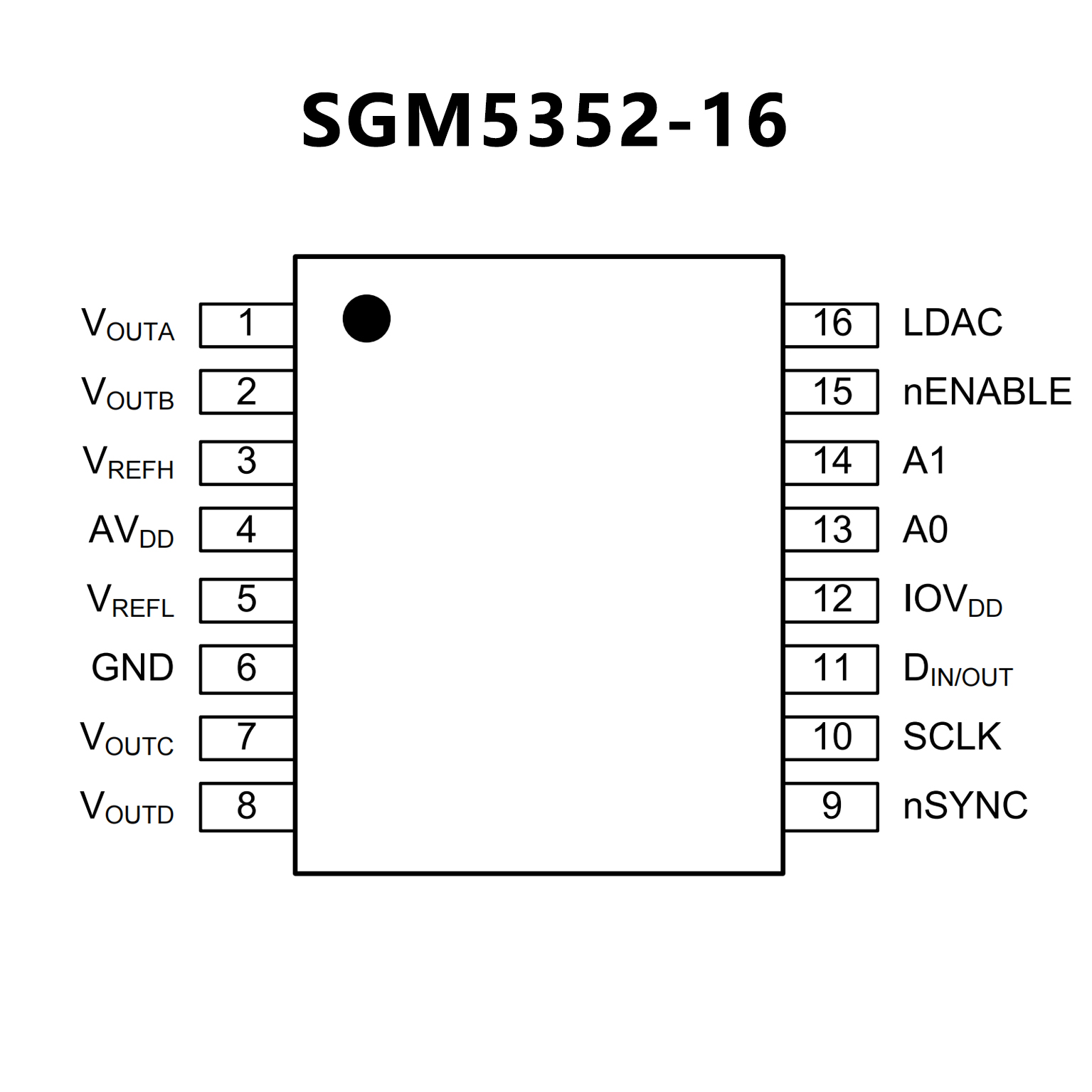

PIN CONFIGUTION
优势替代
FEATURES
• Relative Accuracy: 4LSB
• Glitch Energy: 0.15nV-s
• MicroPower Operation: 150µA per Channel at 2.7V
• Power-On Reset to Zero-Scale or Midscale
• Power Supply: +2.7V to +5.5V
• 16-Bit Monotonic Over Temperature
• Settling Time: 10µs to ±0.003% FSR
• Ultra-Low AC Crosstalk: -100dB Typ
• Low-Power SPI-Compatible Serial Interface with
Schmitt-Triggered Inputs: Up to 50MHz
• On-Chip Output Buffer Amplifier with Rail-to-Rail Operation
• Double Buffered Input Architecture
• Simultaneous or Sequential Output Update and Power-Down
• Binary and 2's Complement Capability
• Asynchronous Clear to Zero-Scale and Midscale
• 1.8V to 5.5V Logic Compatibility
• Available in a TSSOP-16 Package

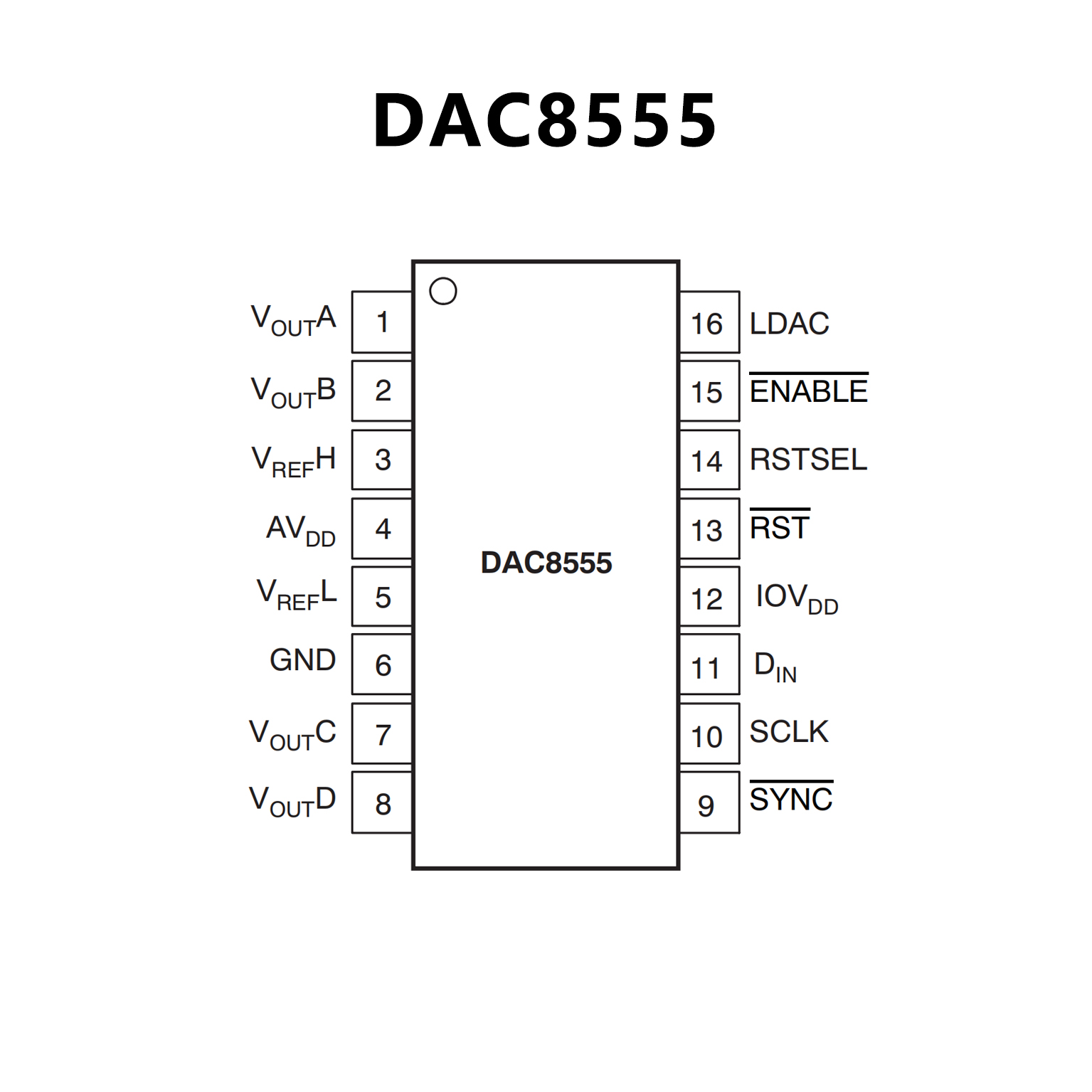

PIN CONFIGUTION
