2.7V to 5.5V, 450μA, Rail-to-Rail Output, Quad, 12-/16-Bit nanoDACs, SGM5352 Replace AD5624.
SGM5352
SGM5352.pdf
SGM5352.pdfFEATURES
• Power Supply Range: 2.7V to 5.5V
• 16-Bit DAC, Monotonicity Guaranteed by Design
• 6LSB (TYP) Relative Accuracy
• Low Power Operation: 0.4mA at 2.7V
• Power-On Reset to Zero-Scale
• 10μs (TYP) Settling Time
• -100dB (TYP) AC Crosstalk
• Simultaneous or Sequential Output Update and
Power-Down
• 1.8V to 5.5V Logic Interface
• Available in Green WLCSP-1.64×1.62-16B and
TSSOP-16 Packages
PIN CONFIGUTION
优势替代
FEATURES
• Low power, quad nanoDACs
AD5664: 16 bits
AD5624: 12 bits
• Relative accuracy: ±12 LSBs max
• Guaranteed monotonic by design
• 10-lead MSOP and 3 mm × 3 mm LFCSP_WD
• 2.7 V to 5.5 V power supply
• Power-on reset to zero
• Per channel power-down
• Serial interface, up to 50 MHz

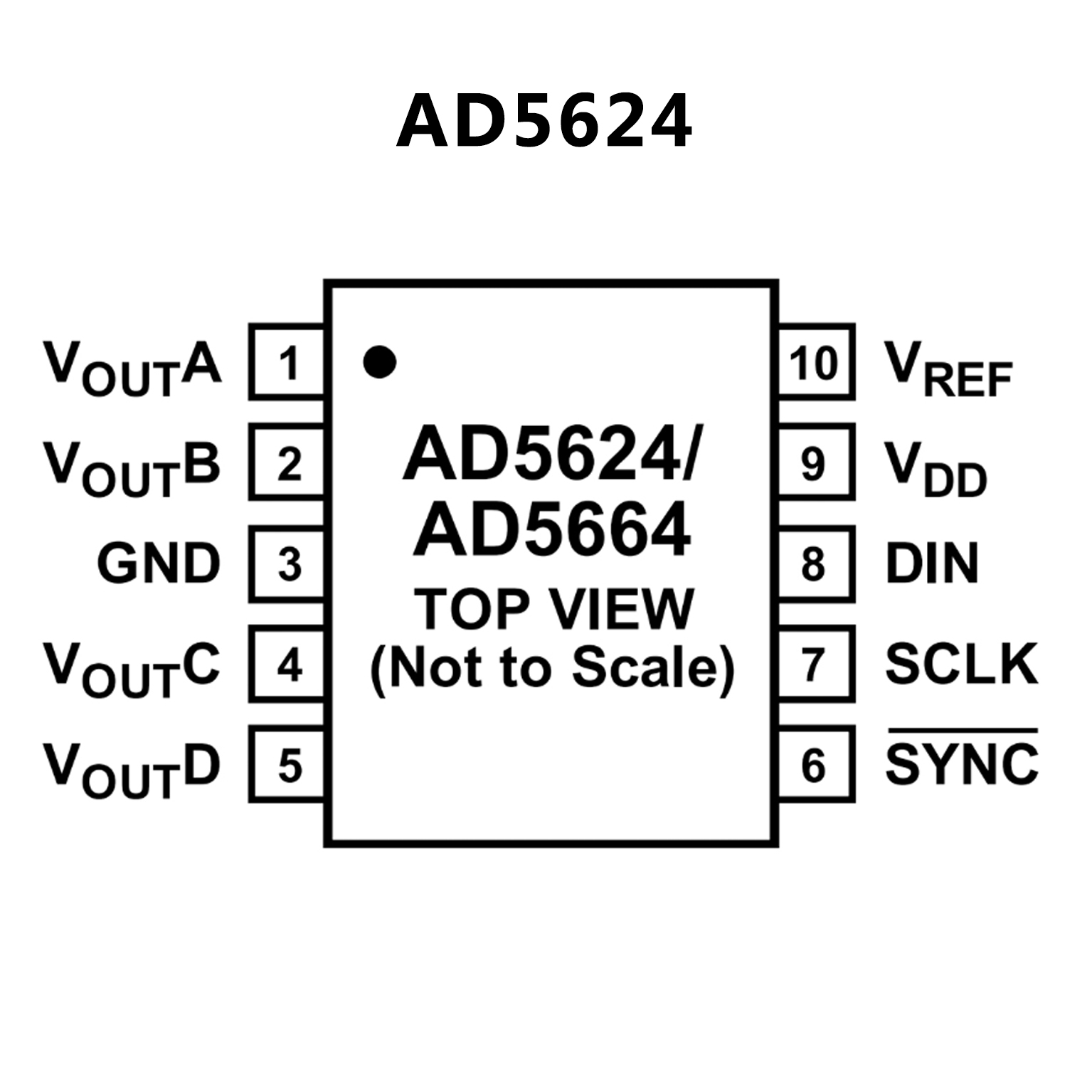

PIN CONFIGUTION
