16-Bit, 4 Channels, Voltage-Output Digital-to-Analog Converter, SGM5352 Replace DAC8554.
SGM5352-16
SGM5352-16.pdf
SGM5352-16.pdfFEATURES
• Power Supply Range: 2.7V to 5.5V
• 16-Bit DAC, Monotonicity Guaranteed by Design
• 6LSB (TYP) Relative Accuracy
• Low Power Operation: 0.4mA at 2.7V
• Power-On Reset to Zero-Scale
• 10μs (TYP) Settling Time
• -100dB (TYP) AC Crosstalk
• Simultaneous or Sequential Output Update and
Power-Down
• 1.8V to 5.5V Logic Interface
• Available in Green WLCSP-1.64×1.62-16B and
TSSOP-16 Packages

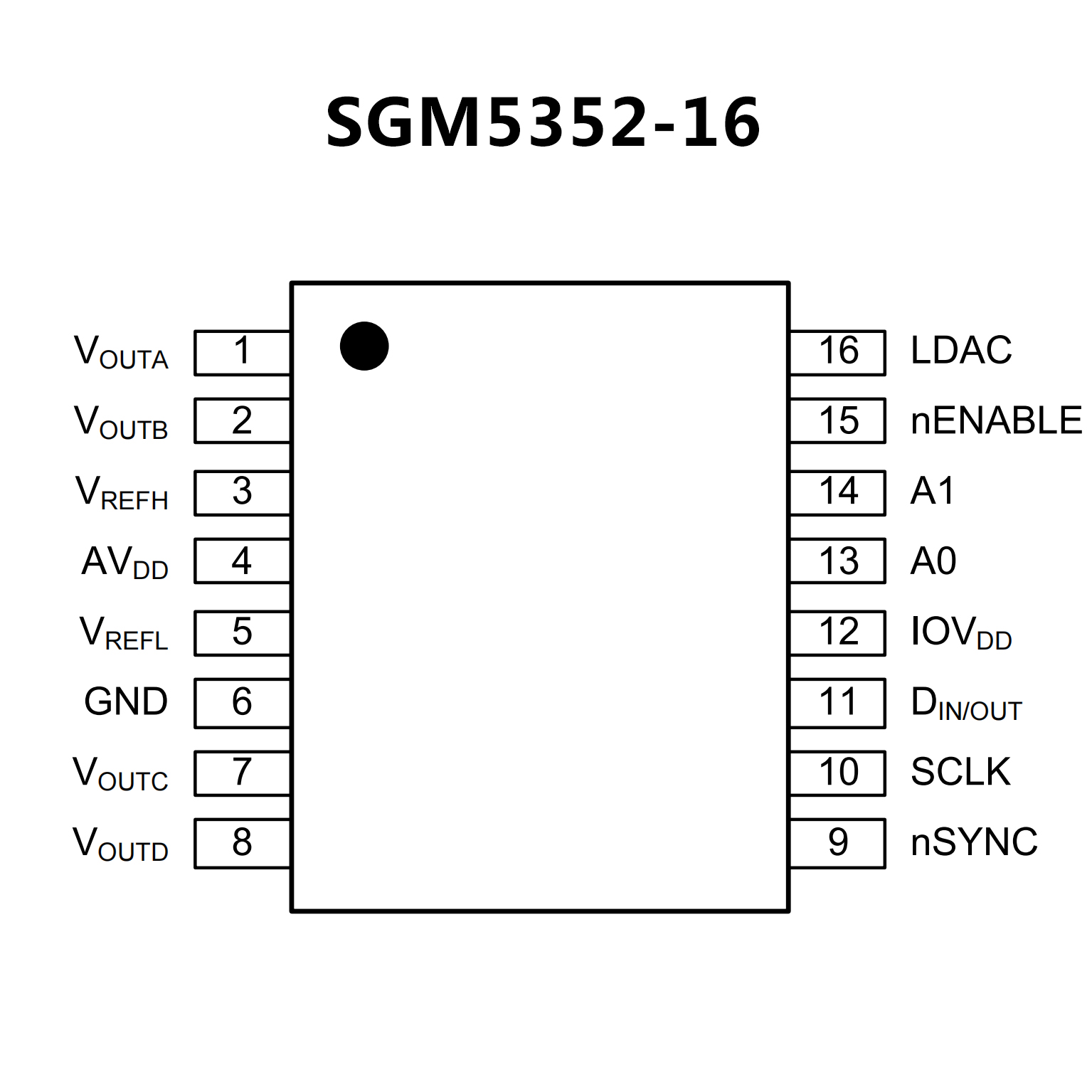

PIN CONFIGUTION
优势替代
FEATURES
• Relative Accuracy: 4LSB
• Glitch Energy: 0.15nV-s
• MicroPower Operation:
150µA per channel at 2.7V
• Power-On Reset to Zero-Scale
• Power Supply: +2.7V to +5.5V
• 16-Bit Monotonic Over Temperature
• Settling Time: 10µs to ±0.003% FSR
• Ultra-Low AC Crosstalk: –100dB Typ
• Low Power SPI™ Compatible Serial Interface
with Schmitt-Triggered Inputs: Up to 50MHz
• On-Chip Output Buffer Amplifier with
Rail-to-Rail Operation
• Double Buffered Input Architecture
• Simultaneous or Sequential Output Update
and Power-Down
• 16-Channel Broadcast Capability
• 1.8V to 5.5V Logic Compatibility
• Available in a TSSOP-16 Package

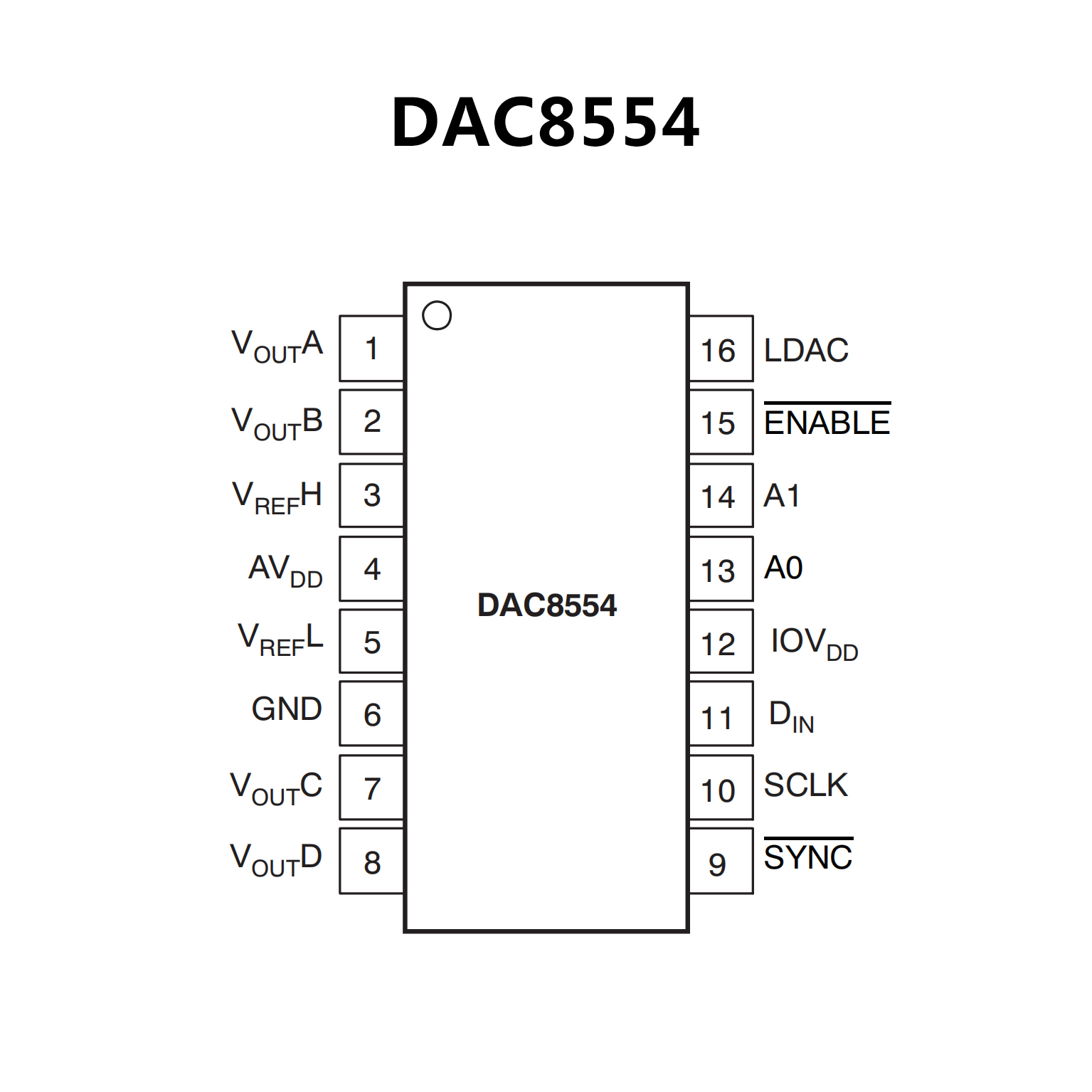

PIN CONFIGUTION
