16-Bit, Serial Input, Voltage-Output Digital-to-Analog Converter, SGM5353 Replace AD5541.
SGM5353-16
SGM5353-16.pdf
SGM5353-16.pdfFEATURES
• 16-Bit DAC, Monotonicity Guaranteed by Design
• Single-Supply Operation: 3V and 5V
• Settling Time: 1.5μs (TYP)
• Support Unbuffered Voltage-Output Capability
• Power-On Reset to Zero-Scale
• Low Power Consumption: 0.39mW (TYP)
• Low Glitch Impulse: 1.2nV-s
• SPI-Compatible Serial Interface
• Available in a Green SOIC-8 Package

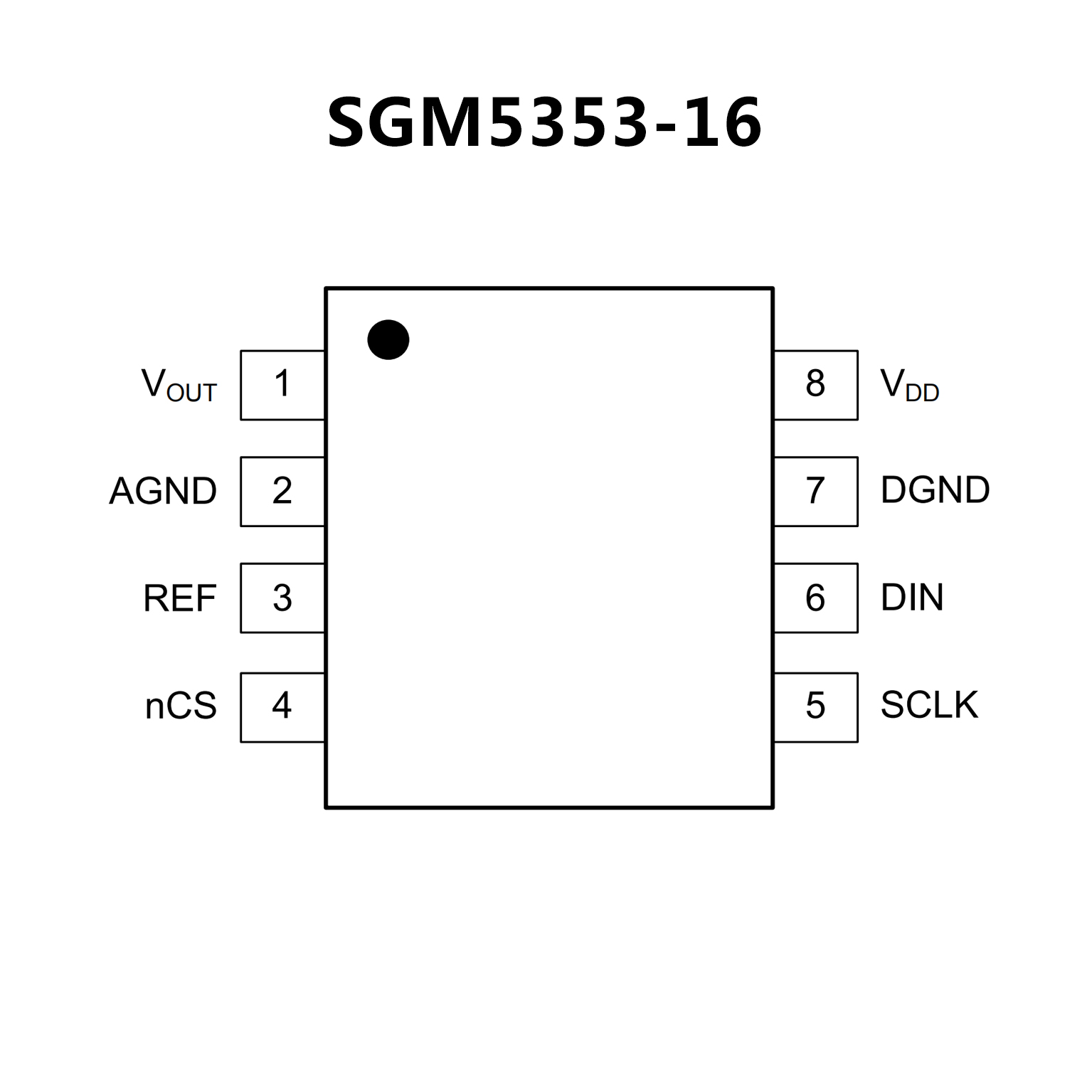

PIN CONFIGUTION
优势替代
FEATURES
• Full 16-bit performance
• 3V and 5 V single-supply operation
• Low 0.625 mW power dissipation
• 1µs settling time
• Unbuffered voltage output capable of driving 60 kΩ
• loads directly
• SPI-/QSPI-/MICROWIRE-compatible interface standards
• Power-on reset clears DAC output to 0 V (unipolar mode)
• 5 kV HBM ESD classification
• Low glitch: 1.1 nV-sec

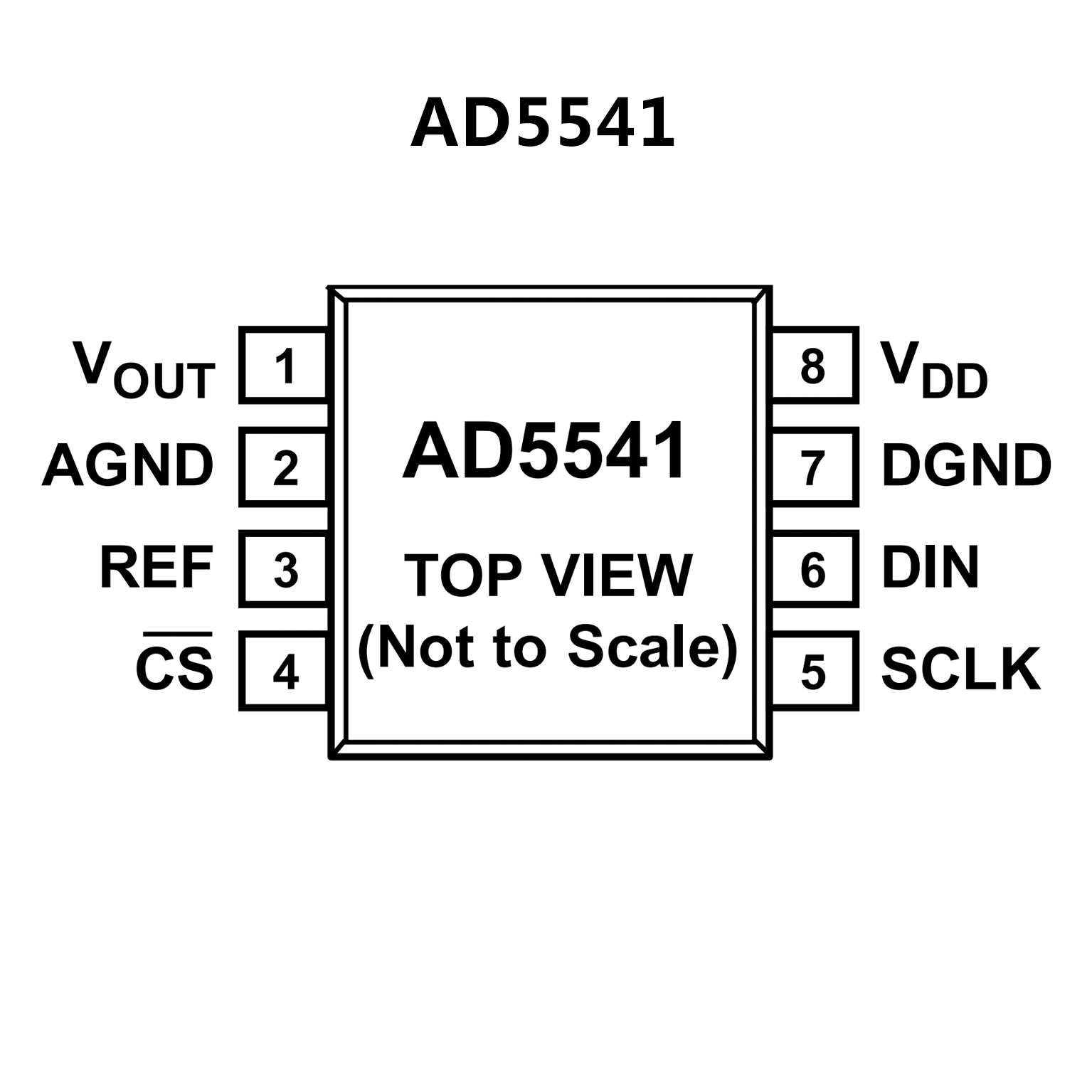

PIN CONFIGUTION
