16 Bit, Ultra Low Power, Voltage Output Digital to Analog Converters, SGM5353 Replace DAC8830.
SGM5353
SGM5353.pdf
SGM5353.pdfFEATURES
• 16-Bit DAC, Monotonicity Guaranteed by Design
• Single-Supply Operation: 3V and 5V
• Settling Time: 1.5μs (TYP)
• Support Unbuffered Voltage-Output Capability
• Power-On Reset to Zero-Scale
• Low Power Consumption: 0.39mW (TYP)
• Low Glitch Impulse: 1.2nV-s
• SPI-Compatible Serial Interface
• Available in a Green SOIC-8 Package

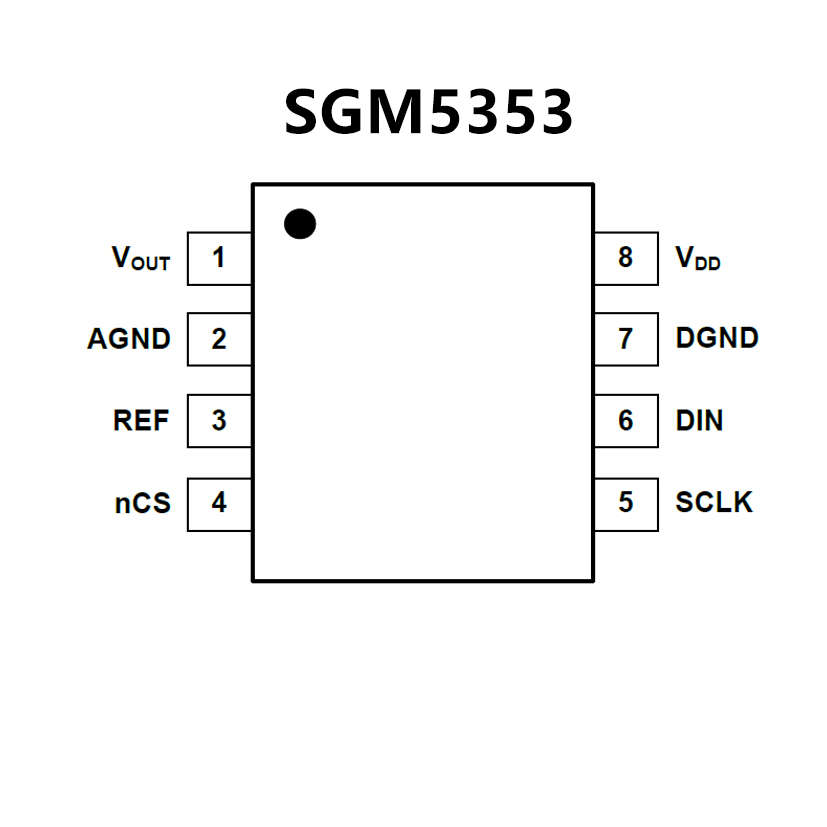

PIN CONFIGUTION
优势替代
FEATURES
• 16-Bit Resolution
• 2.7 V to 5.5 V Single-Supply Operation
• Very Low Power: 15 μW for 3 V Power
• High Accuracy, INL: 1 LSB
• Low Noise: 10 nV/√Hz
• Fast Settling: 1.0 μS
• Fast SPI™ Interface, up to 50 MHz
• Reset to Zero-Code
• Schmitt-Trigger Inputs for Direct Optocoupler Interface
• Industry-Standard Pin Configuration

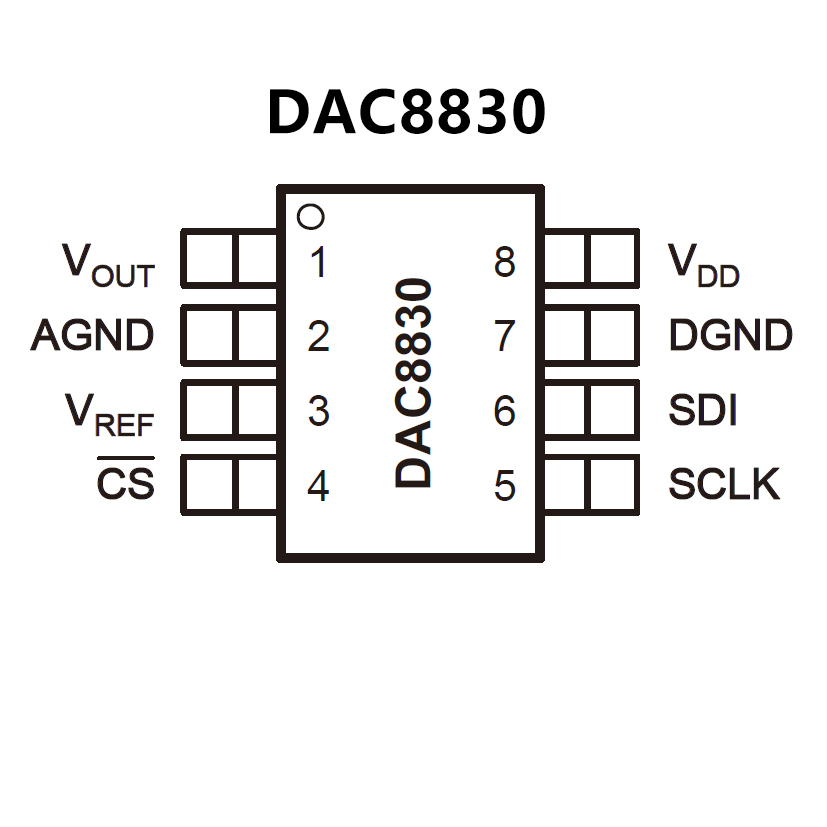

PIN CONFIGUTION
