16-Bit, I2C Interface, Voltage-Output Digital-to-Analog Converter, SGM5355-16 Replace DAC8571.
SGM5355-16
SGM5355-16.pdf
SGM5355-16.pdfFEATURES
• Power Supply Range: 2.7V to 5.5V
• 16-Bit DAC, Monotonicity Guaranteed by Design
• 6LSB (TYP) Relative Accuracy
• Low Power Operation: 100μA (TYP) at 2.7V
• Power-On Reset to Zero-Scale
• 10μs (TYP) Settling Time
• I2C Serial Interface
• Rail-to-Rail Buffered Voltage-Output Operation
• Binary Code Input
• Power-Down Function
• Available in Green WLCSP-0.82×1.22-6B and
MSOP-8 Packages

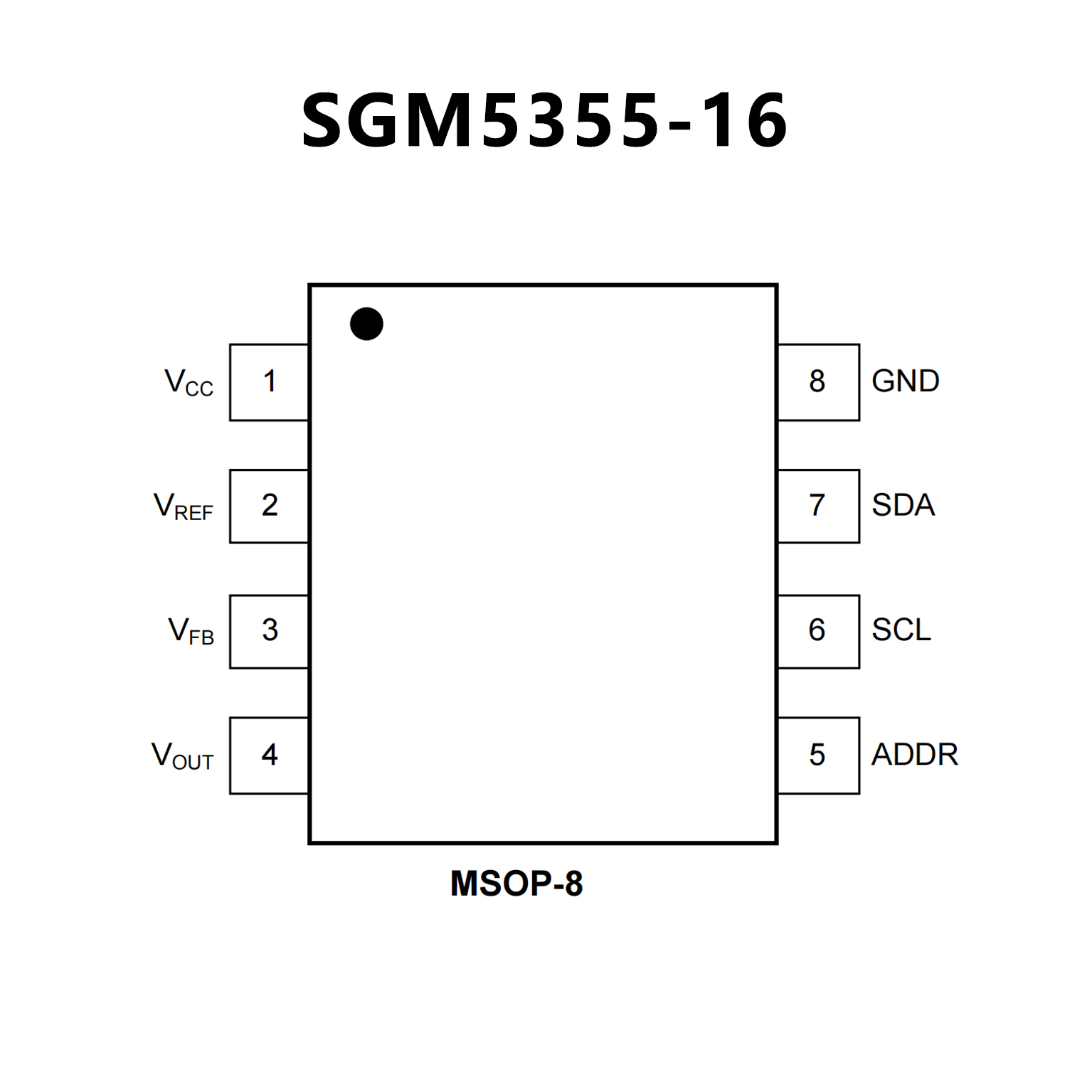

PIN CONFIGUTION
优势替代
FEATURES
• Micropower Operation: 160 µA @ 5 V
• Power-On Reset to Zero
• Single Supply: +2.7 V to +5.5 V
• 16-Bit Monotonic
• Settling Time: 10 µs to ±0.003% FSR
• I2C™ Interface With High-Speed Mode
• Supports Data Receive and Transmit
• On-Chip Rail-to-Rail Output Buffer
• Double-Buffered Input Register
• Supports Synchronous Multichannel Update
• Offset Error: ±1 mV max at 25&Deg;C
• Full-Scale Error: ±3 mV max at 25°C
• Small 8 Lead MSOP Package

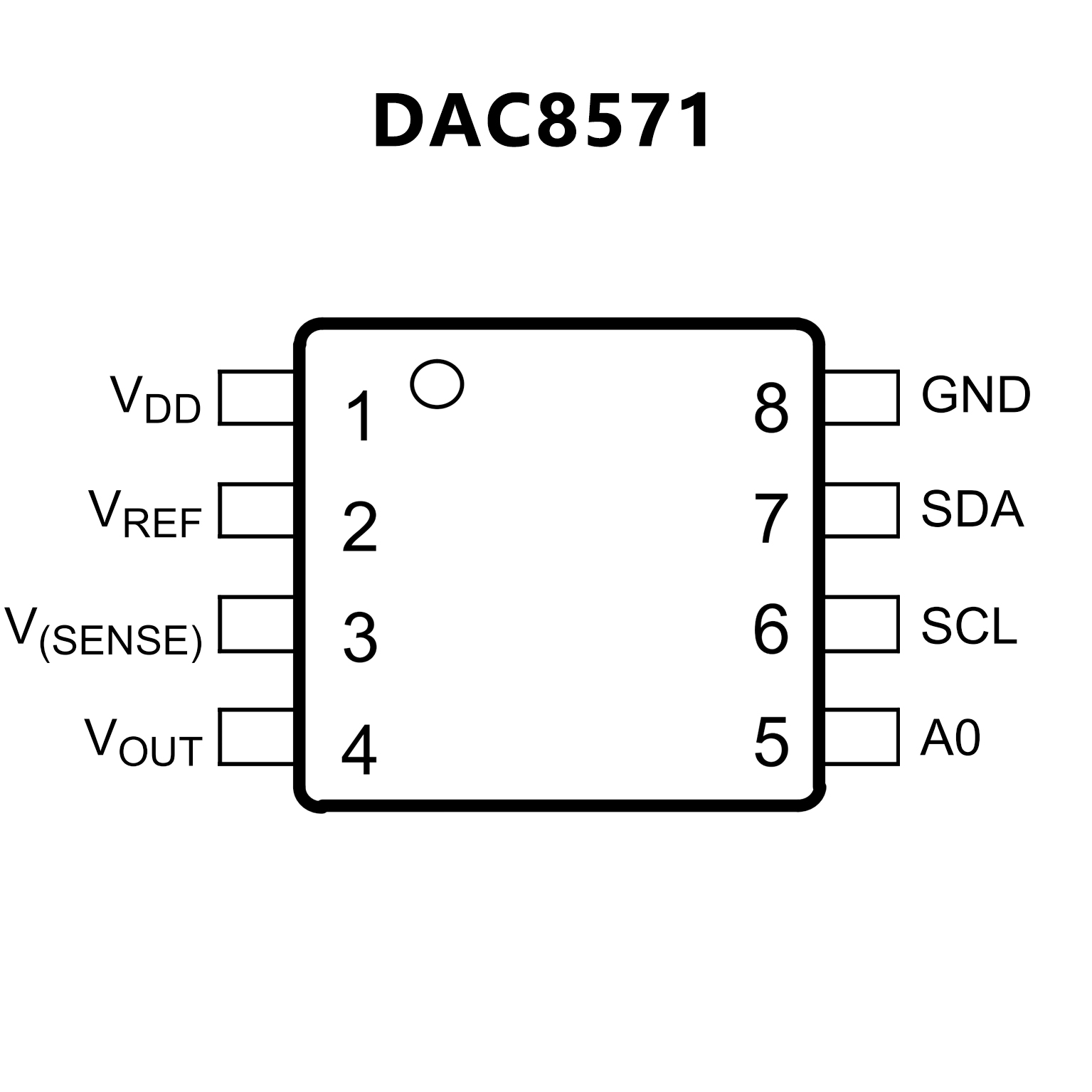

PIN CONFIGUTION
