Dual Low Noise Operational Amplifier, SGM5532 Replace MC4558.
SGM5532
SGM5532.pdf
SGM5532.pdfFEATURES
• Ultra-Low Input Voltage Noise:
5nV/√Hz (TYP) at 1kHz
• Unity-Gain Bandwidth: 8.5MHz (TYP)
• High Slew Rate: 18V/μs (TYP)
• CMRR: 140dB (TYP)
• High Open-Loop Gain: 140dB (TYP)
• -40℃ to +85℃ Operating Temperature Range
• Available in a Green SOIC-8 Package

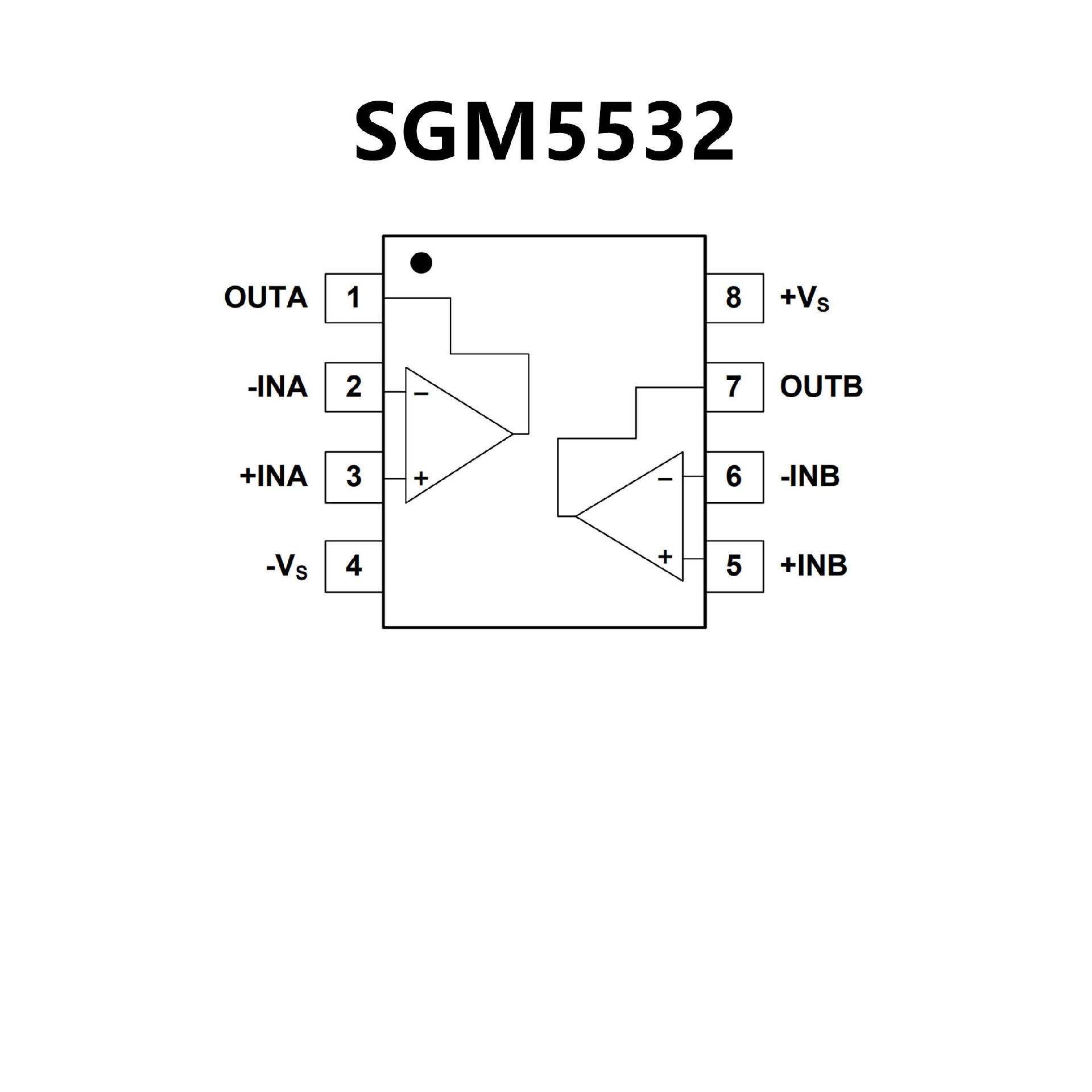

PIN CONFIGUTION
优势替代
FEATURES
• Internally compensated
• Short-circuit protection
• Gain and phase match between amplifier
• Low power consumption
• Pin-to-pin compatible with MC1458/LM358
• Gain bandwidth (at 100 kHz): 5.5 MHz

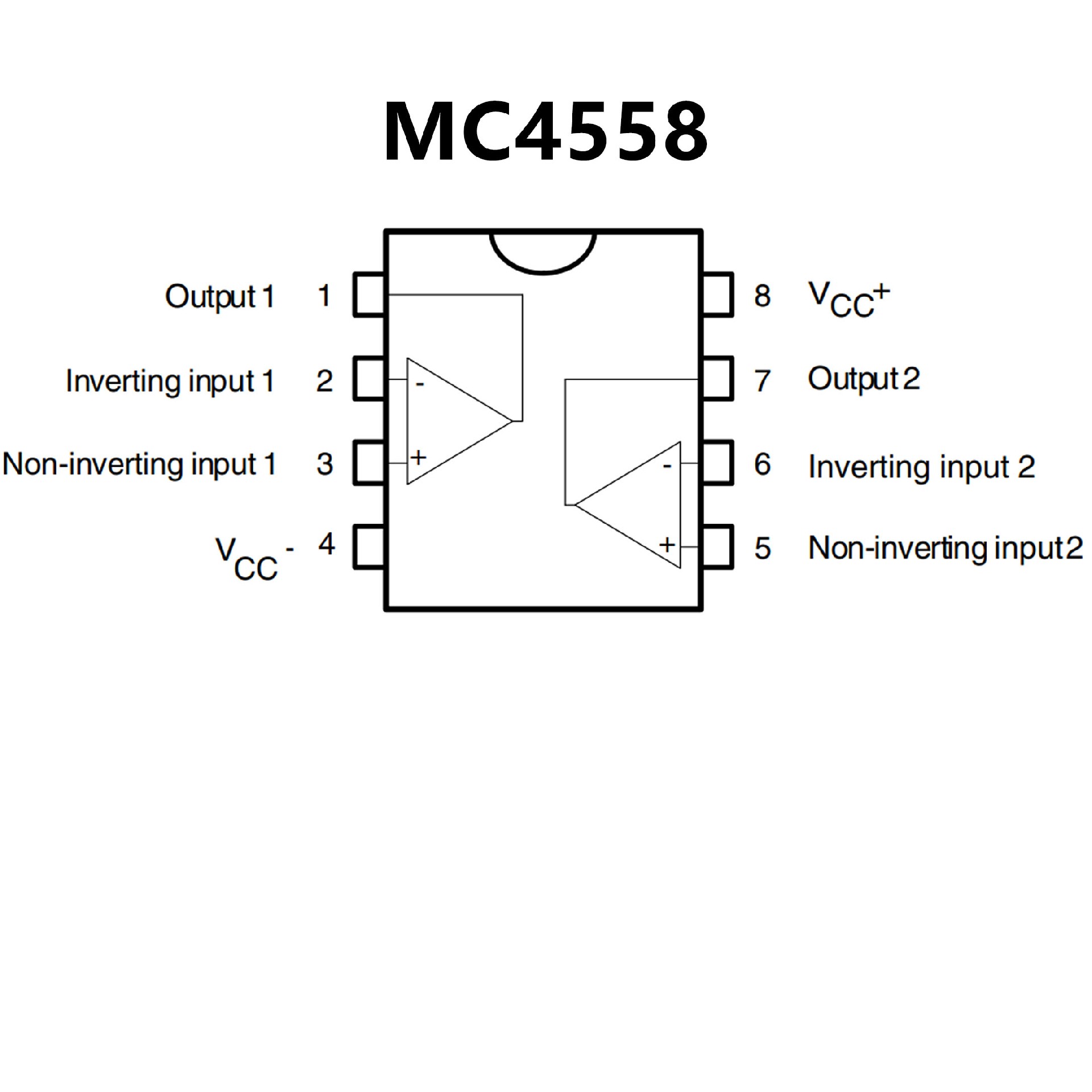

PIN CONFIGUTION
