Dual Low-Noise Operational Amplifier,SGM5532 Replace NJM2115.
SGM5532
SGM5532.pdf
SGM5532.pdfFEATURES
• Equivalent Input Noise Voltage:
5nV/ Hz (TYP) at 1kHz
• Unity-Gain Bandwidth: 8.5MHz (TYP)
• Common Mode Rejection Ratio: 140dB (TYP)
• High DC Voltage Gain: 140dB (TYP)
• High Slew Rate: 18V/μs (TYP)
• -40℃ to +85℃ Operating Temperature Range
• Available in a Green SOIC-8 Package

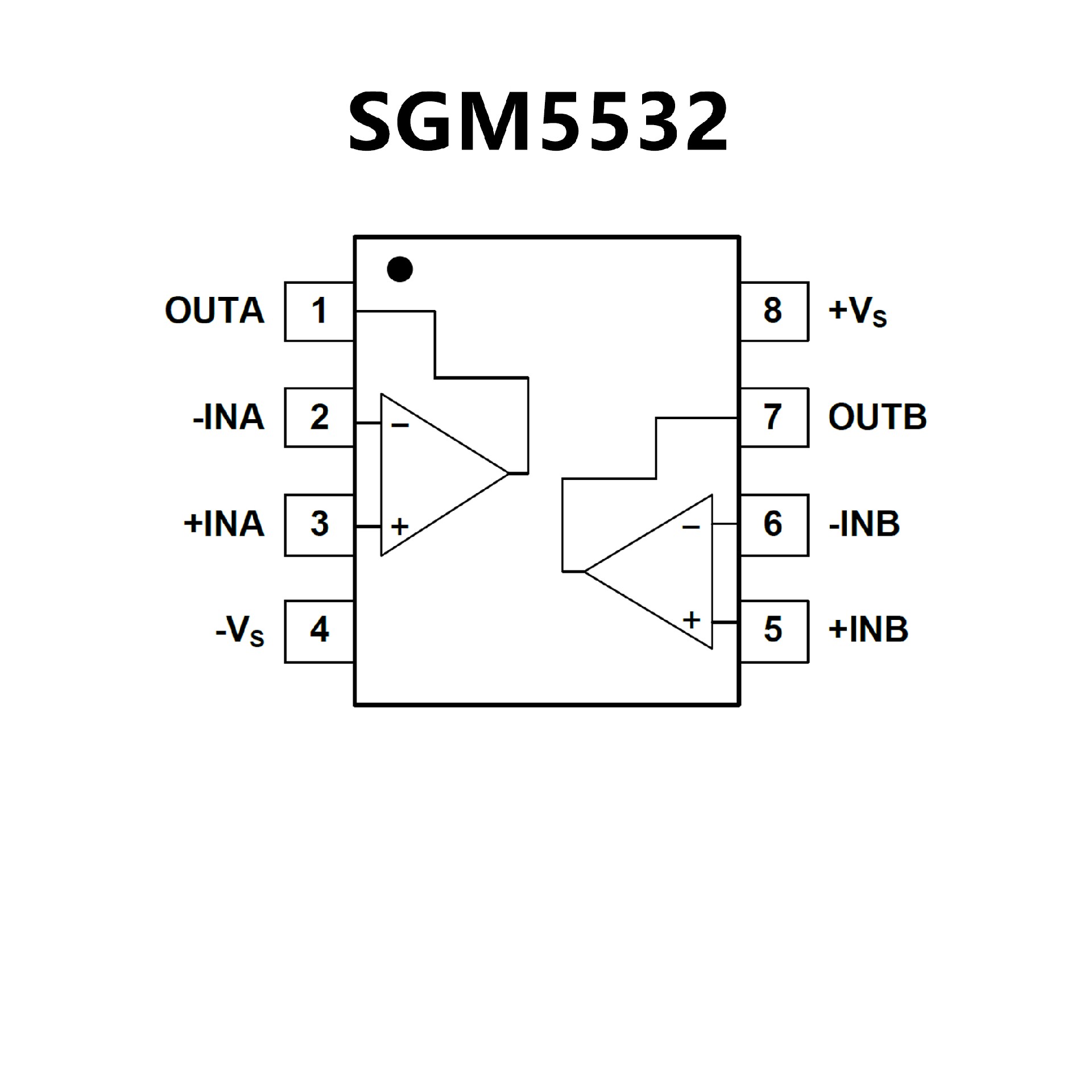

PIN CONFIGUTION
优势替代
FEATURES
• Operating Voltage ( ±1V~±7V )
• Low Saturation Output Voltage
( ±2.0VP-P @ V+=±2.5V )
• Slew Rate ( 4V/μs typ. )
• Unity Gain Bandwidth ( 12MHz typ. )
• Package Outline DIP8,DMP8,SIP8,SSOP8,
MSOP8(TVSP8)MEET JEDEC MO-187-DA / THINTYPE
• Bipolar Technology

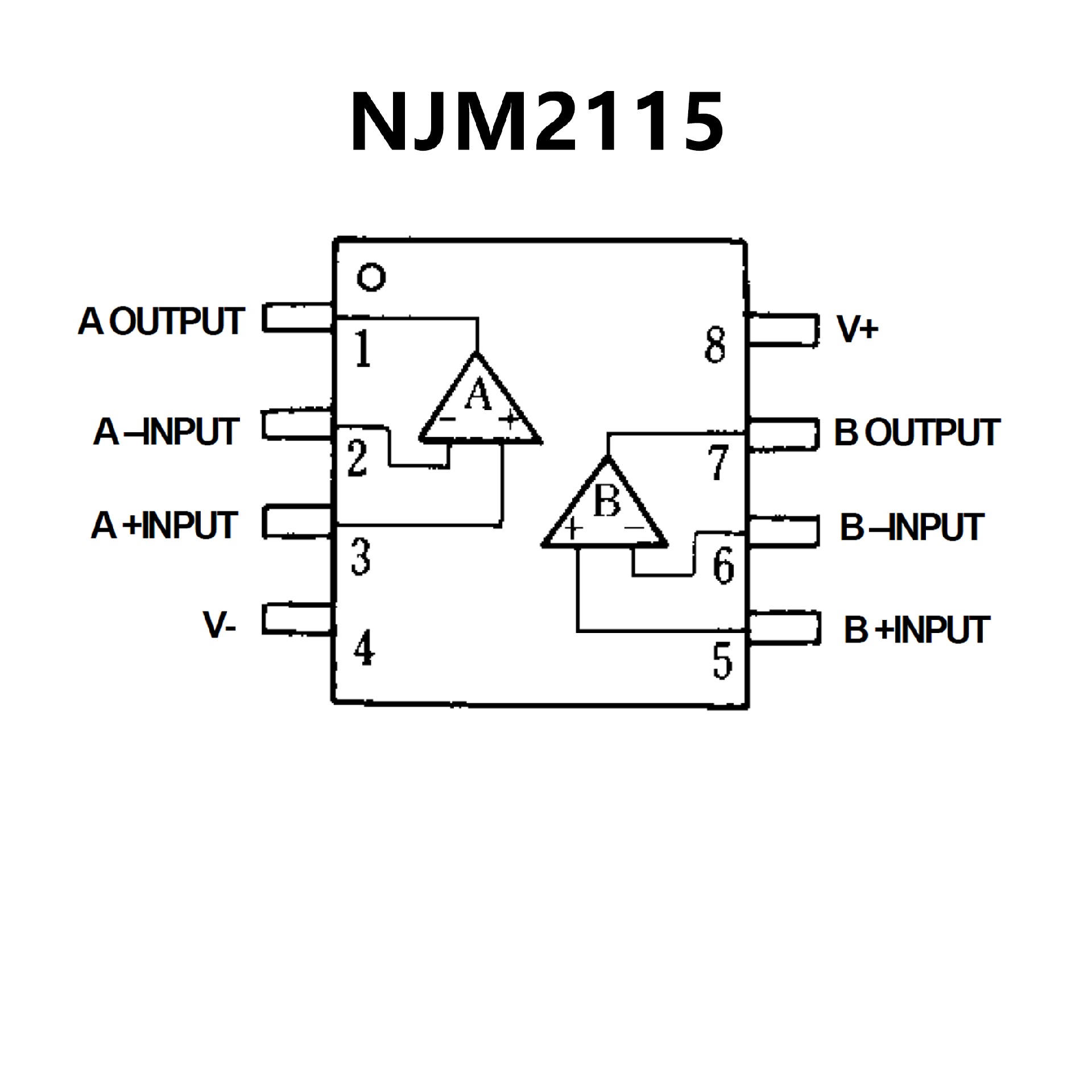

PIN CONFIGUTION
