Ultra-Small, Low-Power, 16-Bit Analog-to-Digital Converter with Internal, SGM58031 P2P ADS1113.
FEATURES

 Wide Power Supply Range: 3V to 5.5V

  - I2C Bus Voltage: 3V to 5.5V
 Low Current Consumption:
  Continuous Mode: 255μA (TYP)
  Power-Down Mode: 0.8μA (TYP)
 Programmable Date Rate: 6.25SPS to 960SPS
 Internal Low-Drift Voltage Reference
 Internal Oscillator
 Internal PGA
 I2C Interface: Pin-Selectable Addresses
 Four Single-Ended or Two Differential Inputs
 Programmable Comparator
 Available in Green MSOP-10 and TDFN-3×3-10L
  Packages

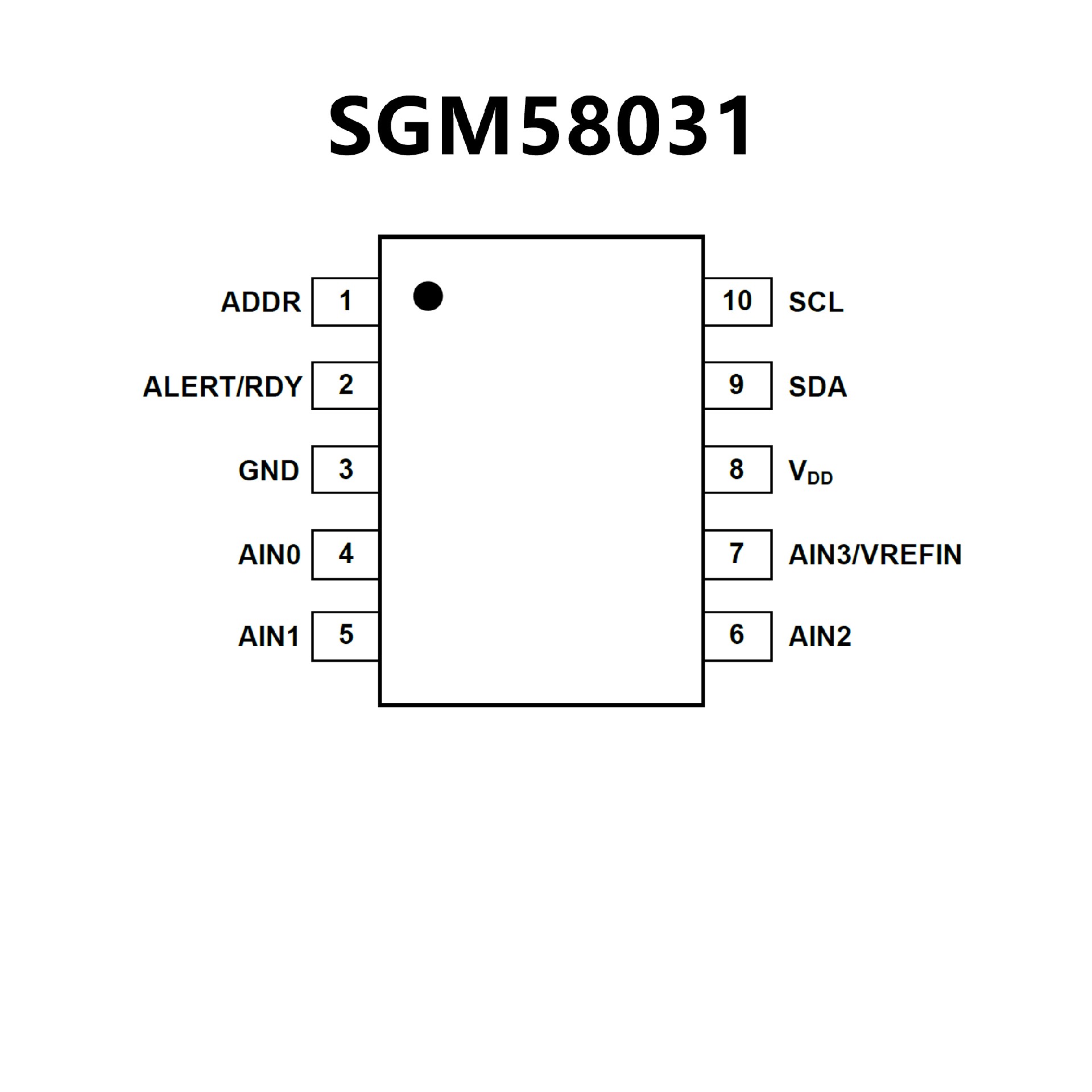

PIN CONFIGUTION
优势替代
ADS1113 ADS1113.pdf

No.10029

FEATURES

 ULTRA-SMALL QFN PACKAGE:

 2mm × 1,5mm × 0,4mm
 WIDE SUPPLY RANGE: 2.0V to 5.5V
 LOW CURRENT CONSUMPTION:
  Continuous Mode: Only 150μA
  Single-Shot Mode: Auto Shut-Down
 PROGRAMMABLE DATA RATE: 8SPS to 860SPS
 INTERNAL LOW-DRIFT VOLTAGE REFERENCE
 INTERNAL OSCILLATOR
 INTERNAL PGA
 I2C ™ INTERFACE: Pin-Selectable Addresses

 OPERATING TEMPERATURE: –40°C to +140°C

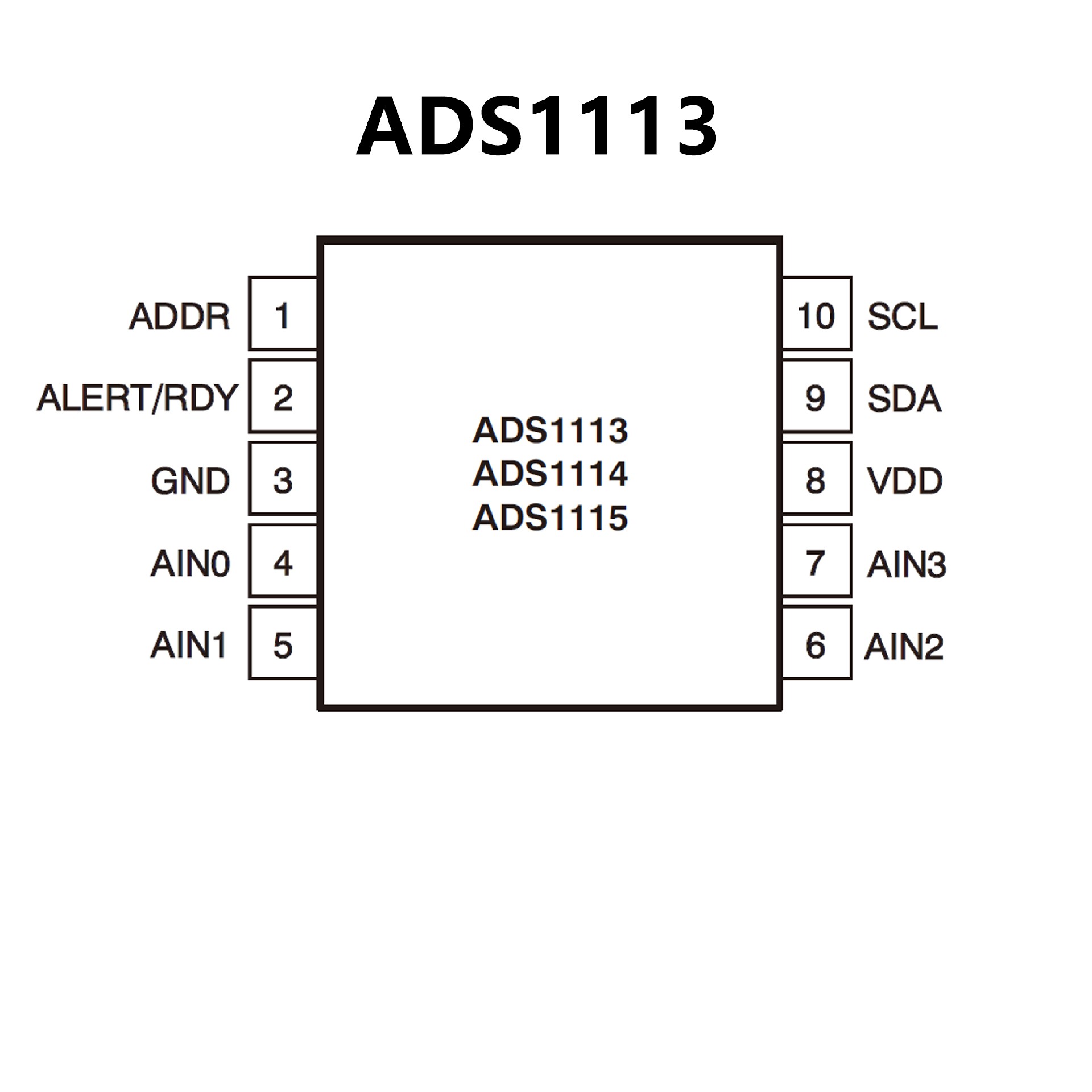

PIN CONFIGUTION
