• High Efficiency: Up to 95%

• Low RDS(ON) Internal Switches: 120mΩ

• Programmable Frequency: 300kHz to 2MHz

• 3A Output Current

• Input Voltage Range: 3V to 5.5V

• 0.8V Reference Allows Low Output Voltages

• Less than 1μA Shutdown Current

• 100% Duty Cycle for Lowest Dropout

• Forced Continuous PWM Mode Operation

• No External Power MOSFETs and

  Schottky Diode Required

• Excellent Line Regulation and Load Transient

  Response

• -40℃ to +85℃ Operating Temperature Range

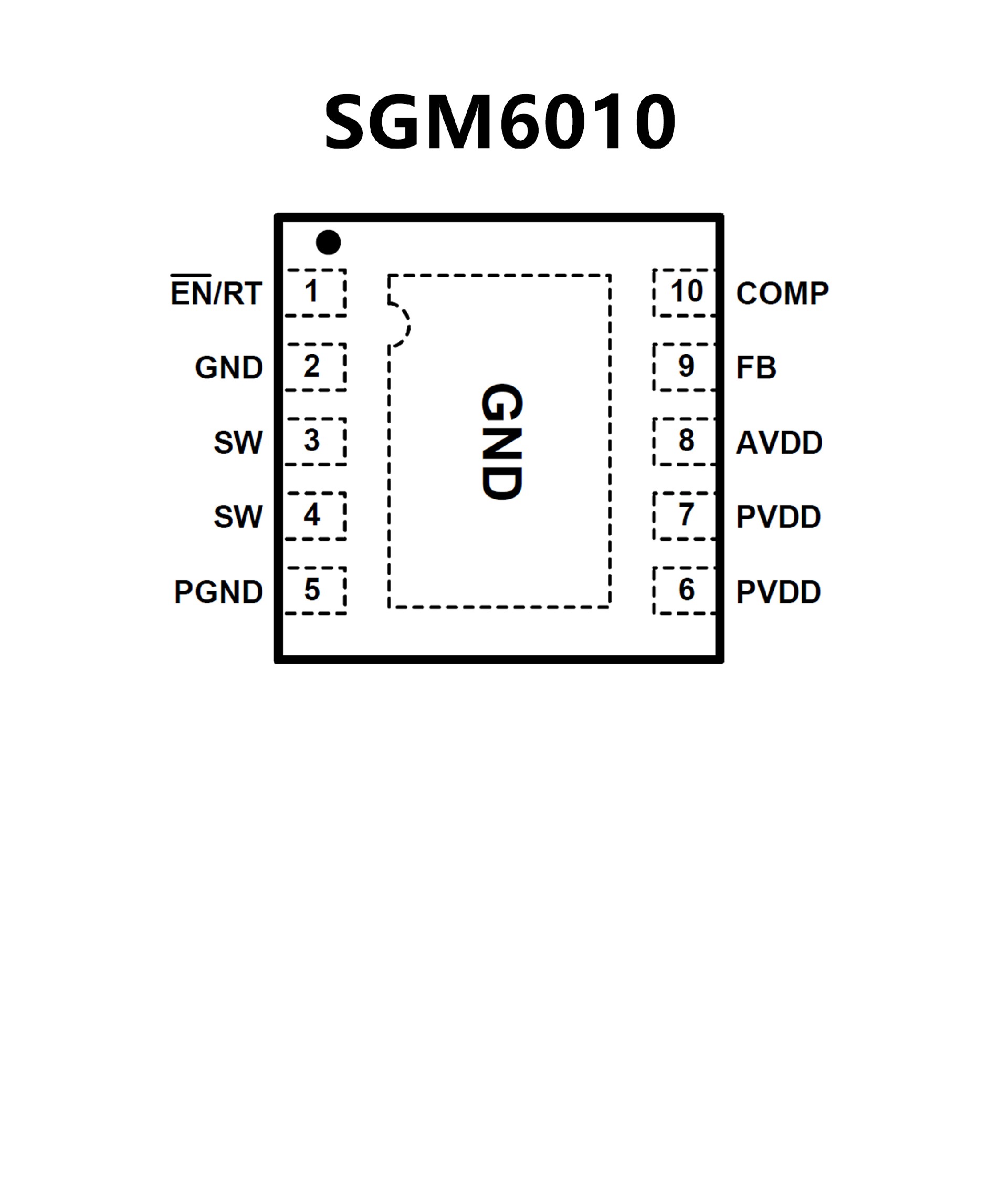

• Available in Green TDFN-3×3-10L Package
