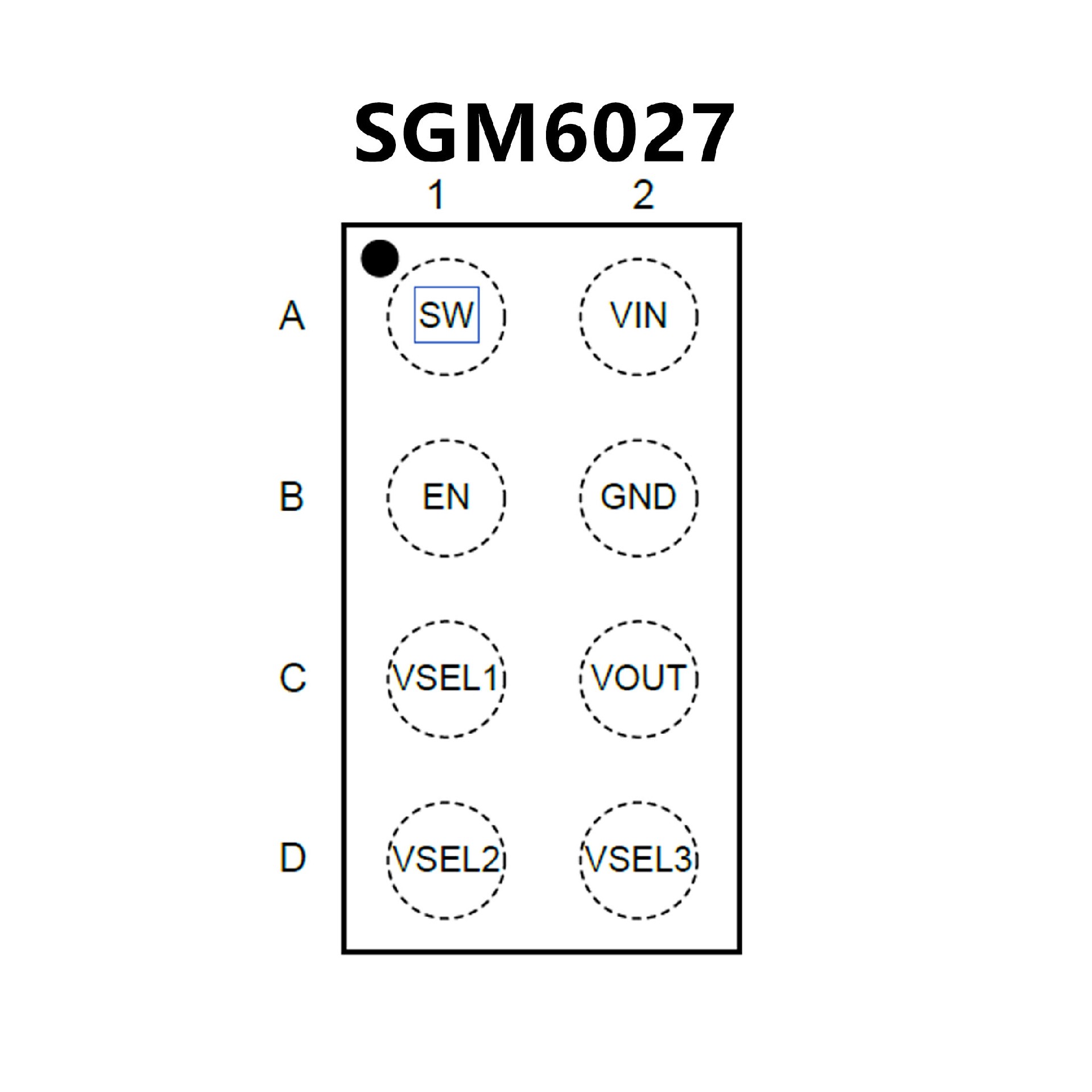

SGM6027.pdf• Input Voltage Range: 2.5V to 5.5V
• 8 Selectable Output Voltage Levels
SGM6027: 1.2V to 3.3V
SGM6027A: 0.7V to 3.1V
SGM6027B: 1.3V to 3.1V
• Output Current
SGM6027: 600mA Continuous, 1310mA Peak
SGM6027A: 600mA Continuous, 870mA Peak
SGM6027B: 600mA Continuous, 870mA Peak
• 580nA Typical Quiescent Current
• PFM Operation
• Up to 92% Efficiency
• Internal Compensation
• Enable Input
• Output Voltage Discharge
• Over-Current Protection (OCP)
• Under-Voltage Lockout (UVLO) Protection
• Over-Temperature Protection (OTP)
• Available in a Green WLCSP-0.8×1.6-8B Package

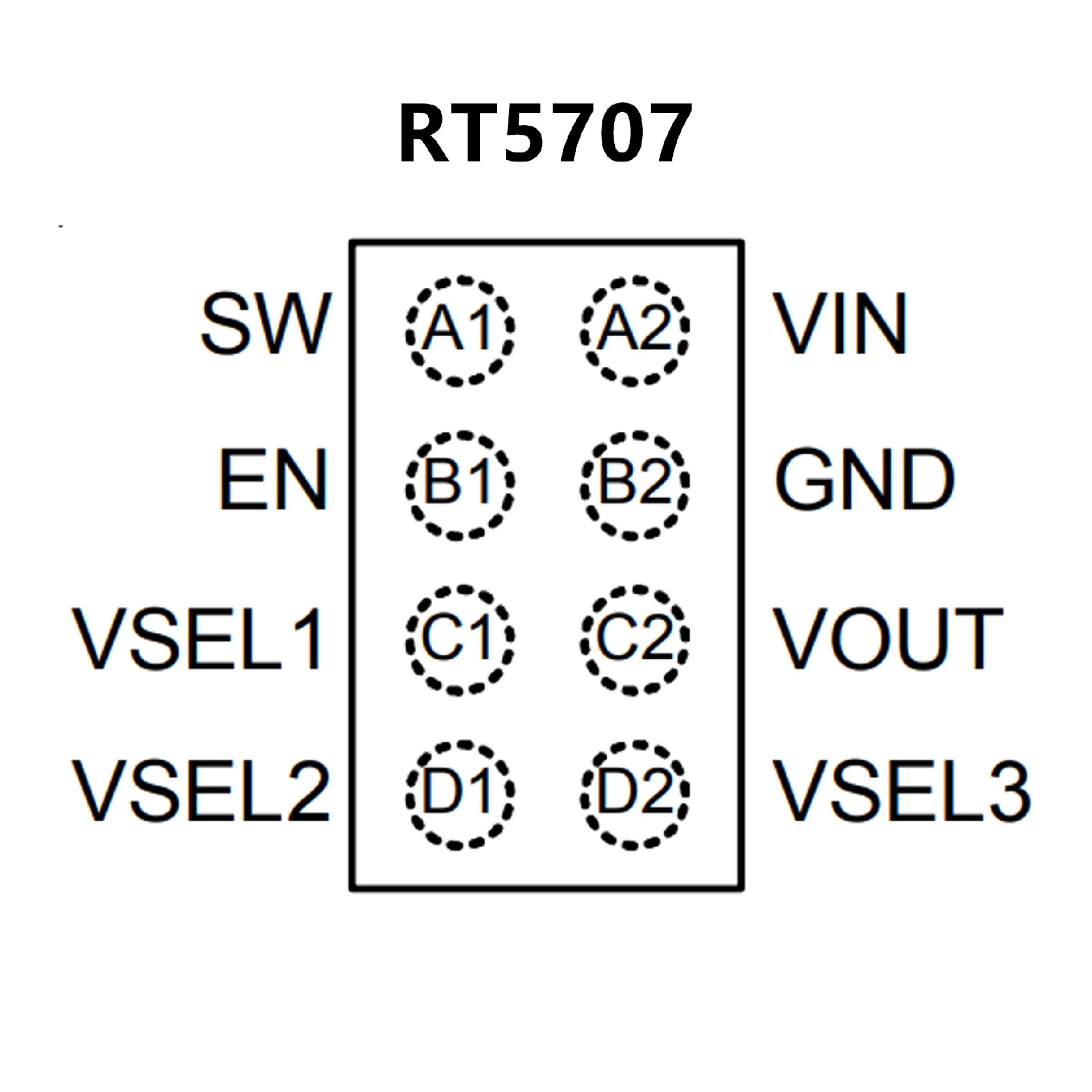

• Input Voltage Range : 2.2V to 5.5V
• Programmable Output Voltage 8-Level
• RT5707 1.2V to 3.3V
• RT5707A 0.7V to 3.1V
• Typ. 360nA Quiescent Current
• PSM Operation
• Up to 94% Efficiency
• Internal Compensation
• Output Voltage Discharge
• Over-Current Protection
• Over-Temperature Protection
• Output Current
• RT5707 600mA, Peak to 1A
• RT5707A 400mA, Peak to 0.5A
• Automatic Transition to 100%
Duty Cycle Operation
