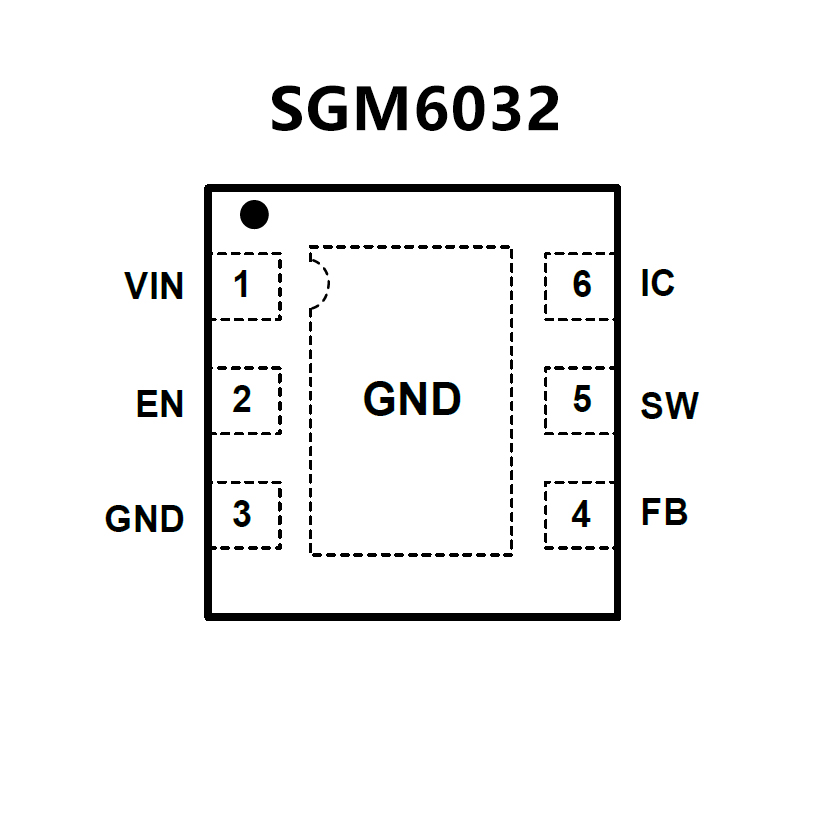

SGM6032-1.2YG.pdf• 600mA Output Current Capability
• 22μA Typical Quiescent Current
• 6MHz Fixed Frequency Operation
• Best-in-Class Load Transient Response
• Best-in-Class Efficiency
• 2.5V to 5.5V Input Voltage Range
• Output Voltages: 0.6V, 0.8V, 1.0V, 1.1V, 1.15V, 1.2V,
1.5V, 1.6V, 1.8V, 2.5V, 2.8V, 3.0V and 3.3V
• Low Ripple Light-Load PFM Mode
• Internal Soft-Start
• Input Under-Voltage Lockout (UVLO)
• Thermal Shutdown and Overload Protection
• Output Discharge
• Available in Green TDFN-2×2-6L and
WLCSP-1.21×0.81-6B Packages
• -40℃ to +85℃ Operating Temperature Range

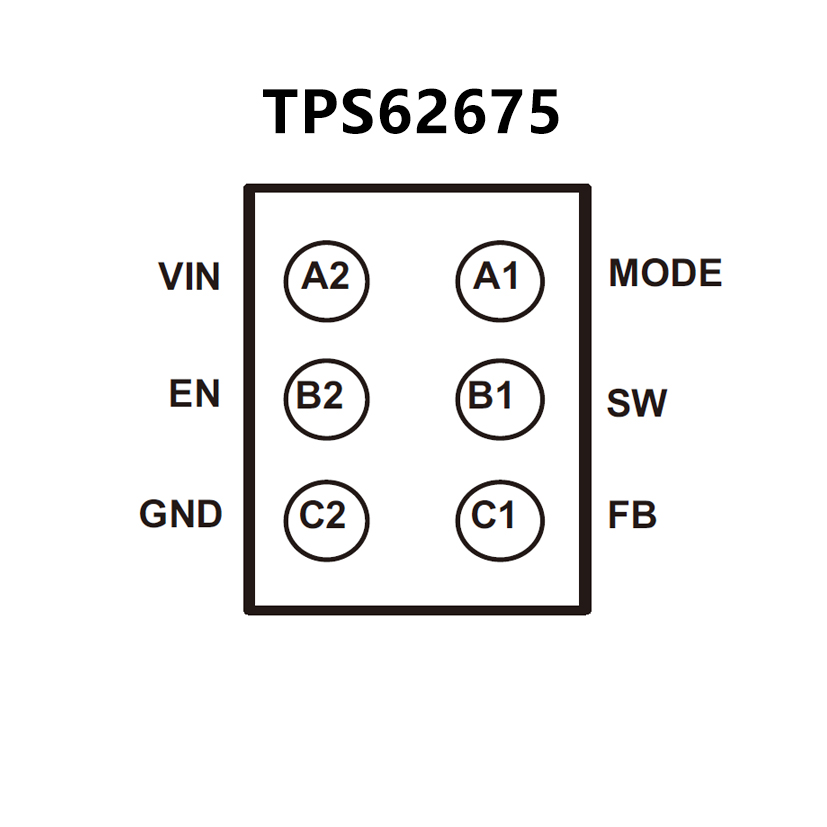

• 92% Efficiency at 6MHz Operation
• 17μA Quiescent Current
• Wide VIN Range From 2.3V to 4.8V
• 6MHz Regulated Frequency Operation
• Spread Spectrum, PWM Frequency Dithering
• Best in Class Load and Line Transient
• ±2% Total DC Voltage Accuracy
• Low Ripple Light-Load PFM Mode
• ≥35dB VIN PSRR (1kHz to 10kHz)
• Simple Logic Enable Inputs
• Supports External Clock Presence Detect Enable
Input
• Three Surface-Mount External Components
Required (One 0603 MLCC Inductor, Two 0402
Ceramic Capacitors)
• Complete Sub 0.33-mm Component Profile
Solution
• Total Solution Size <10 mm2
• Available in a 6-Pin NanoFree™ (CSP)
Ultra-Thin Packaging, 0.4 mm Max. Height
