2.4-V to 5.5-V Input, Tiny 6-Pin 2-A/3-A Step-Down Converter in 1.2-mm × 0.8-mm Wafer Chip Scale Package and Suitable for Embedding
SGM61006
SGM61006.pdf
SGM61006.pdfFEATURES
• 1.8V to 5.5V Input Voltage Range
• 0.5V to VIN Adjustable Output Voltage
• AHP-COT Architecture for Fast Transient Regulation
• 3.5MHz Switching Frequency
• Up to 90% Efficiency
• Low RDSON MOSFET Switches (100mΩ/95mΩ)
• 26μA (TYP) Operating Quiescent Current
• Power-Save Mode for Light Load Efficiency
• 100% Duty Cycle for Lowest Dropout
• Output Discharge Function
• Power Good Output
• Thermal Shutdown Protection
• Available in a Green WLCSP-0.9×1.3-6B-A Package

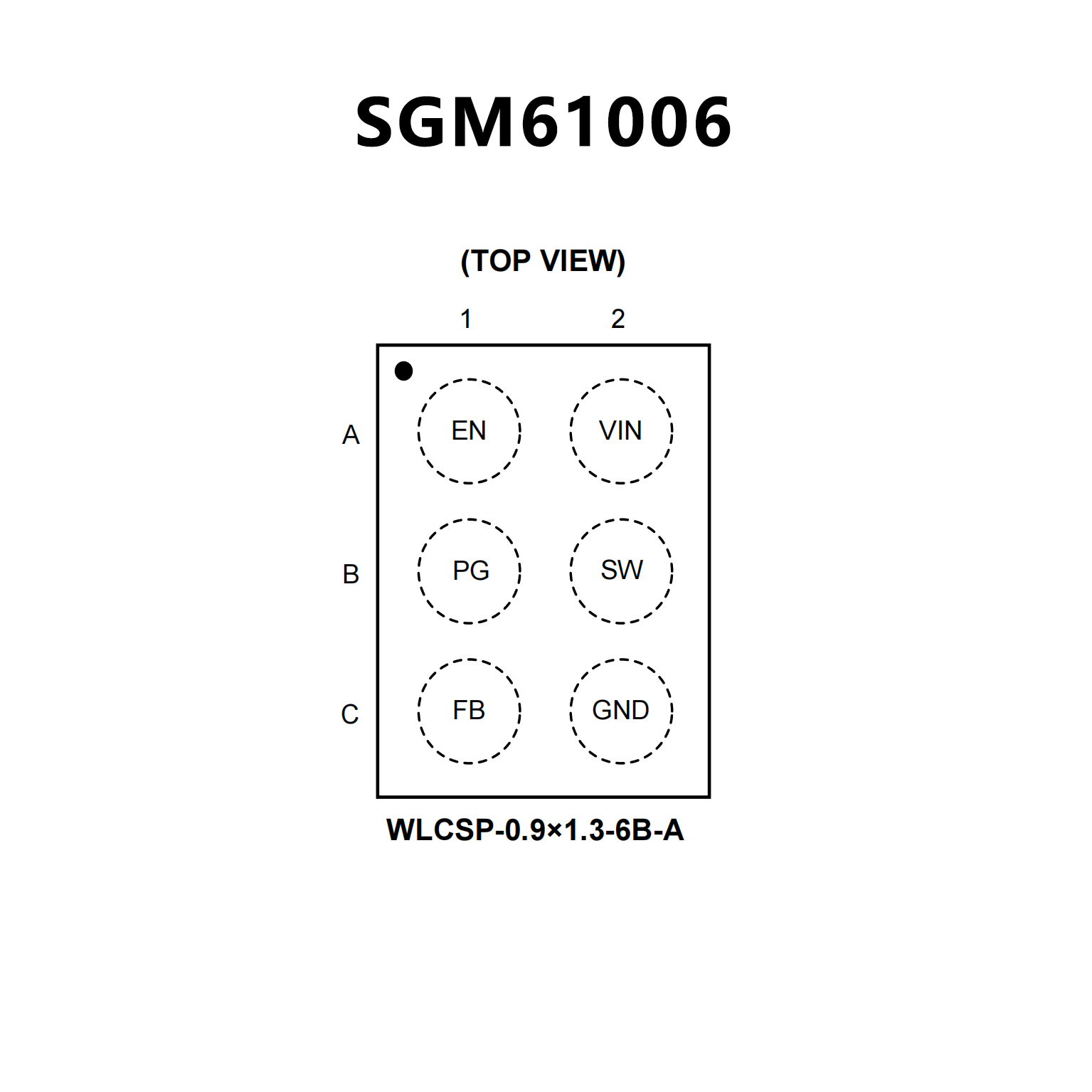

PIN CONFIGUTION
优势替代
FEATURES
• DCS-Control topology
• Up to 95% efficiency
• 26-mΩ and 26-mΩ internal power MOSFETs
• 2.4-V to 5.5-V input voltage range
• 4-μA operating quiescent current
• 1% output voltage accuracy
• 4-MHz switching frequency
• Power save mode for light-load efficiency
• A forced-PWM version for CCM operation
• 100% duty cycle for lowest dropout
• Active output discharge
• Power good output
• Thermal shutdown protection
• Hiccup short-circuit protection
• Available in 6-pin WCSP and PowerWCSP with
0.4-mm pitch
• 0.3-mm tall YWC package supports embedded
systems
• Supports 12 mm2 solution size
• Supports < 0.6 mm height solution
• Create a custom design using the TPS62088 with
the WEBENCH® Power Designer

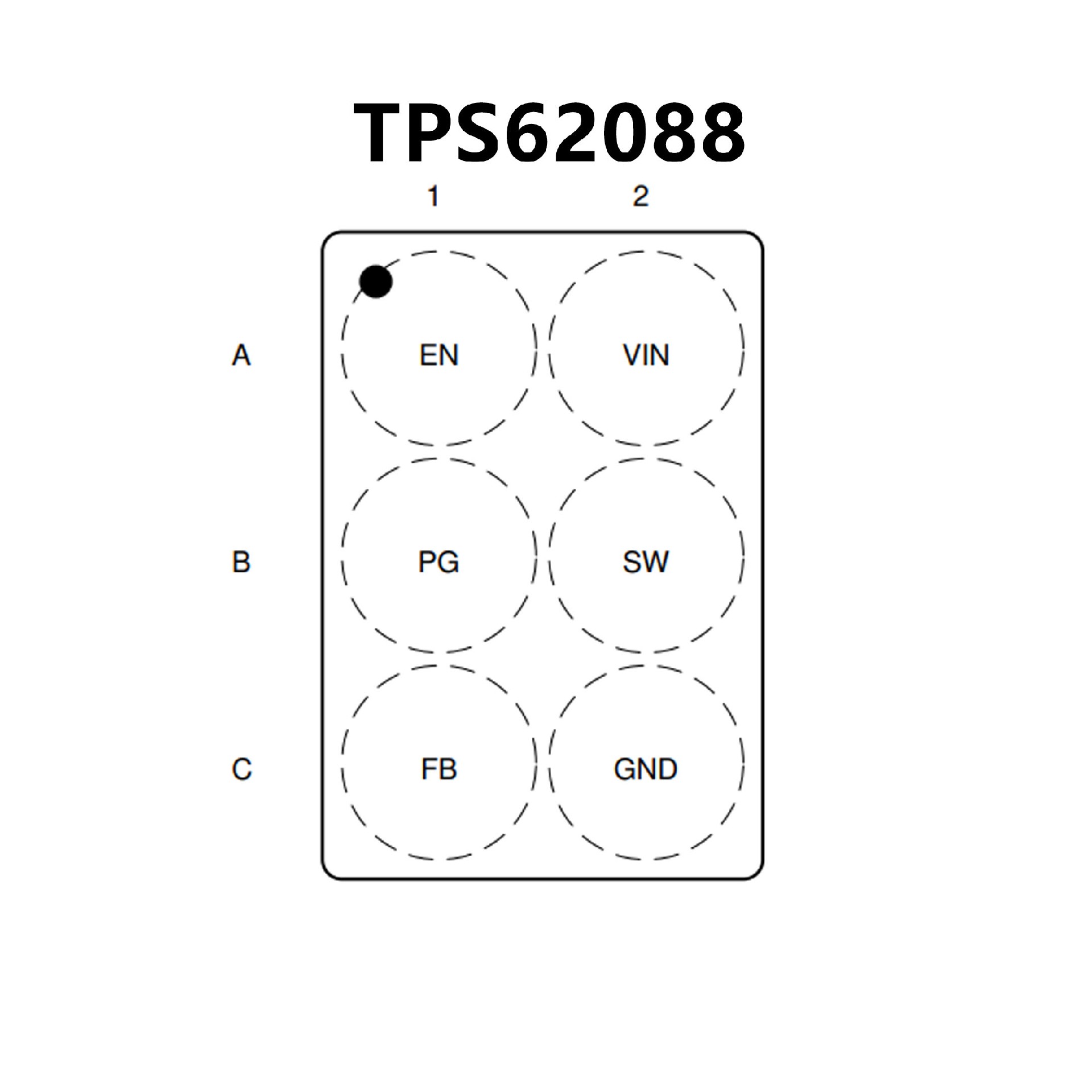

PIN CONFIGUTION
