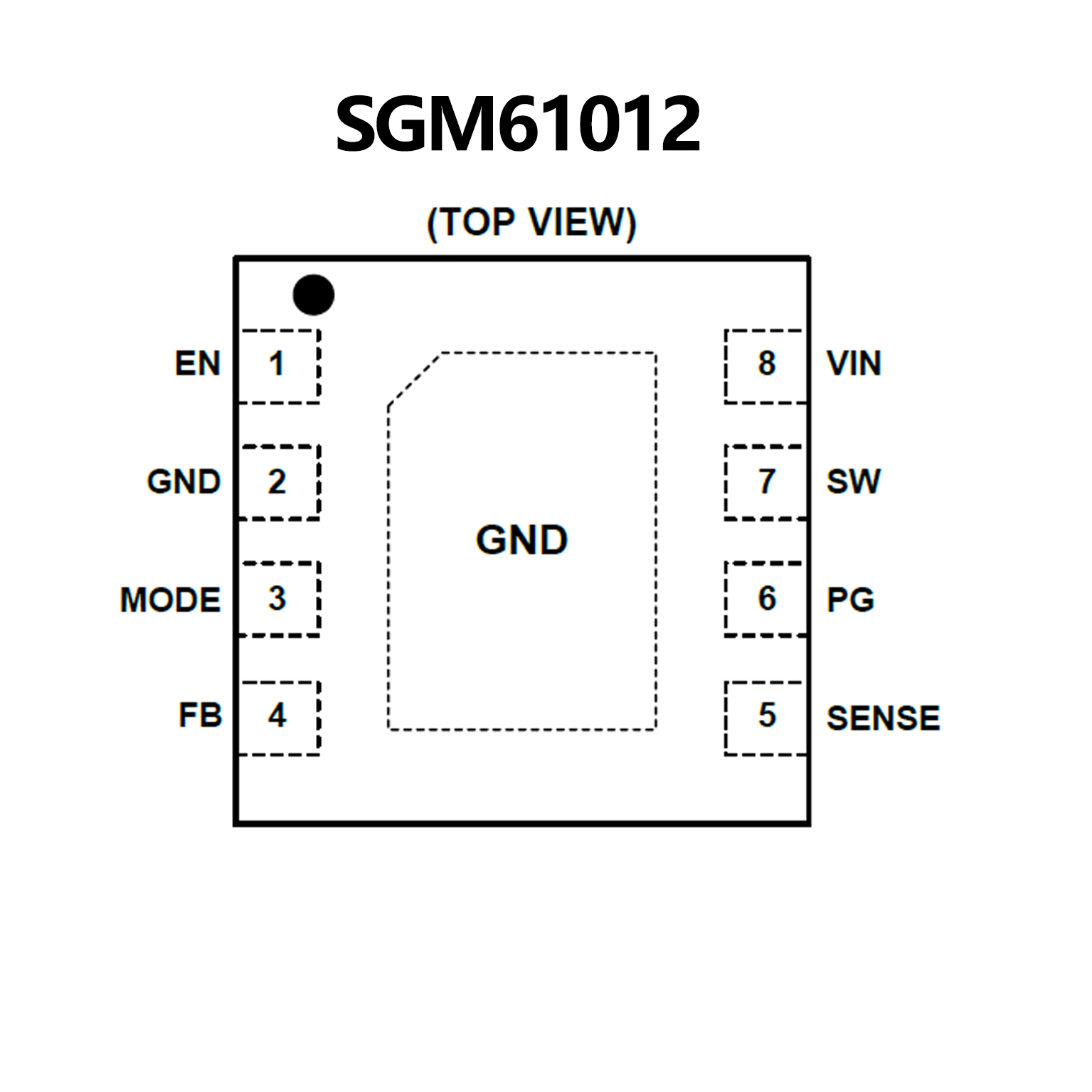

SGM61012.pdf• AHP-COT Architecture for Fast Transient Regulation
• 2.3V to 5.5V Input Voltage Range
• Output Current: 1.2A
• Deep Sleep Mode for 9μA Ultra-Low Quiescent Current
• 100% Duty Cycle Capability for Low Dropout
• Power-Save Mode for Light Load Efficiency
• Output Discharge Function
• Short-Circuit Protection
• Power Good Output
• Thermal Shutdown
• Available in a Green TDFN-2×2-8AL Package

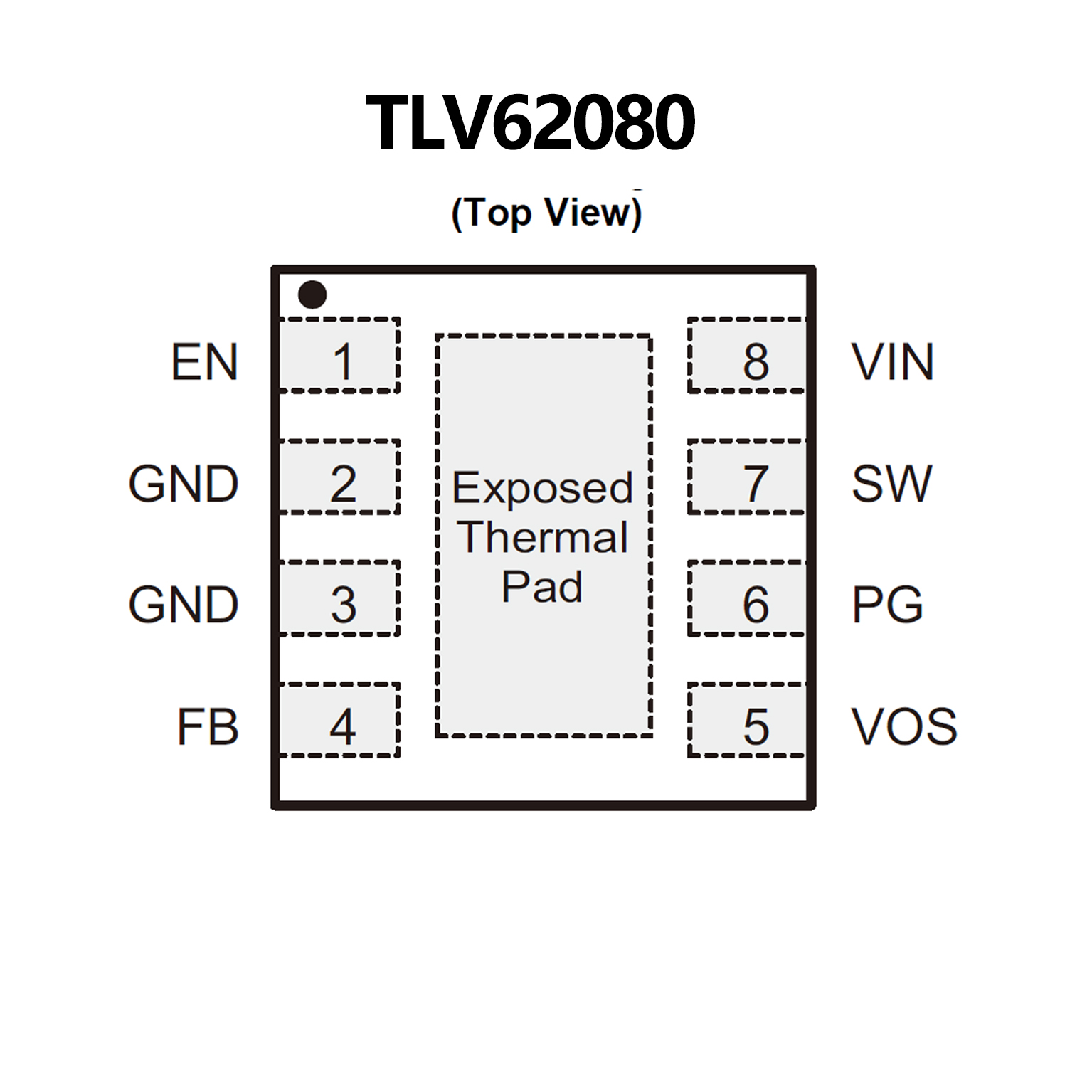

• DCS-Control™ Architecture for Fast Transient
Regulation
• 2.5 to 6-V Input Voltage Range (TLV62080)
• 2.7 to 6-V Input Voltage Range (TLV62084,
TLV62084A)
• 100% Duty Cycle for Lowest Dropout
• Power Save Mode for Light Load Efficiency
• Output Discharge Function
• Power Good Output
• Thermal Shutdown
• Available in 2 mm × 2 mm 8-Terminal WSON
Package
• For Improved Features Set, see the TPS62080
• Create a Custom Design Using the TLV6208x
With the WEBENCH® Power Designer
