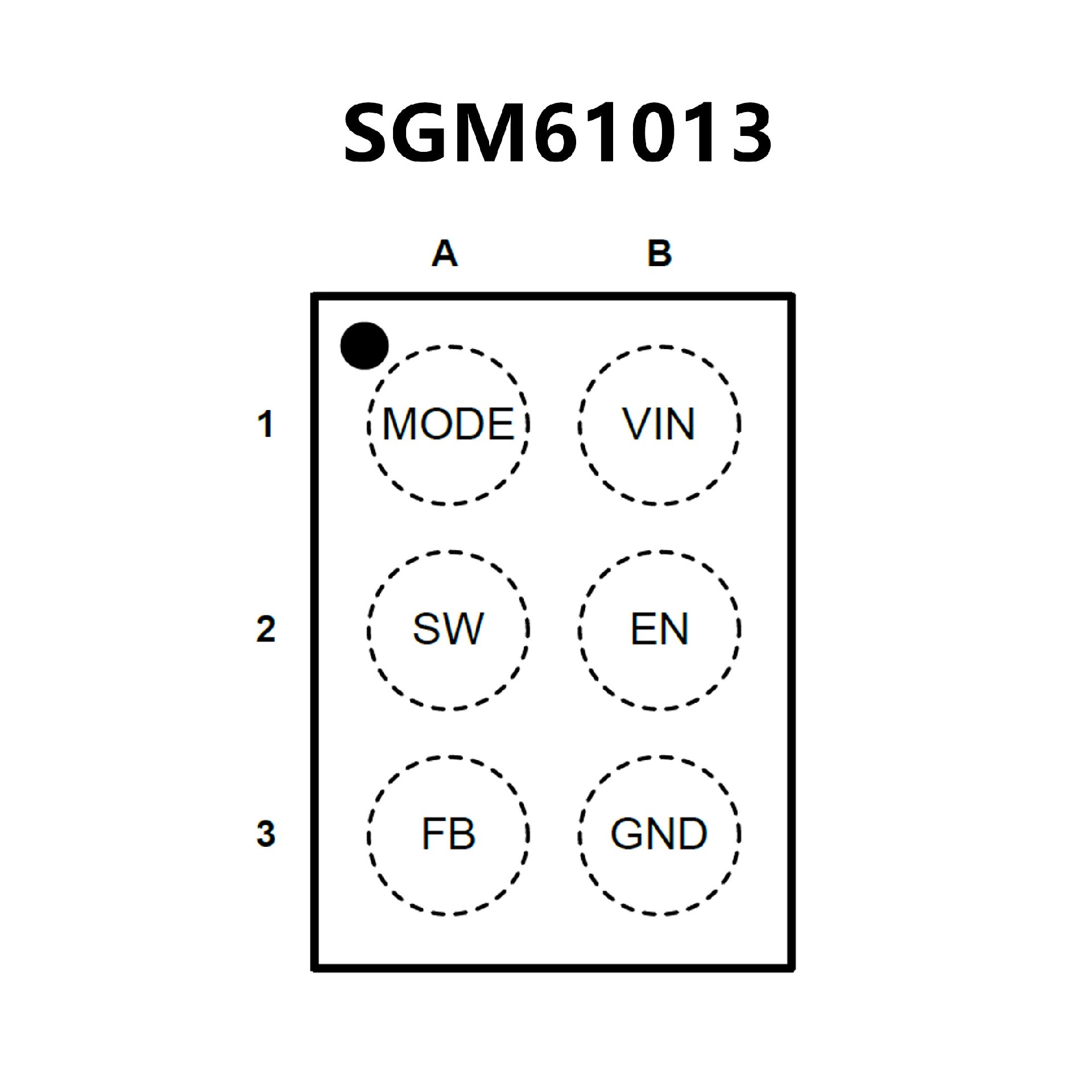

SGM61013.pdf• 2.3V to 5.5V Input Voltage Range
• Fixed Output Voltage Options
from 1.2V to 3.3V
• 1A Output Current
• 20μA (TYP) Quiescent Current
• Selectable PFM Light Load Operation
• Up to 95% Efficiency
• SGM61013A: 10MHz Switching Frequency
• SGM61013B: 6.5MHz/8MHz
Switching Frequency
• Fast Load Transient Response
• 100% Duty Cycle
• Logic Enable Input
• Soft-Start
• Input Under-Voltage Lockout
• Over-Current Protection
• Thermal Shutdown
• Active Output Discharge
• Available in a Green
WLCSP-0.9×1.2-6B Package

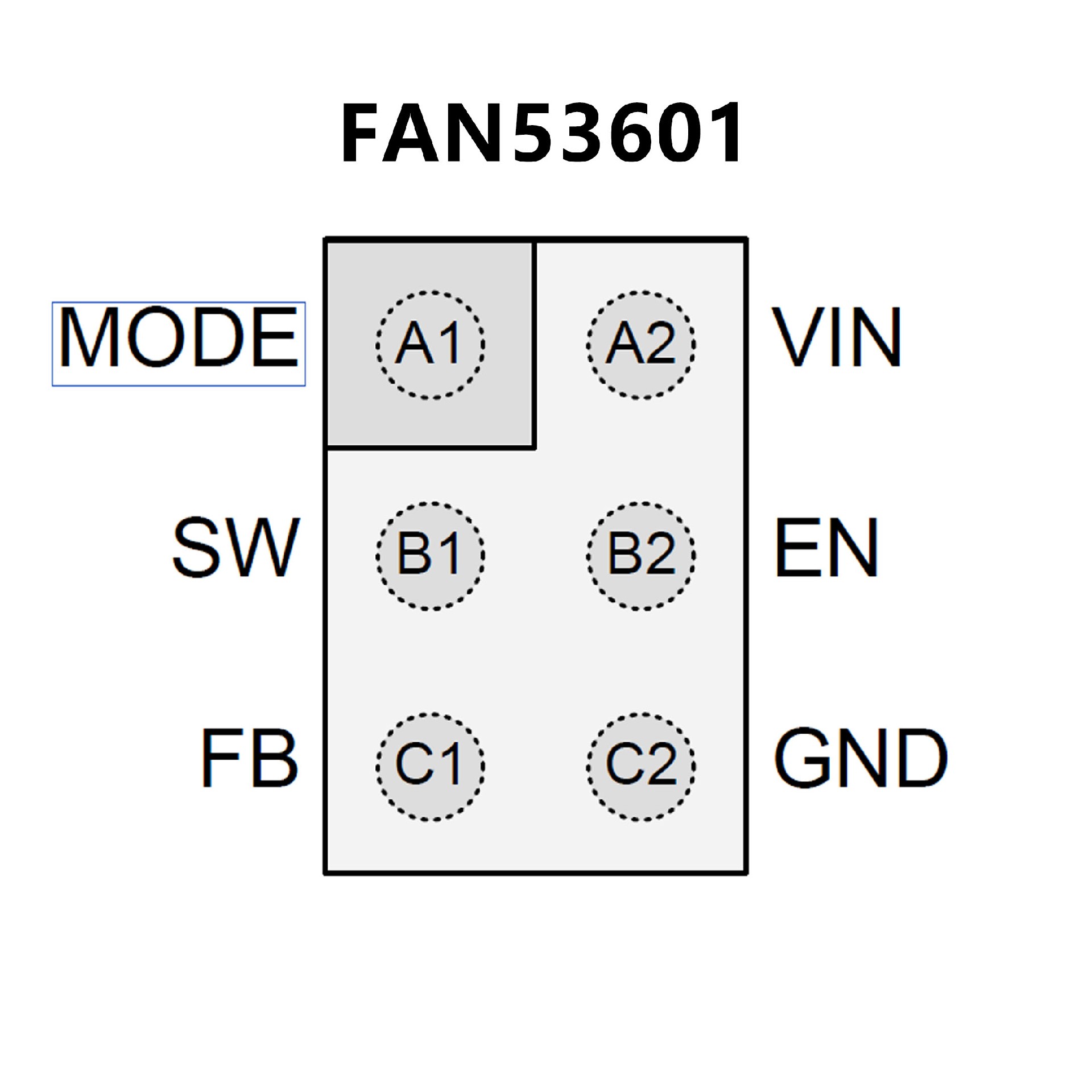

• 600 mA or 1 A Output Current Capability
• 24 μA Typical Quiescent Current
• 6 MHz Fixed-Frequency Operation
• Best-in-Class Load Transient Response
• Best-in-Class Efficiency
• 2.3 V to 5.5 V Input Voltage Range
• Low Ripple Light-Load PFM Mode
• Forced PWM and External Clock Synchronization
• Internal Soft-Start
• Input Under-Voltage Lockout (UVLO)
• Thermal Shutdown and Overload Protection
• Optional Output Discharge
• 6-Bump WLCSP, 0.4 mm Pitch
