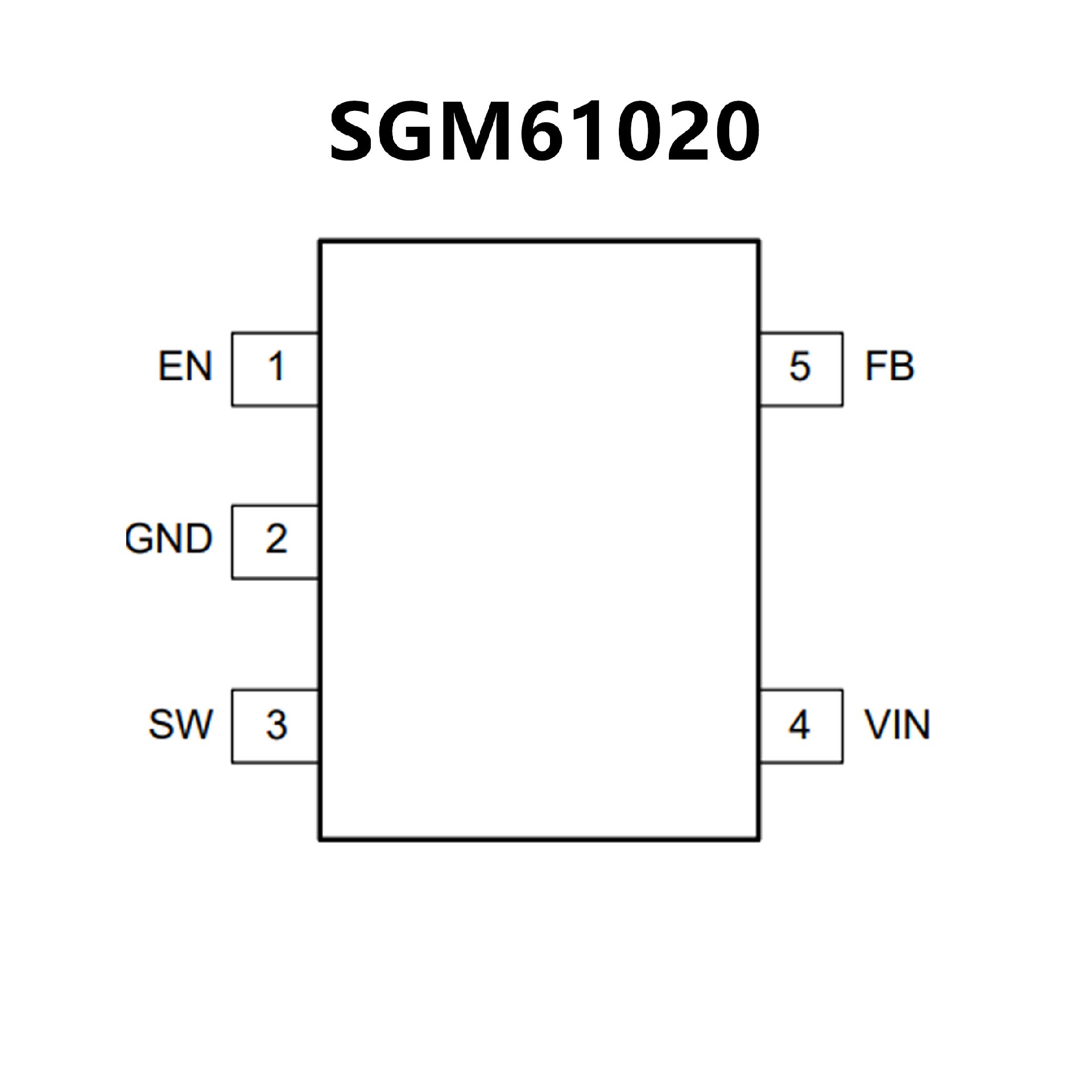

SGM61020.pdf• 2.5V to 5.5V Input Voltage Range
• Adjustable Output Voltage from 0.6V to VIN
• Up to 95% Efficiency
• Low RDSON Switches (102mΩ/57mΩ)
• Power-Save Mode for Light Load Efficiency
• 42μA (TYP) Operating Quiescent Current
• 100% Duty Cycle for Low Dropout Operation
• 1.5MHz PWM Switching Frequency
• Power Good Output (SGM61020P Only)
• Over-Current Protection
• Thermal Shutdown Protection
• Input Under-Voltage Lockout (UVLO) Protection
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:SGM61020: Available in Green
SOT-23-5 andSOT-563-6 PackagesSGM61020P:
Available in a Green SOT-563-6Package

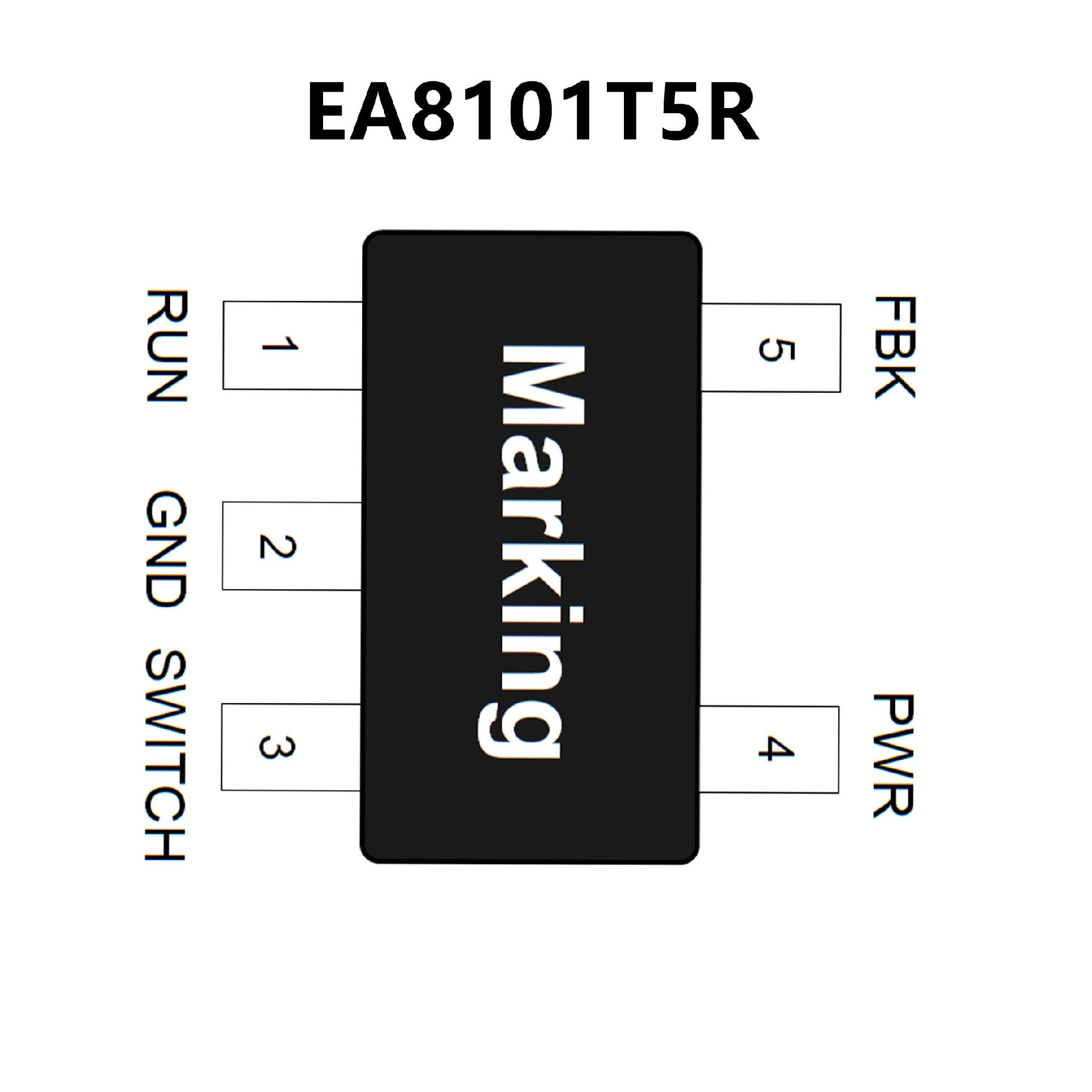

• Built-in Low RDS(ON) Power-MOSFETS
• Efficiency Up to 95%
• 2.5V to 5.5V Input Voltage Range
• Adjustable Output Voltage Range from 0.6V to VIN
• Fixed 1.5MHz Switching Frequency
• 1A Continuous Load Current
•100% Duty Cycle Low Dropout Operation
• 45µA Low Quiescent Current
• <1µA Shutdown Current
• Internal Compensation
• Cycle-by-Cycle Current Limit
• Short Circuit Protection
• OTP Protection
• Available in SOT-23-5 and TSOT23-5 Packages
