SGM61020.pdf• 2.5V to 5.5V Input Voltage Range
• Adjustable Output Voltage from 0.6V to VIN
• Up to 95% Efficiency
• Low RDSON Switches (102mΩ/57mΩ)
• Power-Save Mode for Light Load Efficiency
• 42μA (TYP) Operating Quiescent Current
• 100% Duty Cycle for Low Dropout Operation
• 1.5MHz PWM Switching Frequency
• Power Good Output (SGM61020P Only)
• Over-Current Protection
• vThermal Shutdown Protection
• Input Under-Voltage Lockout (UVLO) Protection
• 40℃ to +125℃ Operating Temperature Range

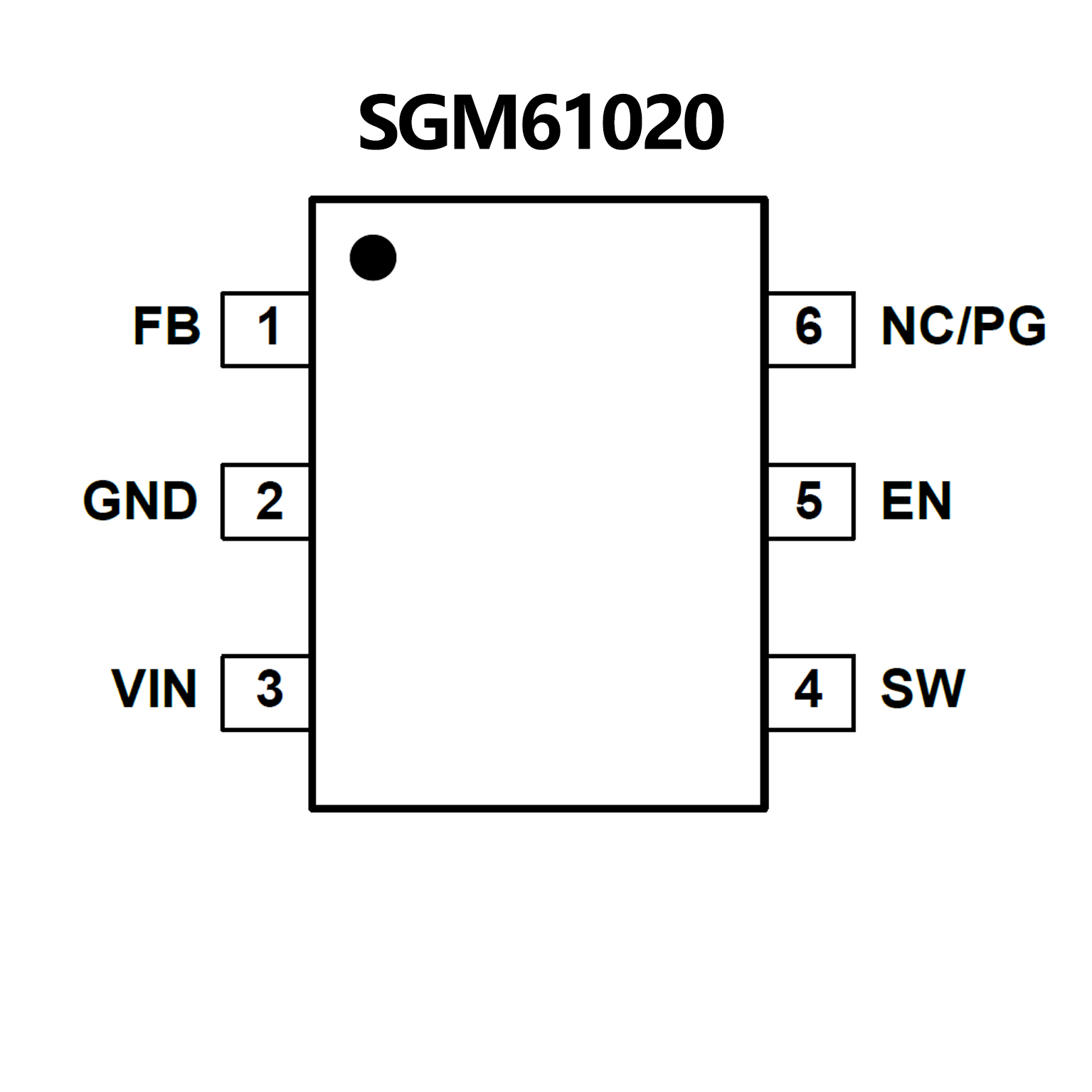

• Small Packaging:
SGM61020: Available in Green SOT-23-5 andSOT-563-6 Packages
SGM61020P: Available in a Green SOT-563-6Package
• 2.7V to 6.0V operating input range
• Up to 1A output current
• Up to 92% peak efficiency
• Internal soft-start
• 1.5MHz switching frequency
• Input under voltage lockout
• Hot-plug in protection
• Short circuit protection
• Thermal protection
• Available in a SOT23-5 package
