SGM61020.pdf• 2.5V to 5.5V Input Voltage Range
• Adjustable Output Voltage from 0.6V to VIN
• Up to 95% Efficiency
• Low RDSON Switches (102mΩ/57mΩ)
• Power-Save Mode for Light Load Efficiency
• 42μA (TYP) Operating Quiescent Current
• 100% Duty Cycle for Low Dropout Operation
• 1.5MHz PWM Switching Frequency
• Power Good Output (SGM61020P Only)
• Over-Current Protection
• Thermal Shutdown Protection
• Input Under-Voltage Lockout (UVLO) Protection
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:

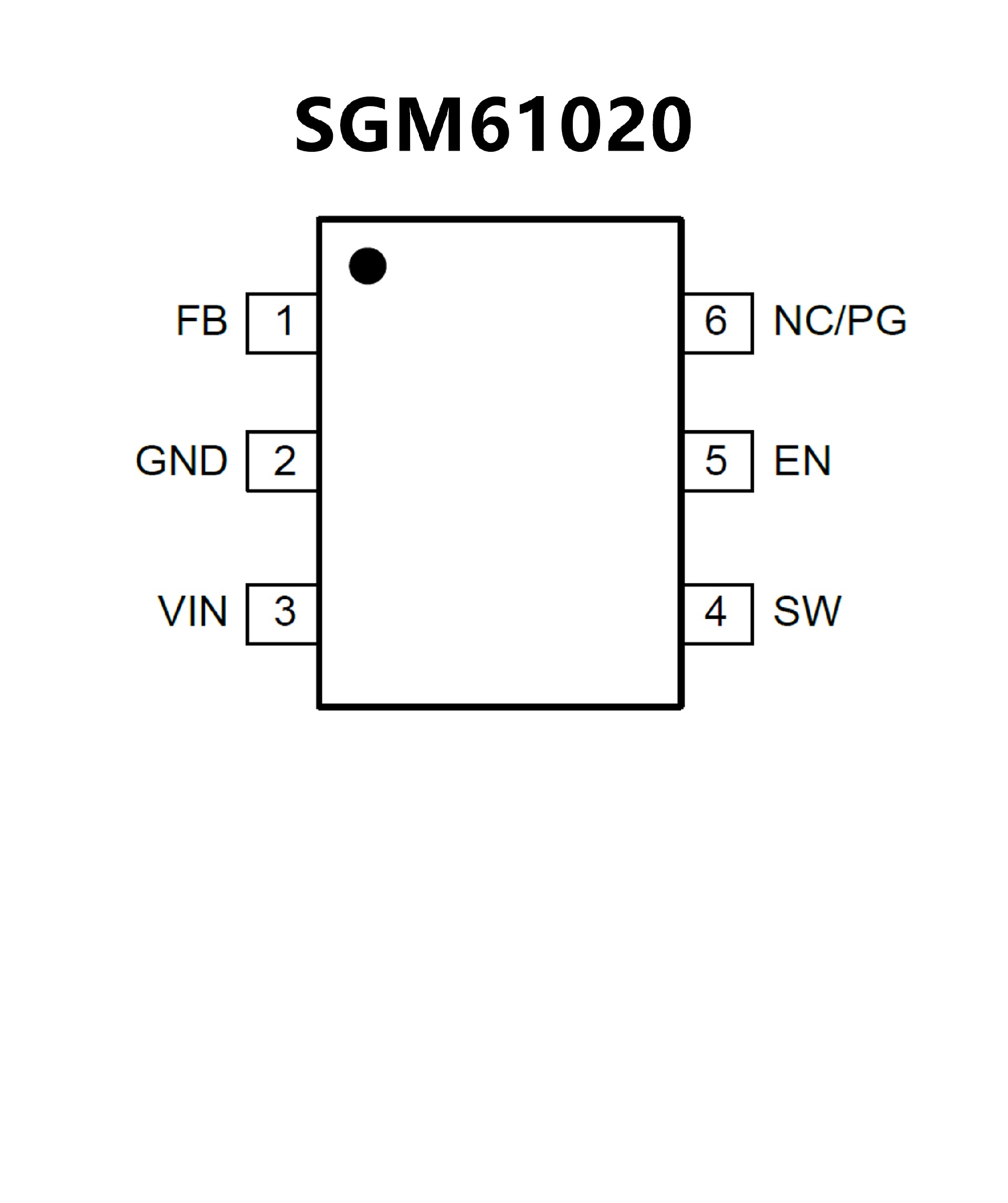

SGM61020: Available in Green SOT-23-5 and
SOT-563-6 Packages
SGM61020P: Available in a Green SOT-563-6
Package
• Up to 95% Efficiency
• Low RDS(ON) Switches 150 mΩ / 100 mΩ
• 2.5-V to 5.5-V Input Voltage Range
• Adjustable Output Voltage from 0.6 V to VIN
• Power Save Mode for Light Load Efficiency
• 100% Duty Cycle for Lowest Dropout
• 35-μA Operating Quiescent Current
• 1.5-MHz Switching Frequency
• Power Good Output
• Over Current Protection
• Internal Soft Startup
• Thermal Shutdown Protection

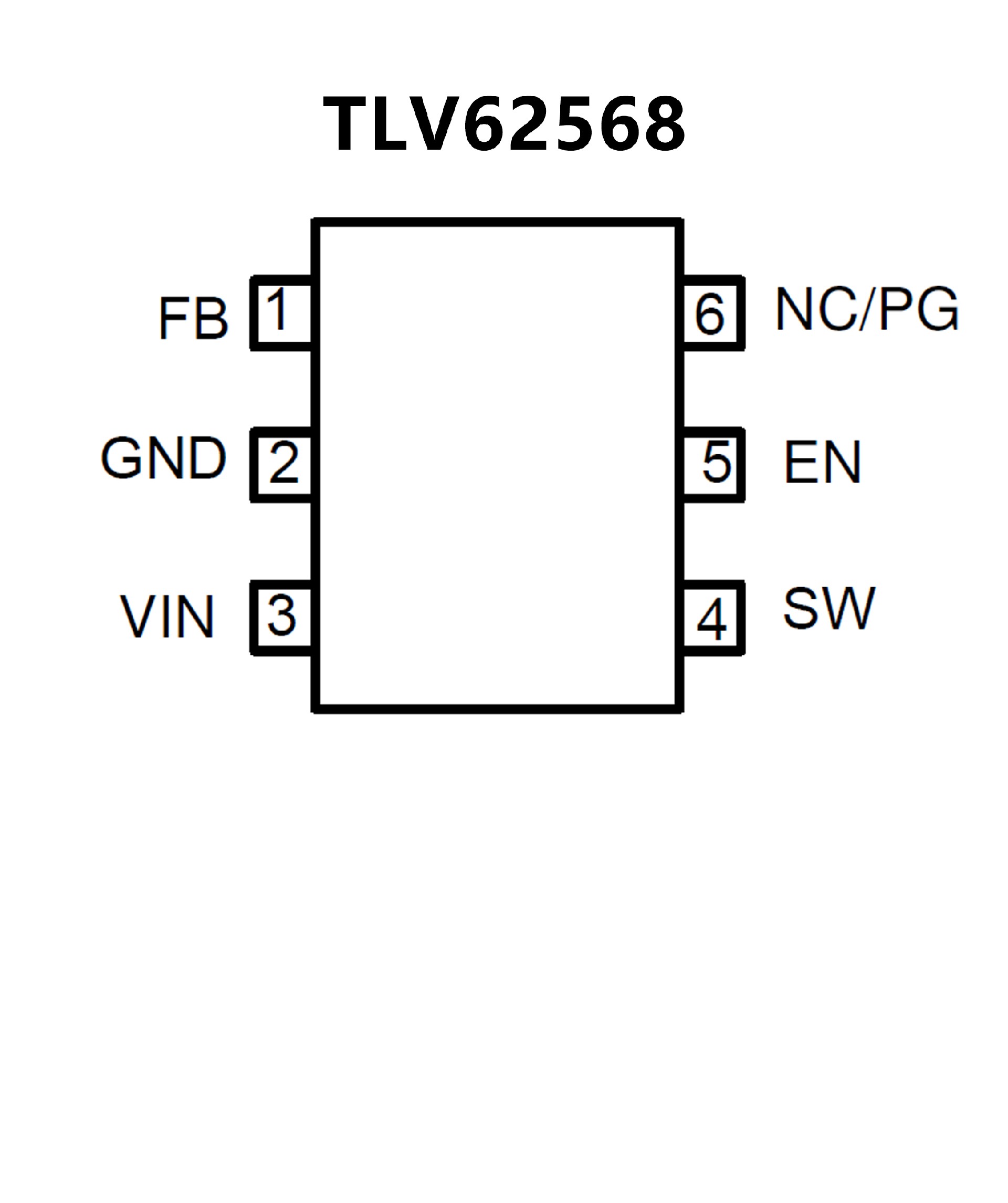

• Available in SOT Package
• Pin-to-Pin Compatible with TLV62569
• Create a Custom Design Using the TLV62568
With the WEBENCH® Power Designer
