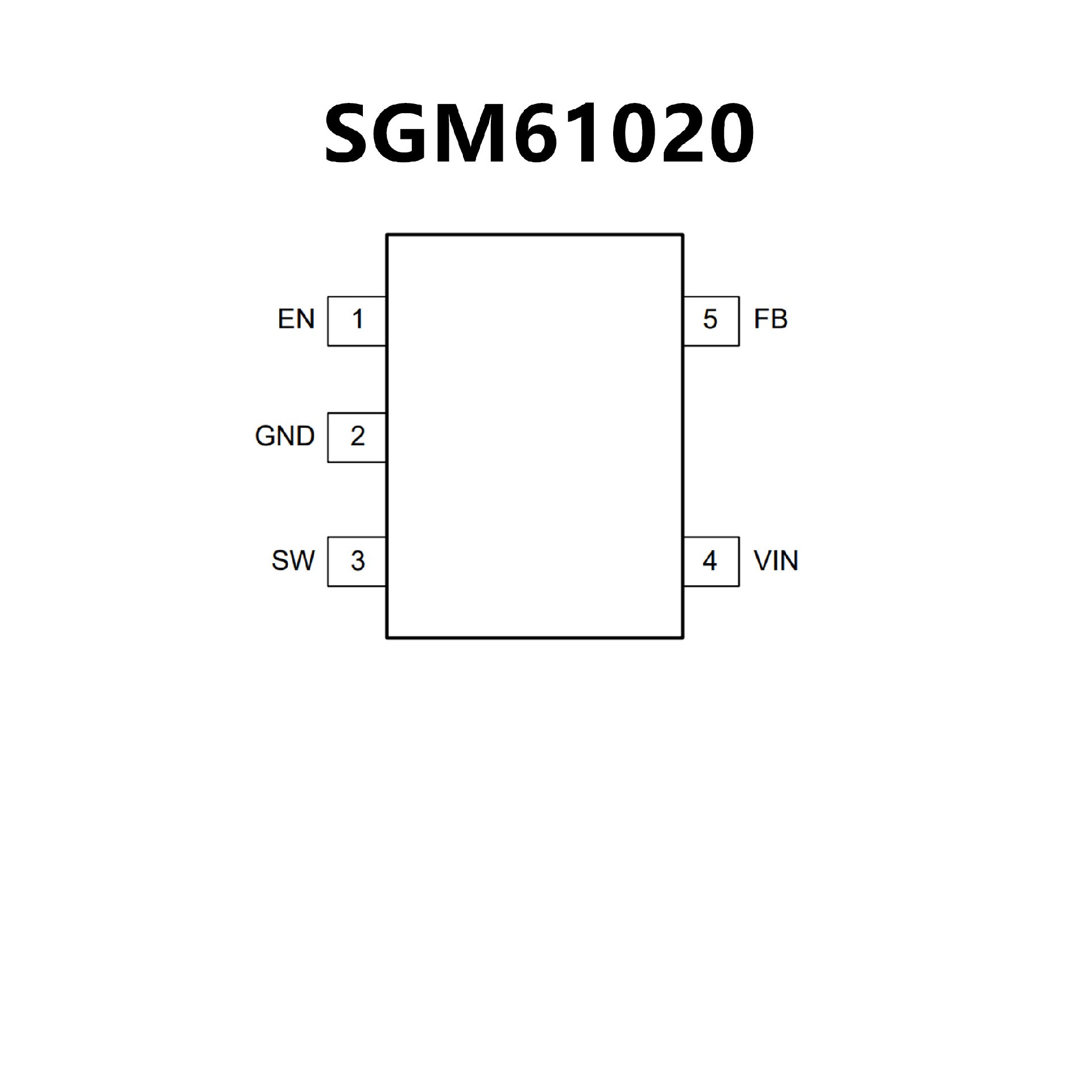

SGM61020.pdf• 2.5V to 5.5V Input Voltage Range
• Adjustable Output Voltage from 0.6V to VIN
• Up to 95% Efficiency
• Low RDSON Switches (102mΩ/57mΩ)
• Power-Save Mode for Light Load Efficiency
• 42μA (TYP) Operating Quiescent Current
• 100% Duty Cycle for Low Dropout Operation
• 1.5MHz PWM Switching Frequency
• Power Good Output (SGM61020P Only)
• Over-Current Protection
• Thermal Shutdown Protection
• Input Under-Voltage Lockout (UVLO) Protection
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:
SGM61020: Available in Green SOT-23-5
and SOT-563-6 Packages
SGM61020P: Available in a Green SOT-563-6
Package

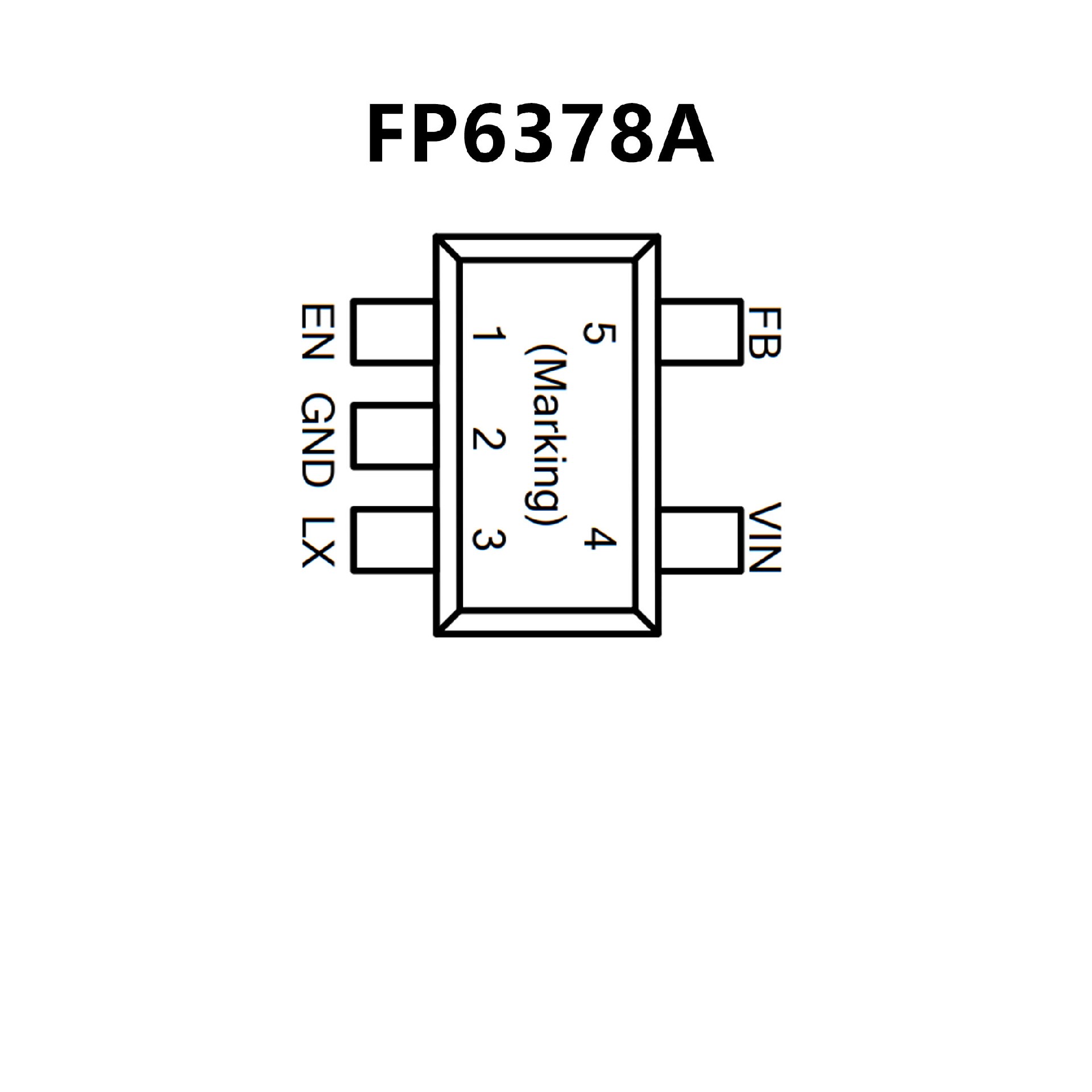

• Low RDS(ON) for Internal Switch
(Top/Bottom):180/100mΩ
• 2.5V~5.5V Input Voltage Range
• 2A Output Current
• 1MHz Switching Frequency Minimizes
the External Components
• Internal Soft-Start Limits the Inrush Current
• Internal Compensation Function
• 100% Dropout Operation
• Power Good Indicator Output (SOT-23-6 only)
• RoHS Compliant and Halogen Free
• SOT-23-5 and SOT-23-6 Packages
