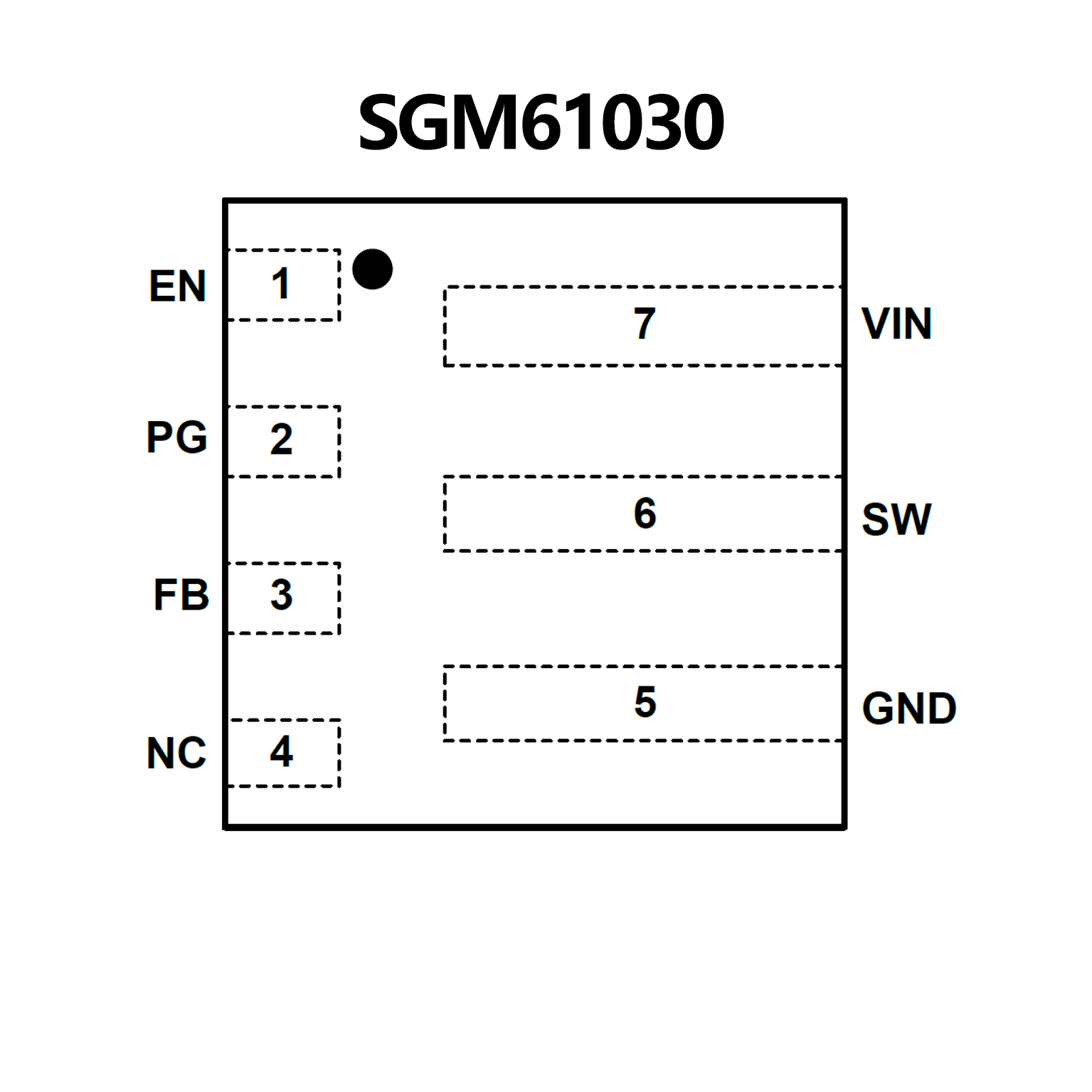

SGM61030.pdf• 2.5V to 5.5V Input Voltage Range
• Adjustable Output Voltage from 0.6V to VIN
• Adaptive Off-Time Architecture
• Up to 95% Efficiency
• Low RDSON MOSFET Switches (34mΩ/20mΩ)
• 42μA (TYP) Operating Quiescent Current
• Ultra-Low Quiescent Current in Shutdown Mode
• Power-Save Mode at Light Loads (SGM61030A)
• Continuous Current Mode (SGM61030B)
• 100% Duty Cycle Capability for Low Dropout
• Startup with Pre-biased Output
• Output Discharge Function
• Power Good Output
• Hiccup Mode Short-Circuit Protection
• Thermal Shutdown Protection
• Available in a Green TDFN-2×2-7L Package
• Up to 95% efficiency
• Low RDS(ON) power switches 56 mΩ / 32 mΩ
• 2.5-V to 5.5-V input voltage range
• Adjustable output voltage from 0.6-V to VIN
• Power save mode for light load efficiency
• 100% duty cycle for lowest dropout
• 35-μA operating quiescent current
• 1.5-MHz typical switching frequency
• Short circuit protection (HICCUP)
• Output discharge
• Power good output
• Thermal shutdown protection
• Available in 2-mm × 2-mm QFN or 1.6-mm x 1.6-
mm SOT563 package
• Create a custom design using the TLV62585 with
the WEBENCH® Power Designer
