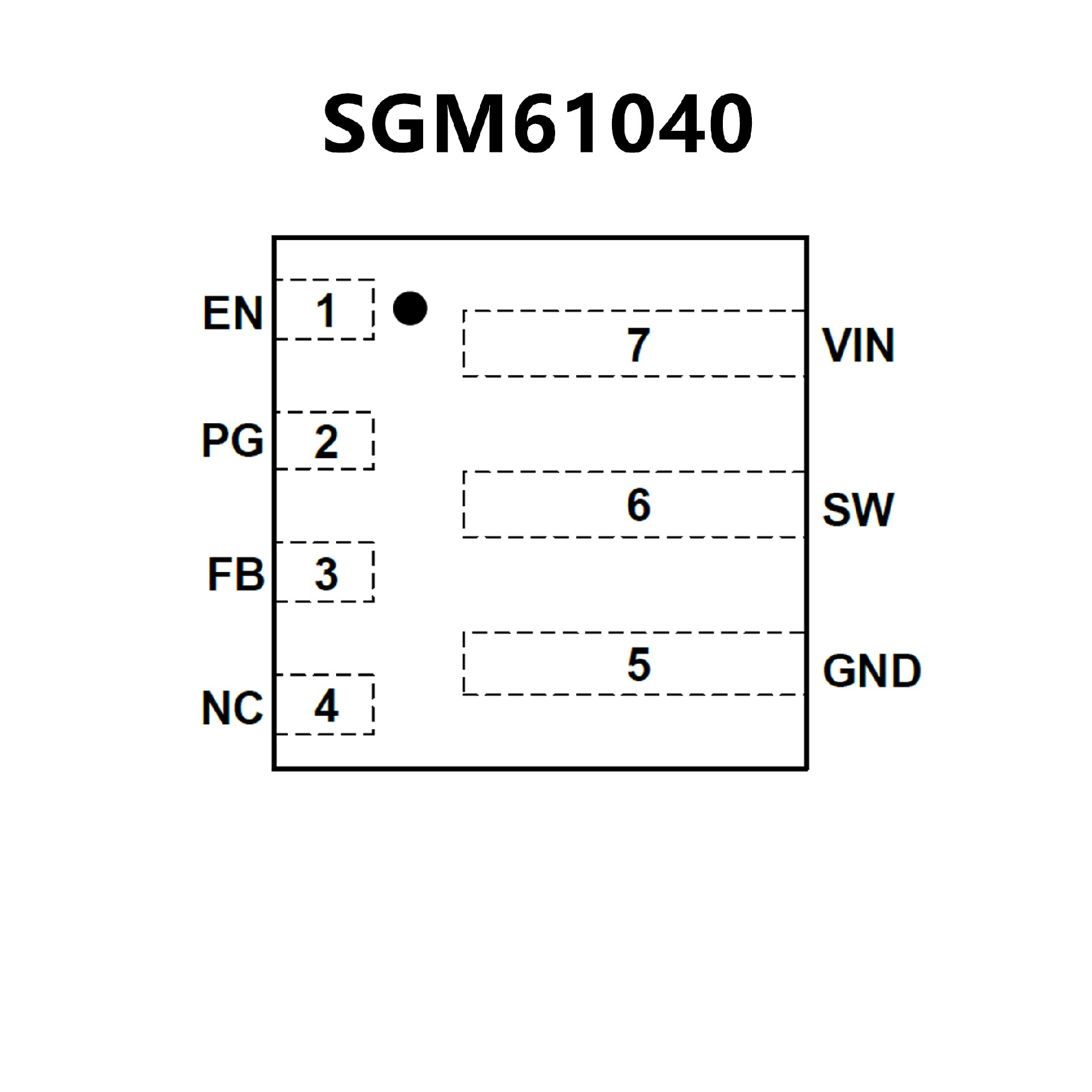

SGM61040.pdf• 2.5V to 5.5V Input Voltage Range
• Adjustable Output Voltage from 0.6V to VIN
• Adaptive Off-Time Architecture
• Up to 95% Efficiency
• Low RDSON MOSFET Switches (27mΩ/12mΩ)
• 42μA (TYP) Operating Quiescent Current
• Ultra-Low Quiescent Current in Shutdown Mode
• Power-Save Mode at Light Loads (SGM61040A)
• 100% Duty Cycle Capability for Low Dropout
• Startup with Pre-biased Output
• Output Discharge Function
• Power Good Output
• Hiccup Mode Short-Circuit Protection
• Thermal Shutdown Protection
• Available in a Green TDFN-2×2-7L Package

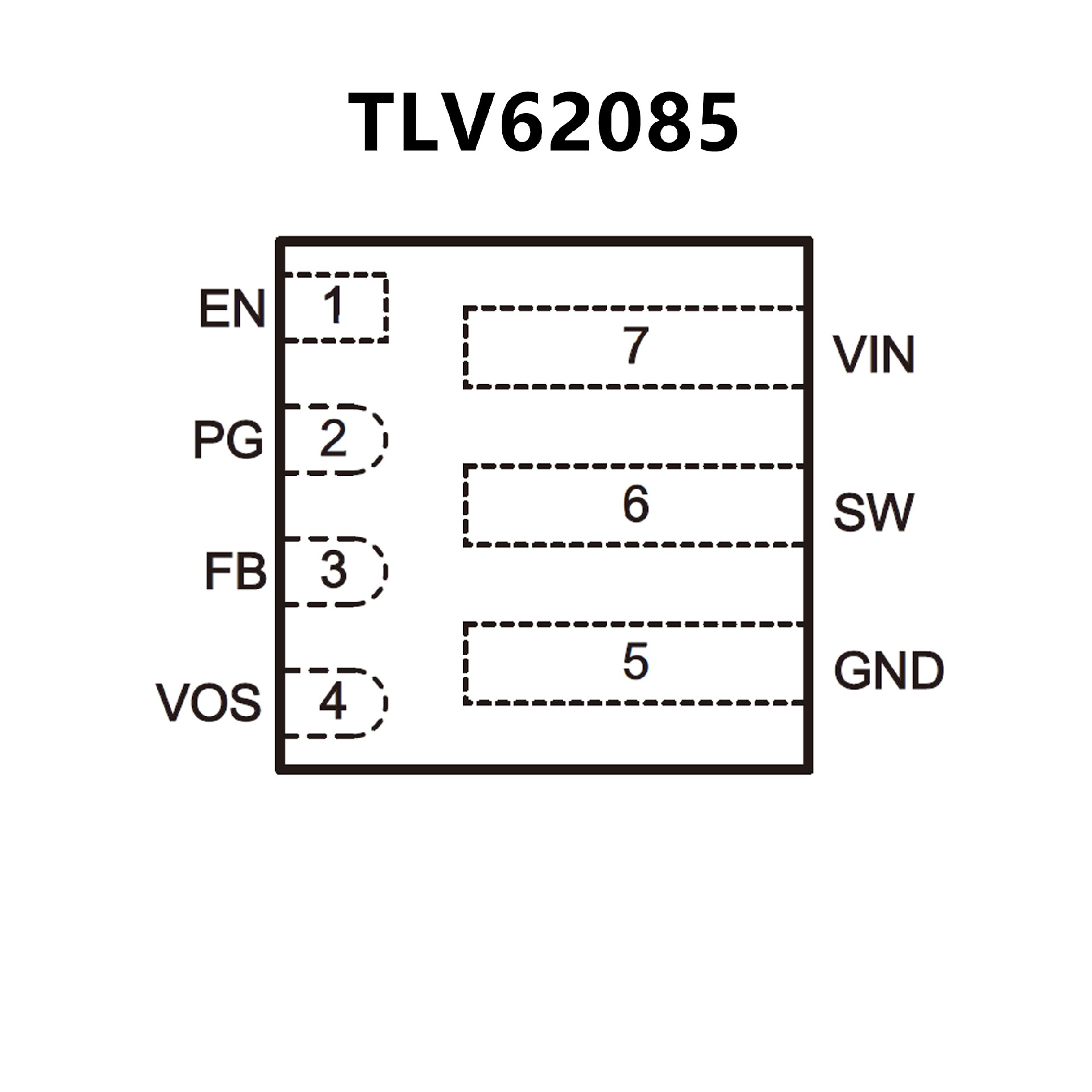

• DCS-Control™ Topology
• Up to 95% Efficiency
• 17-μA Operating Quiescent Current
• 31mΩ and 23mΩ Power MOSFET Switch
• 2.5-V to 6.0-V Input Voltage Range
• 0.8-V to VIN Adjustable Output Voltage
• Power Save Mode for Light Load Efficiency
• 100% Duty Cycle for Lowest Dropout
• Hiccup Short-Circuit Protection
• Output Discharge
• Power Good Output
• Thermal Shutdown Protection
• Available in 2-mm × 2-mm VSON Package
• For Improved Feature Set, See TPS62085
• Create a Custom Design using the TLV62085 with
the WEBENCH® Power Designer
