SGM61060Q.pdf• AEC-Q100 (Grade 1) Qualified for Automotive Applications
TA = -40℃ to +125℃
• 2.9V to 6V Range for VIN
• Low RDSON Integrated Switches (13.9mΩ/13.8mΩ)
• Fixed 200kHz to 2MHz Switching Frequency
• External Clock Synchronization
• Voltage Tracking Capability
• 0.6V Internal Voltage Reference
• 2μA (TYP) Shutdown Quiescent Current
• Hiccup Mode Current Limit
• Monotonic Startup with Pre-Biased Outputs
• Adjustable Soft-Start Time
• Power Sequencing Capability
• Under-Voltage/Over-Voltage Power Good Output
• Adjustable Input Under-Voltage Lockout (UVLO)

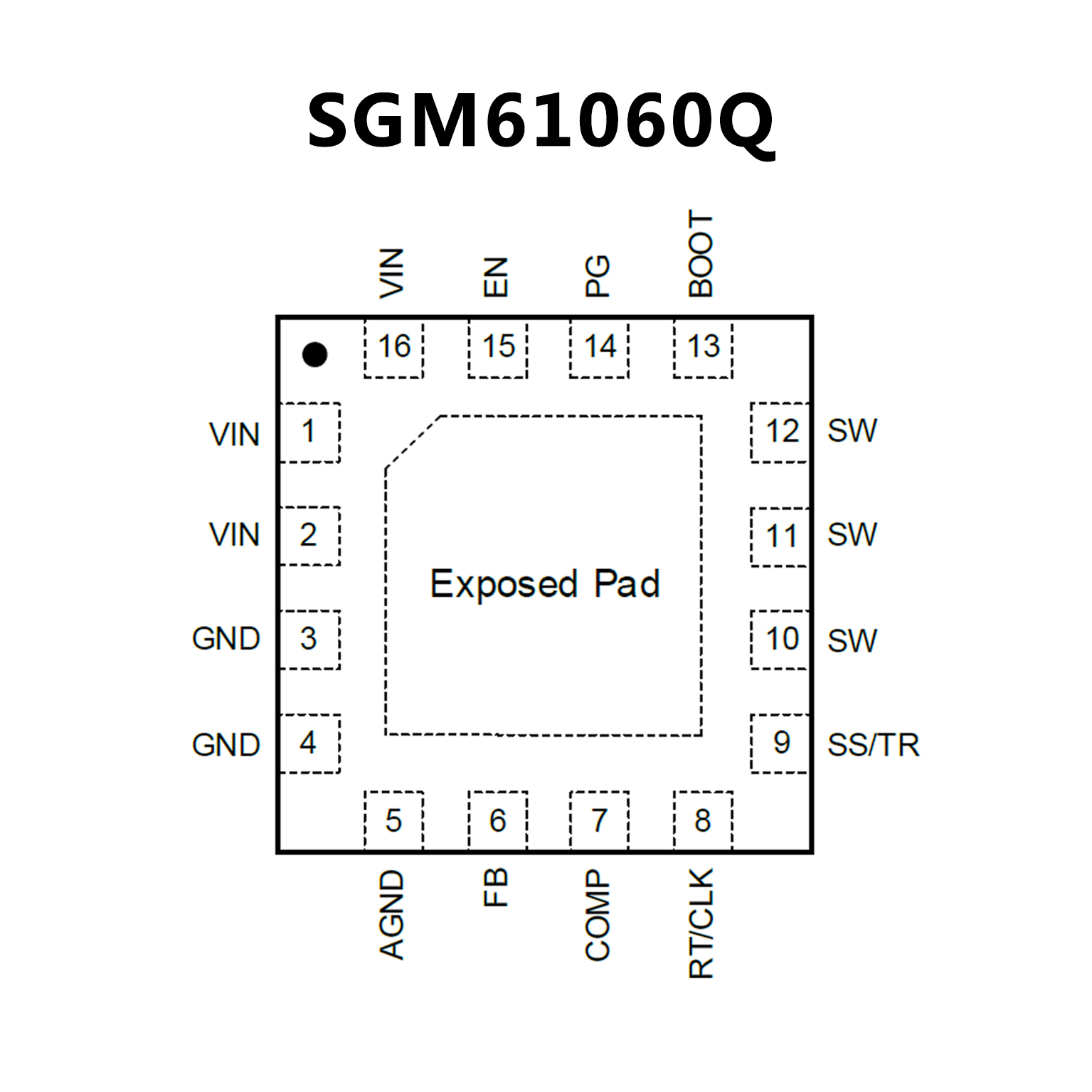

• Available in a Green TQFN-3×3-16EL Package
• AEC-Q100 qualified for automotive applications:
Temperature grade 1: -40°C to +125°C, TA
• Functional Safety-Capable
Documentation available to aid
functional safety system design
• Two 12-mΩ (typical) MOSFETs for
high efficiency at 6-A loads
• 300-kHz to 2-MHz switching frequency
• 0.8-V ±1% Voltage reference over
temperature (–40°C to +150°C)
• Synchronizes to external clock
• Adjustable slow start and sequencing
• UV and OV power-good output
• New product available: TPS62816-Q1, 6-V step-down
converter in 2-mm x 3-mm QFN package with wettable flanks

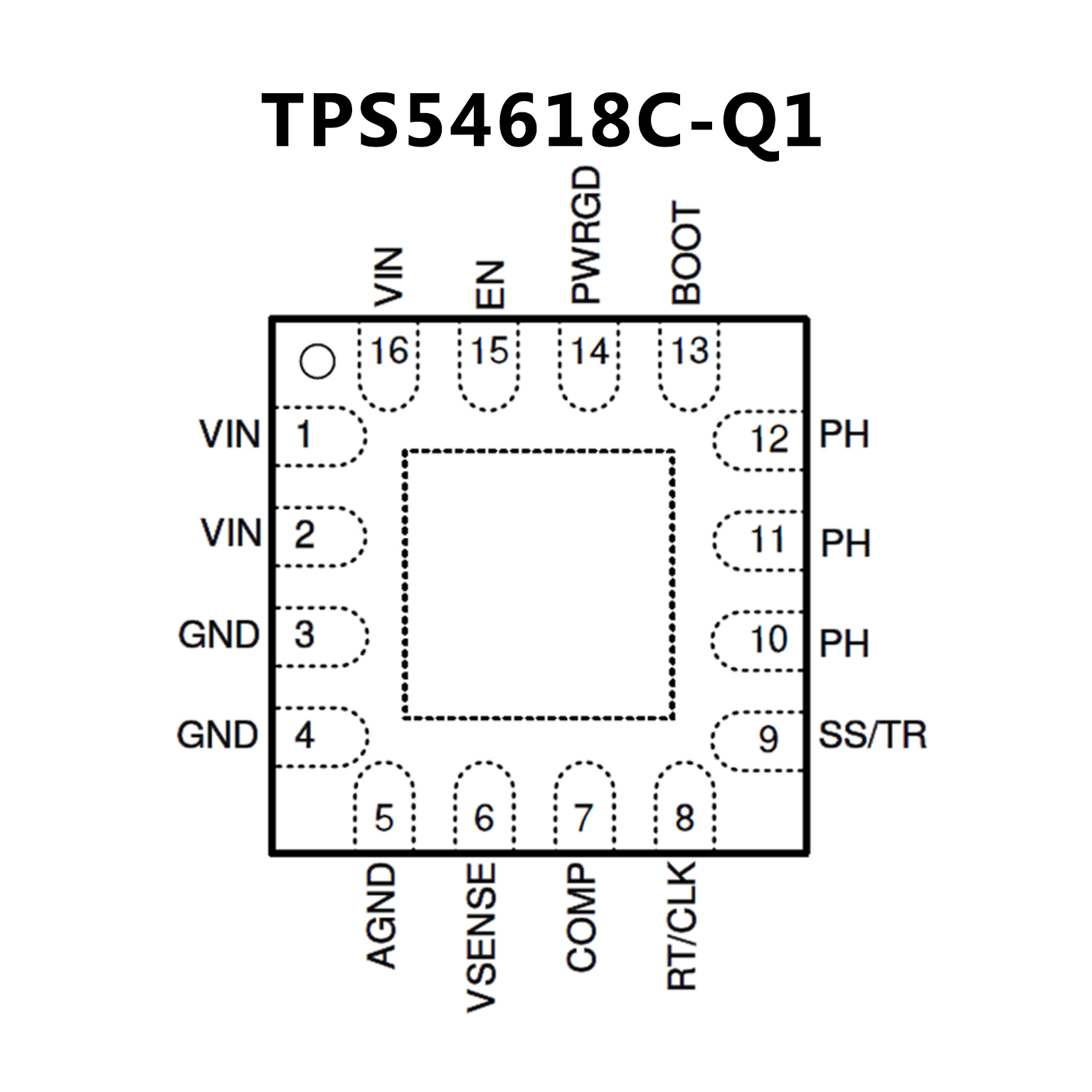

• Thermally-enhanced 3-mm × 3-mm, 16-pin WQFN package
