SGM61061.pdf• 6A Maximum Output Current
• 2.8V to 5.5V Input Voltage Range
• Low RDSON Internal Switches: 20mΩ/13mΩ
• Quiescent Current (VIN = 3.6V): 46μA (TYP)
• 1.4MHz Switching Frequency (Constant Off-Time)
• Low Dropout with 100% Duty Cycle
• External Control of Operation Mode
• External Control of VCON
• Adjustable Output Voltage from 0.6V to VIN
• Output Discharge Function
• 1.3ms of Internal Soft-Start Time and Pre-bias
Startup
• Cycle-by-Cycle Over-Current Protection
• Hiccup Mode OCP/Short-Circuit Protection
• Stable with Low-ESR Output Ceramic Capacitors
• Thermal Shutdown Protection

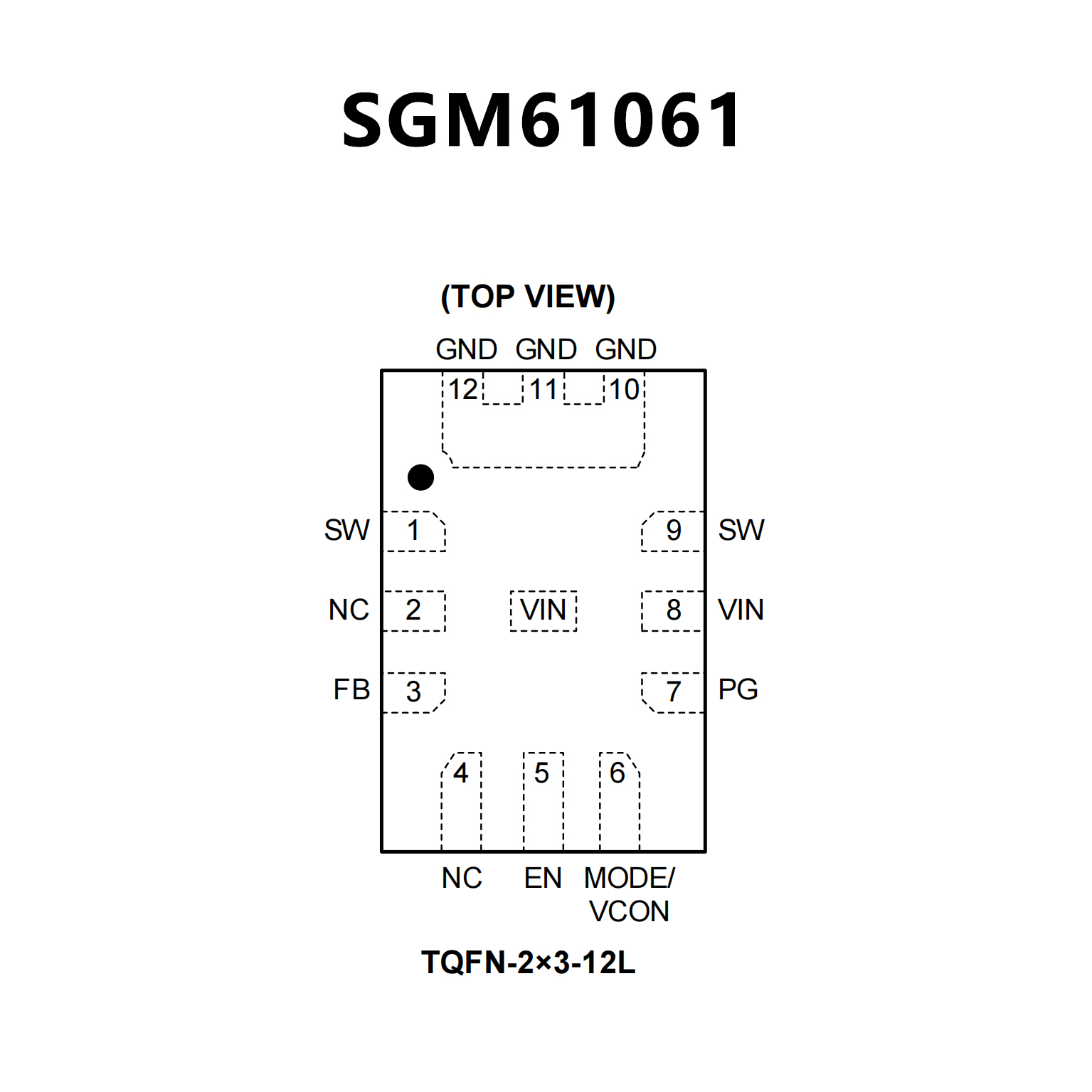

• Available in a Green TQFN-2×3-12L Package

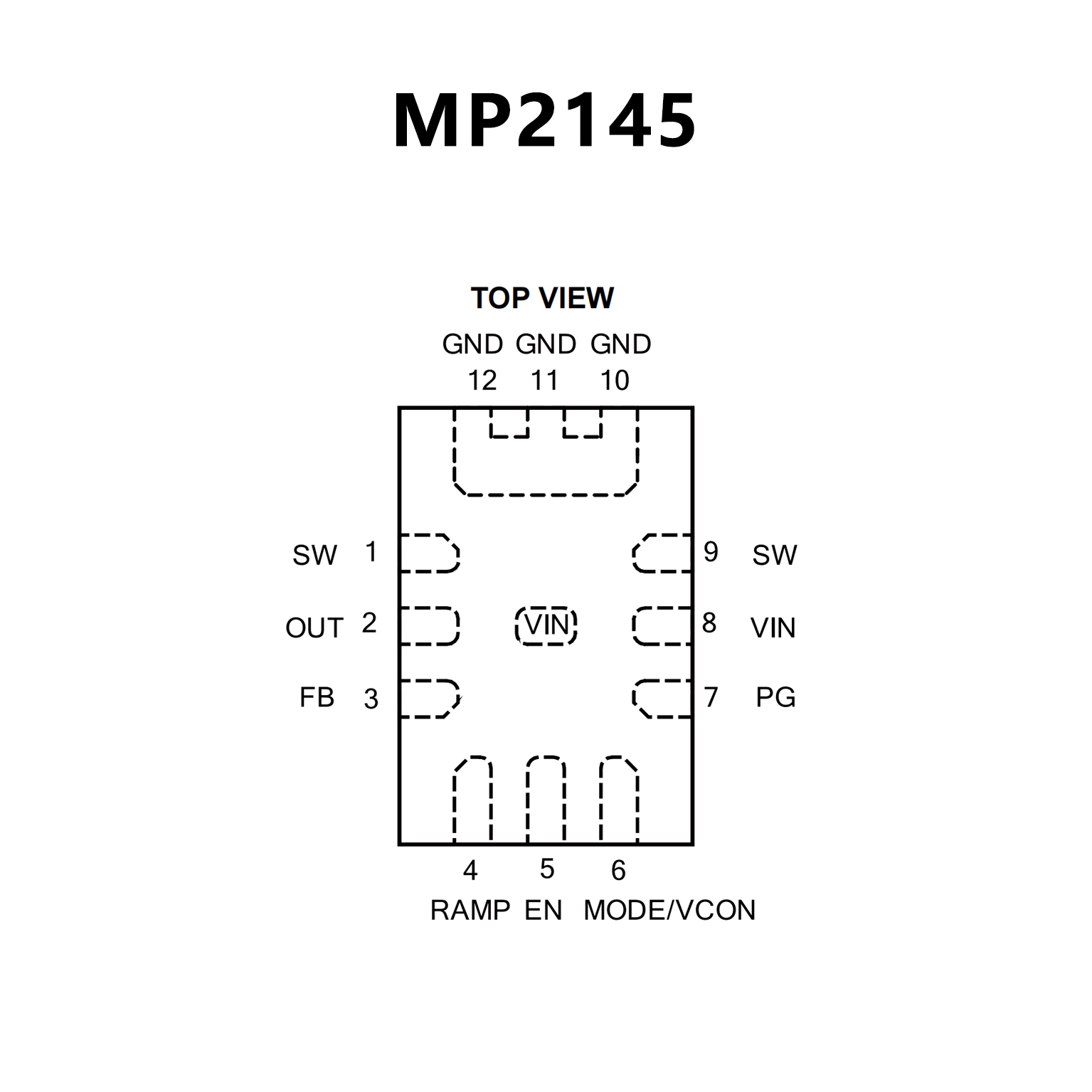

• Up to 6A Output Current
• Wide 2.8V-to-5.5V Operating Input Range
• 20mΩ and 12mΩ Internal Power MOSFETs
• 40µA Quiescent Current
• 1.2MHz Fixed Switching Frequency
• 100% Duty Cycle in Dropout
• 1% Feedback Accuracy
• External Mode Control
• External VCON Control
• Adjustable Output from 0.6V
• 1.5ms Internal SS Time with Pre-Bias Startup
• Cycle-by-Cycle Over Current Protection
• Short Circuit Protection with Hiccup Mode
• Stable with Low-ESR Output Ceramic Capacitors
• Thermal Shutdown
• Available in a 2mm×3mm QFN Package
• Output Discharge Function
