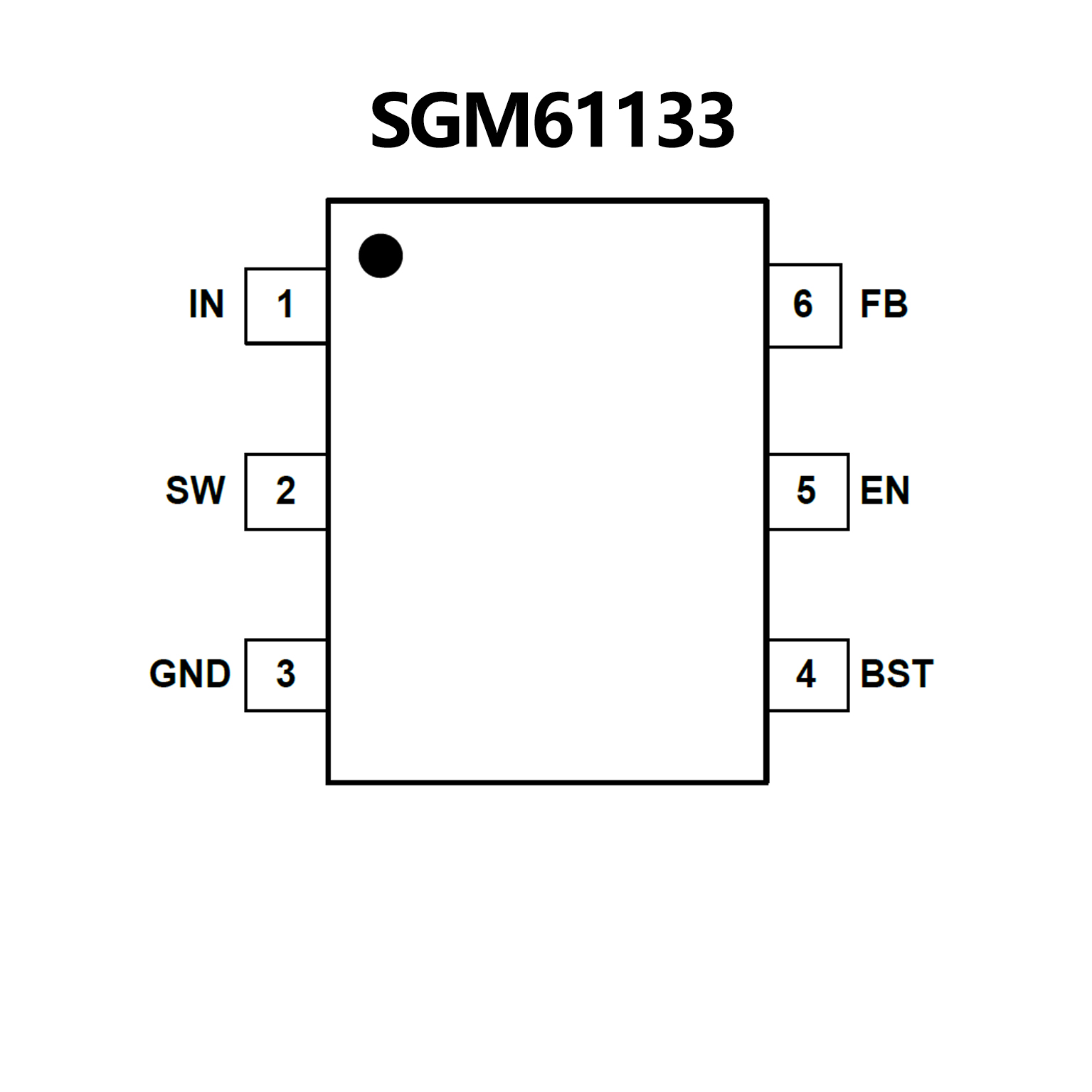

SGM61133.pdf• Wide Input Range: 4.5V to 17V
• Adaptive COT Control
• Ultra-Fast Load Transient Response
• High Efficiency PFM Mode at Light Load
• High Efficiency Synchronous Operation
• 200μA No Load IQ
• Low RDSON Internal Power FETs
• Capable of Delivering 3A
• No External Compensation Needed
• Thermal Shutdown and UVLO
• Available in a Green SOT-563-6 Package

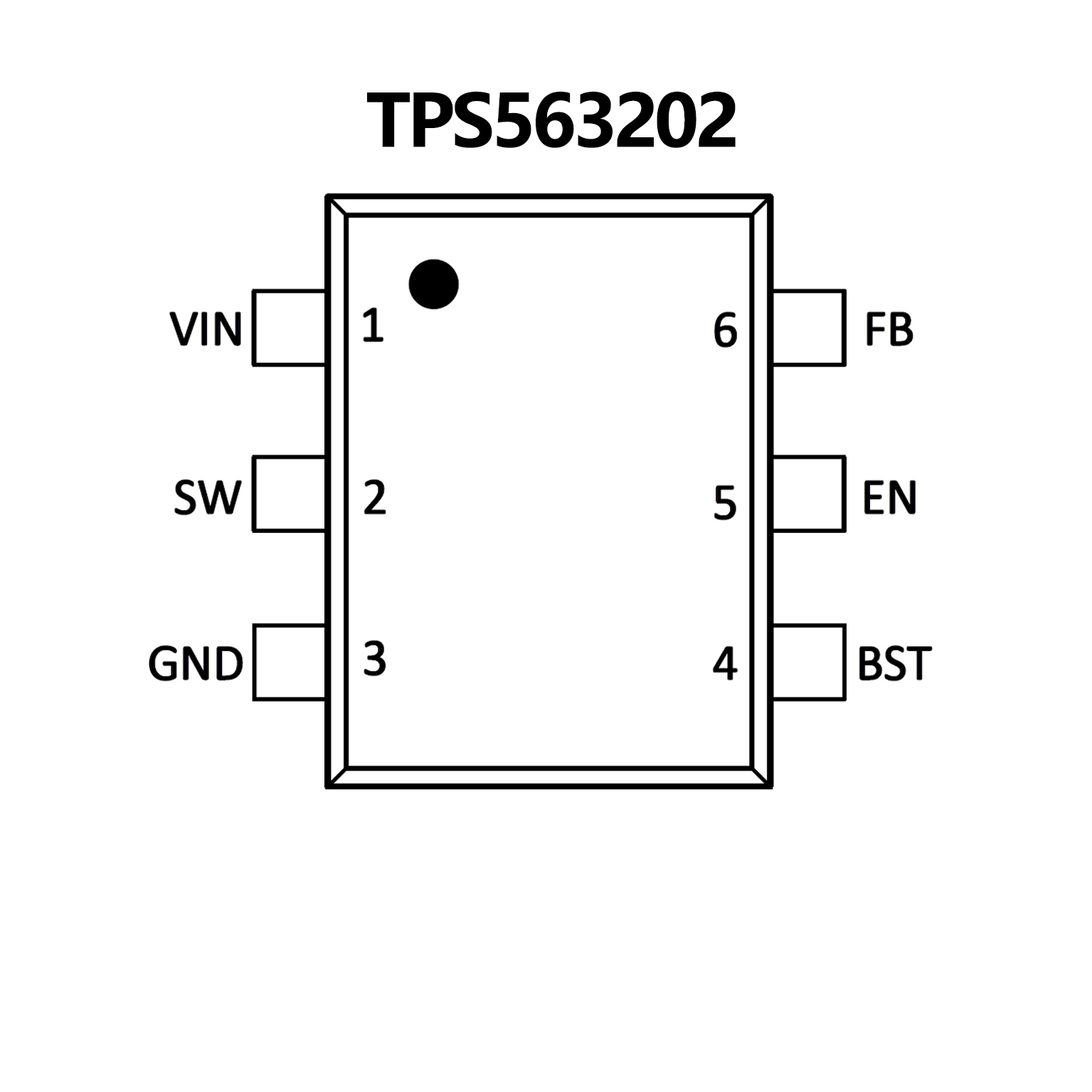

• 3-A converter integrated 95-mΩ and 57-mΩ FETs
• D-CAP2™ mode control with fast transient response
• Input voltage range: 4.3 V to 17 V
• Output voltage range: 0.806 V to 7 V
• ECO mode at light loading
• Typical 580-kHz switching frequency
• Low Shutdown current less than 3 μA
• 2% feedback voltage accuracy (25 °C)
• Provide pre-bias function
• Cycle-by-cycle over current limit
• Hiccup-mode over current protection
• Non-latch UVP and TSD protections
• Fixed soft start: 1.2 ms
