SGM61310.pdf• Documentation Available to Aid Functional
Safety System Design
• Wide 4V to 36V Input Voltage Range
• Up to 1A Continuous Output Current
• Minimum Switching On-Time: 60ns
• 700kHz Fixed Switching Frequency
• 98% Maximum Duty Cycle
• Monotonic Startup with Pre-Biased Output
• Internal Short-Circuit Protection with Hiccup Mode
• Precision Enable
• Integrated Synchronous Rectification
• Internal Compensation for Ease of Use
• Pin-to-Pin Compatible with SGM61410 and SGM61306
• SGM61310A: PSM at Light Load Condition
• SGM61310B: FPWM at Light Load Condition
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SOT-23-6 Package
• Input voltage range: 4V to 40V with Transient
protection to 45V
• 0.7MHz switching frequency
• Ultra-high efficiency at light load with Eco-mode
• Low dropout operation
• Output current up to 1A
• Precision enable input
• Overcurrent protection
• Internal compensation
• Internal soft start

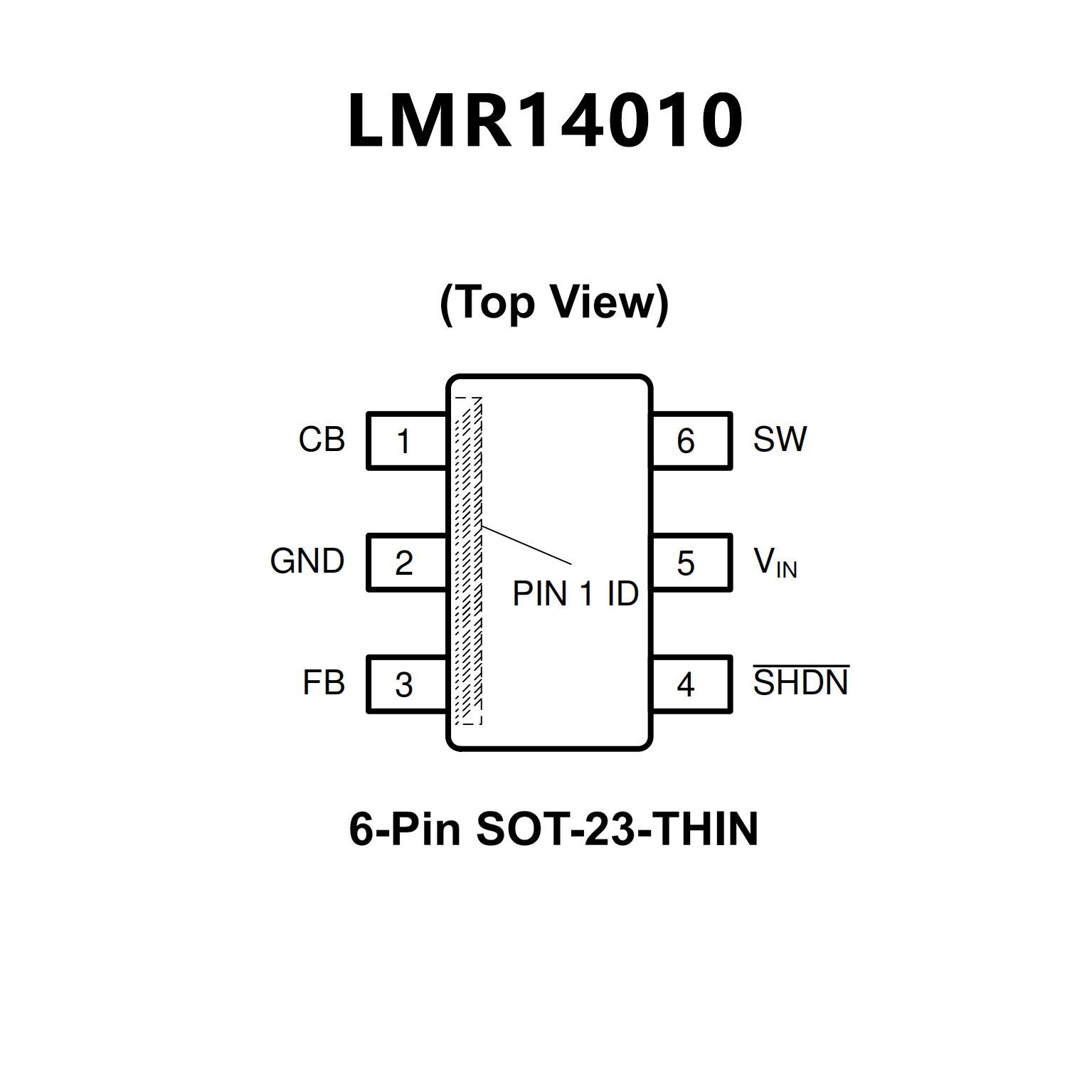

• Small overall design size (TSOT-6L package)
• Create a custom design using the LMR14010A
with the WEBENCH® Power Designer
