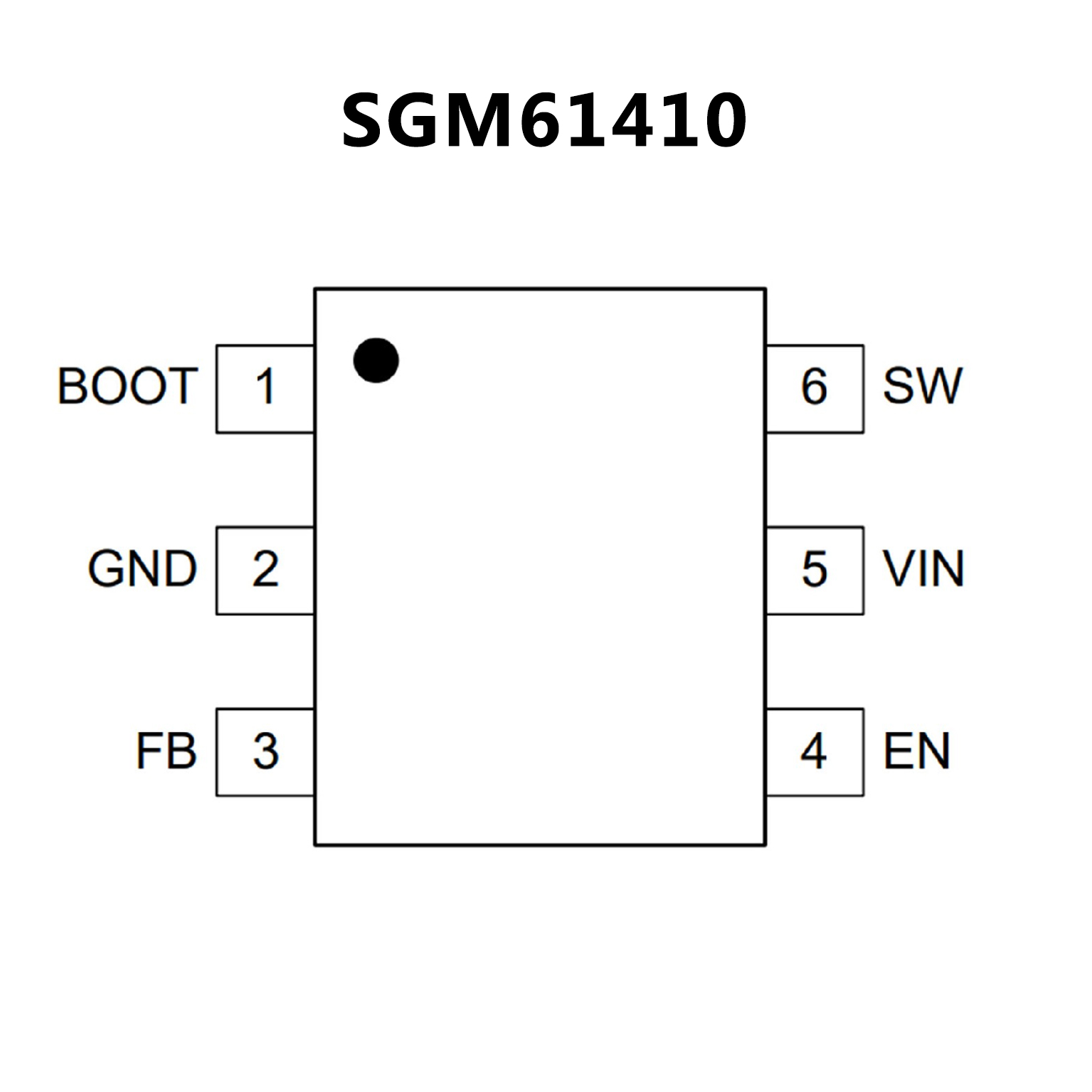

SGM61410.pdf• Wide 5V to 45V Operating Input Voltage Range
• Low Quiescent Current: 14μA (TYP)
• 0.8μA (TYP) Shutdown Current
• Current Output up to 600mA
• Internal Synchronous Rectifier
• 1.2MHz Switching Frequency
• Compensation Inside and Internal Soft-Start
• Up to 95% Efficiency at 12V/400mA
• 0.8V to 20V Adjustable Output Voltage
• Current Limit and Short-Circuit Protection
• Output Over-Voltage Protection and ThermalShutdown
• Available in Green SOT-23-6 Package
• -40℃ to +125℃ Operating Temperature Range
• New product available:
LMR43610 3 to 36-V, 1-A, 200-kHz to 2.2-MHz
synchronous converter
• For faster time to market:
TLVM23615 3 to 36-V, 1.5-A, 200-kHz to 2.2-MHz
power module

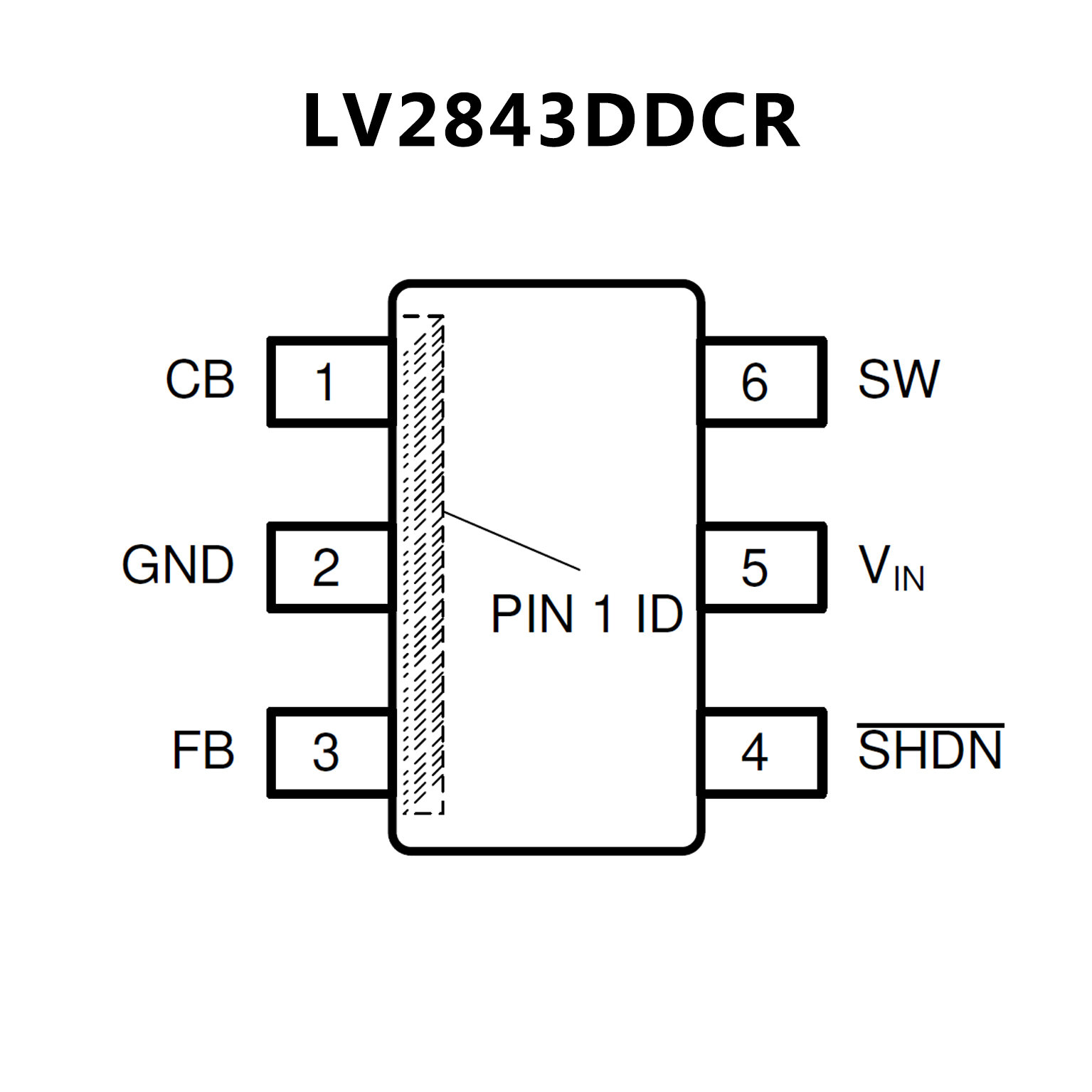

• Input range 4 V to 40 V with 45-V transients
• 0.7-MHz switching frequency
• Ultra-high efficiency for light load with Eco-mode
• Low dropout operation
• Output current up to 1A
• Precision enable input
• Overcurrent protection
• Internal compensation
• Internal soft start
• Small overall solution size (TSOT-6L package)
