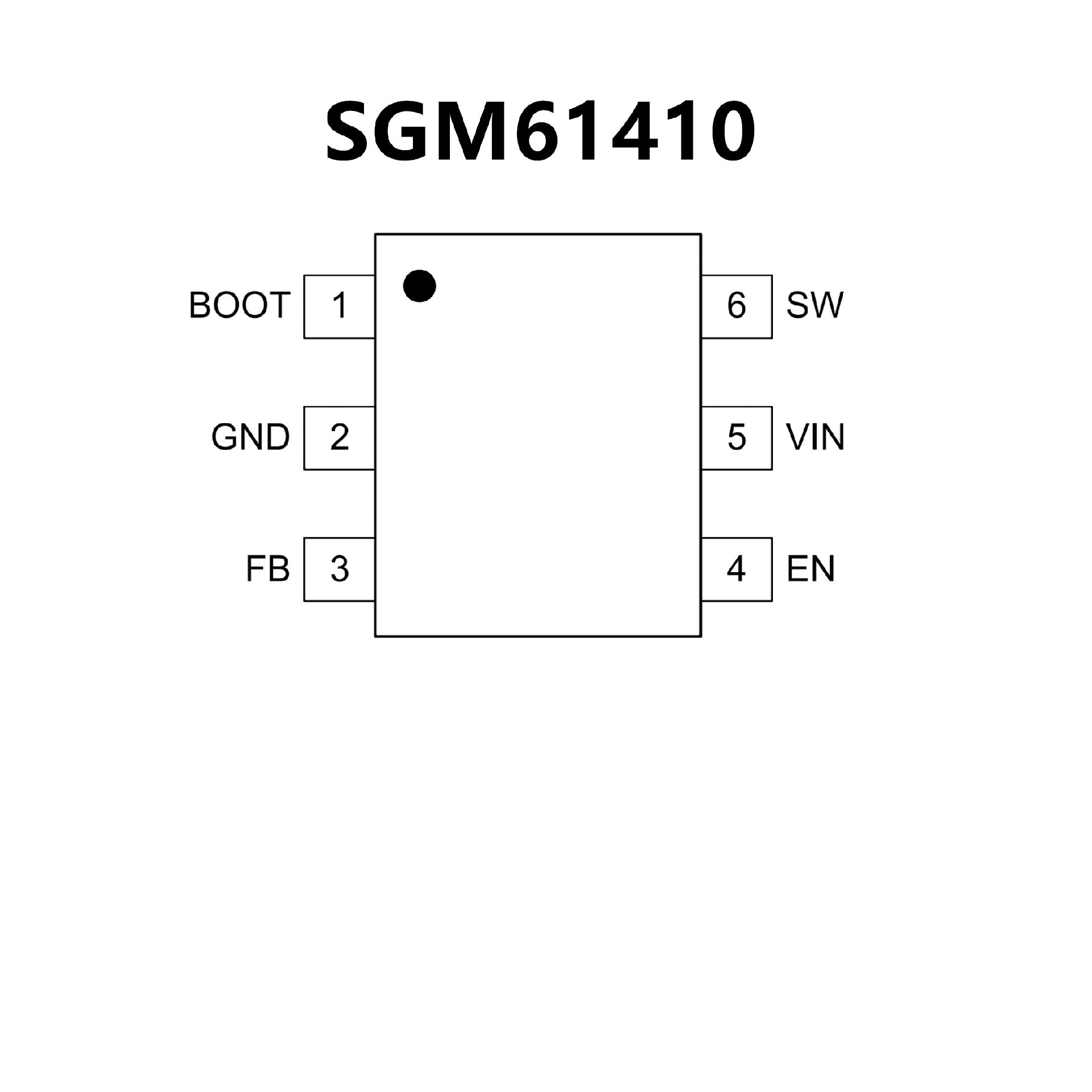

SGM61410.pdf• Wide 5V to 42V Operating Input Voltage Range
• 0.8V Internal Reference
• Low Quiescent Current: 14μA (TYP)
• Shutdown Current: 0.6μA (TYP)
• Current Output up to 600mA
•1.2MHz Switching Frequency
• Internal Compensation and Soft-Start
• Simple Design and Minimal External Components
• Up to 95% Efficiency at 12V/400mA
• 0.8V to 20V Adjustable Output Voltage
• Current Limit and Short-Circuit Protection
• Output Over-Voltage Protection and ThermalShutdown
• Power-Save Mode and PWM Mode Operation
• Monotonic Startup with Pre-biased Output
• 90% Maximum Duty Cycle
• Available in a Green SOT-23-6 Package
• -40℃ to +125℃ Operating Temperature Range

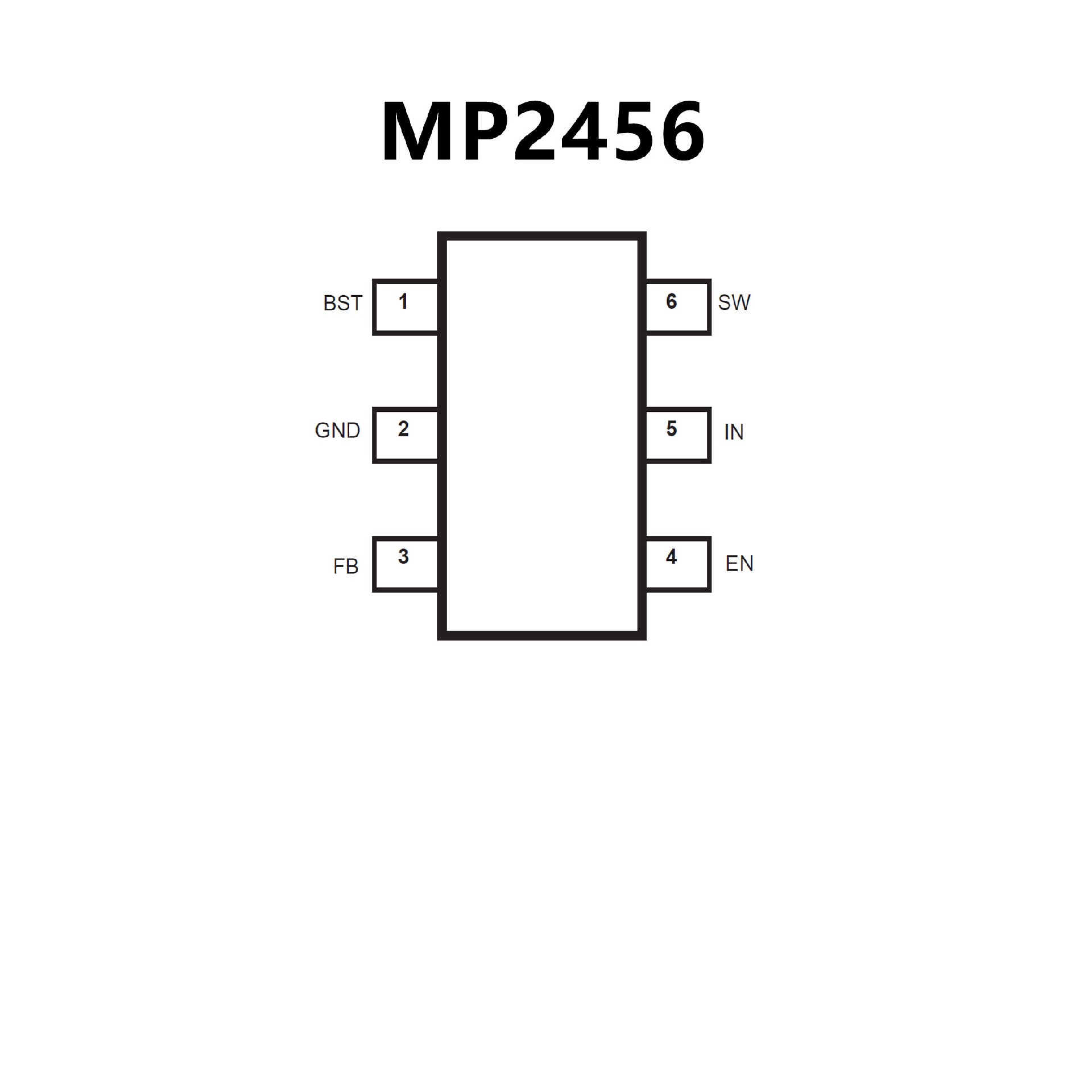

• 0.5A Peak Output Current
• 1Ω Internal Power MOSFET
• Capable to Start Up with Big Output Capacitor
• Stable with Low-ESR Ceramic Output Capacitors
• Up to 90% Efficiency
• 0.1μA Shutdown Mode
• Fixed 1.2MHz Frequency
• Thermal Shutdown
• Cycle-by-Cycle Over-Current Protection
• Wide 4.5V-to-50V Operating Input Range
• Output Adjustable from 0.81V to 0.9xVIN
• Available in a TSOT23-6 Package
