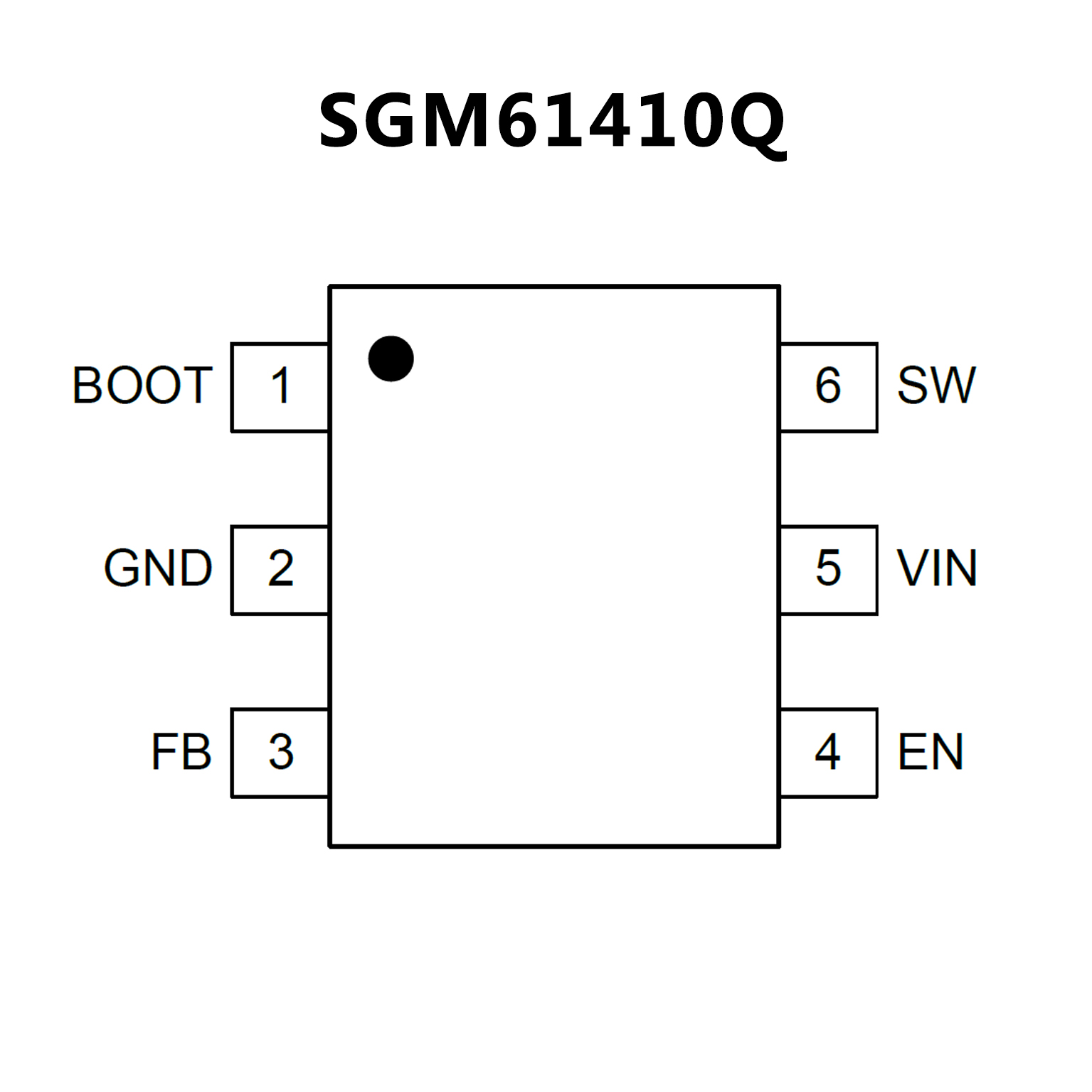

SGM61410Q.pdf• AEC-Q100 (Grade1) Qualified for Automotive Applications
TA = -40℃ to +125℃
• Wide 5V to 42V Operating Input Voltage Range
• 0.809V Internal Reference
• Low Quiescent Current: 14μA (TYP)
• Shutdown Current: 0.7μA (TYP)
• Current Output up to 600mA
• 1.2MHz Switching Frequency
• Internal Compensation and Soft-Start
• Up to 95% Efficiency at 12V/400mA
• Current Limit and Short-Circuit Protection
• Output Over-Voltage Protection and Thermal Shutdown
• Power-Save Mode at Light Load
• Monotonic Startup with Pre-biased Output
• 90% Maximum Duty Cycle
• Available in a Green SOT-23-6 Package
• AEC-Q100 qualified
• Temperature grade 1: –40°C to 125°C ambient
operating temperature range
• Functional Safety-Capable
• Documentation available to aid
functional safety system design
• Configured for rugged automotive applications
• Input voltage range: 4 V to 36 V
• 1-A continuous output current
• Minimum switching-on time: 60 ns
• 2.1-MHz fixed switching frequency
• Junction temperature range: –40°C to 150°C
• 98% maximum duty cycle
• Monotonic start-up with pre-biased output
• Internal short circuit protection with hiccup mode
• ±1% tolerance voltage reference
• Precision enable
• Small solution size and ease of use
• Integrated synchronous rectification
• Internal compensation for ease of use
• SOT-23-6 package
• Pin-to-pin compatible with TPS560430-Q1
• Various options in pin-to-pin compatible package
• PFM and forced PWM (FPWM) options
• Fixed 3.3-V and 5.0-V output option

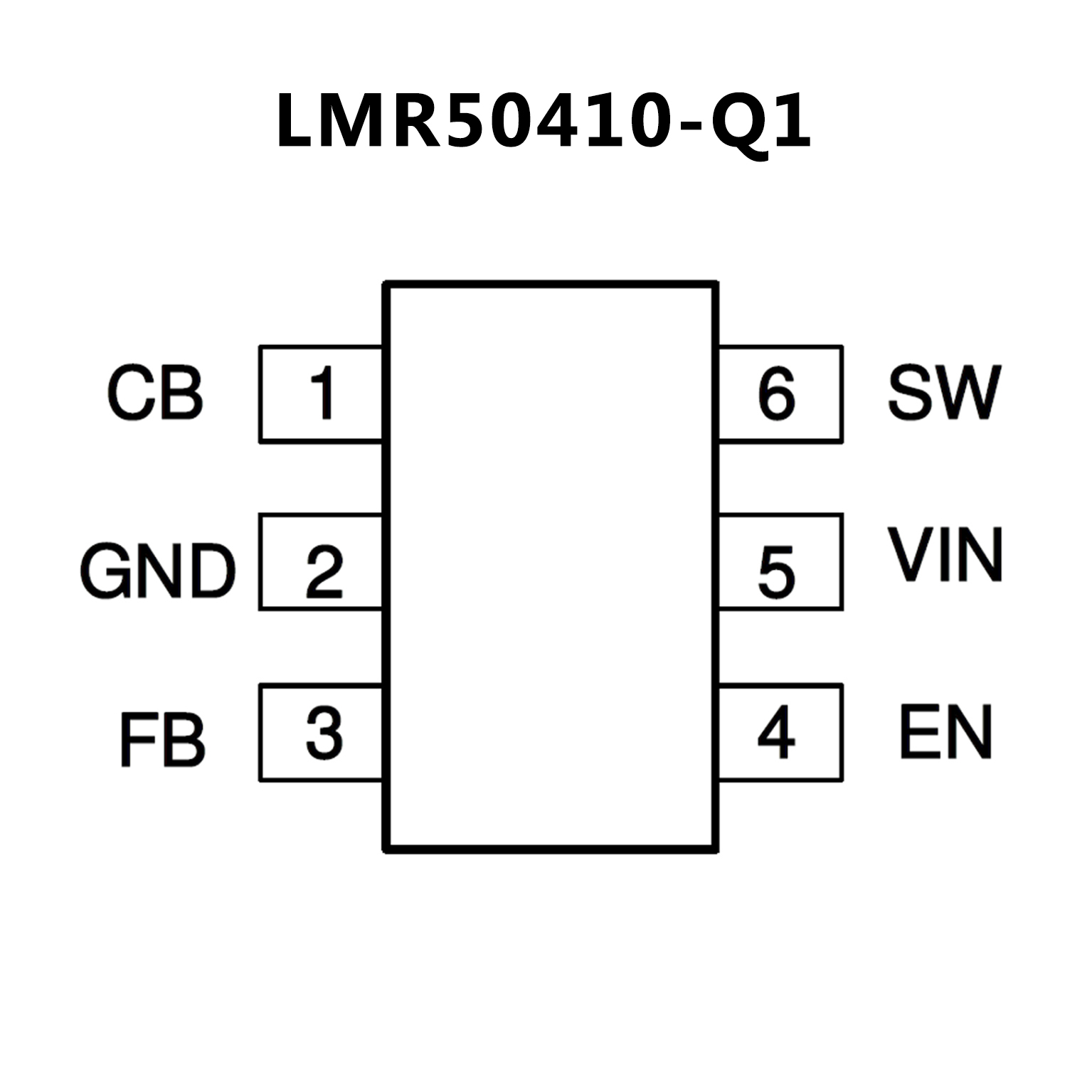

• Create a custom design using the LMR50410-Q1
with the WEBENCH® Power Designer
