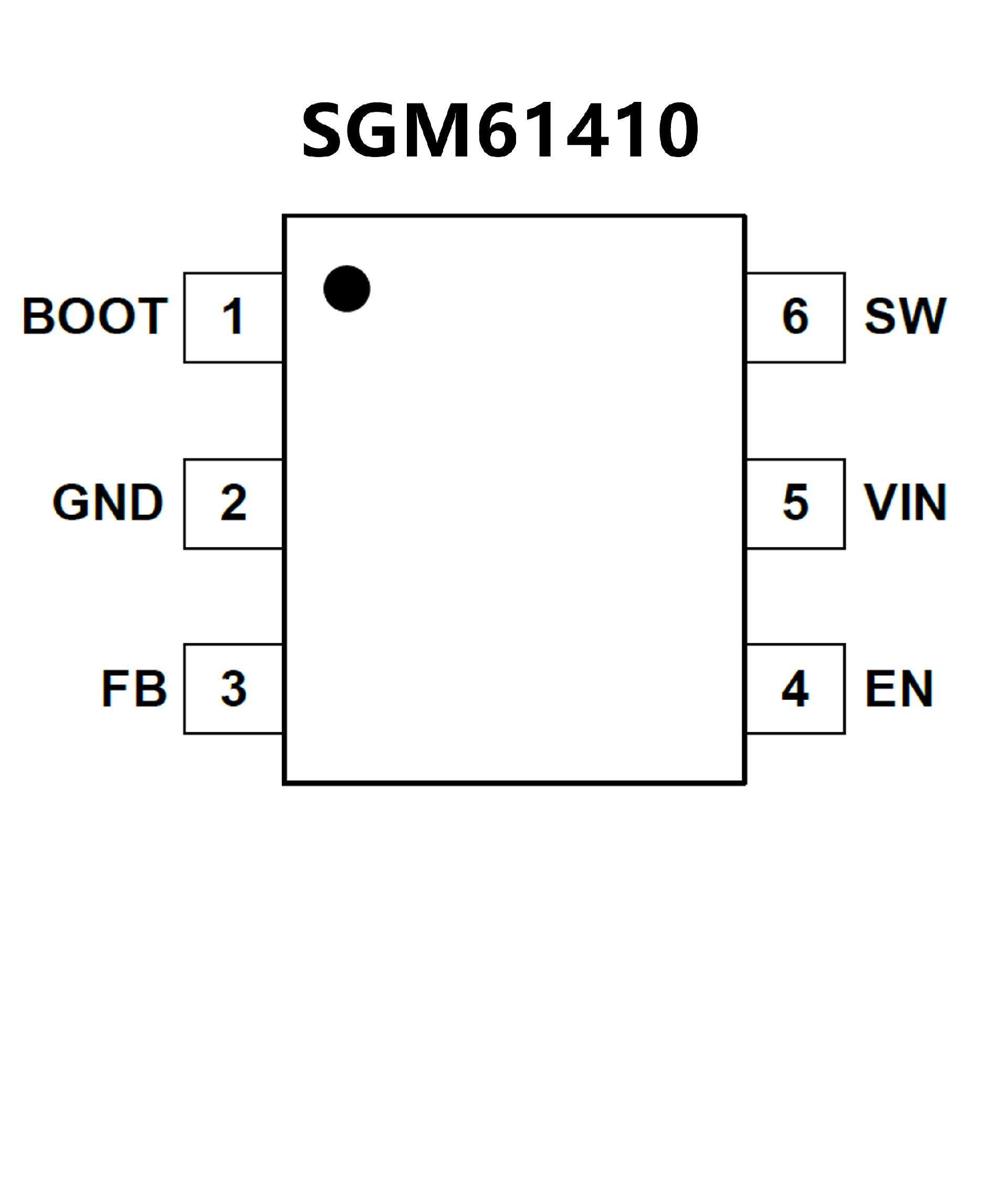

SGM61410.pdf• Wide 5V to 42V Operating Input Voltage Range
• 0.8V Internal Reference
• Low Quiescent Current: 14μA (TYP)
• Shutdown Current: 0.6μA (TYP)
• Current Output up to 600mA
• 1.2MHz Switching Frequency
• Internal Compensation and Soft-Start
• Simple Design and Minimal External Components
• Up to 95% Efficiency at 12V/400mA
• 0.8V to 20V Adjustable Output Voltage
• Current Limit and Short-Circuit Protection
• Output Over-Voltage Protection and Thermal
Shutdown
• Power-Save Mode and PWM Mode Operation
• Monotonic Startup with Pre-biased Output
• 90% Maximum Duty Cycle
• Available in a Green SOT-23-6 Package
• -40℃ to +125℃ Operating Temperature Range
• Configured for Rugged Industrial Applications

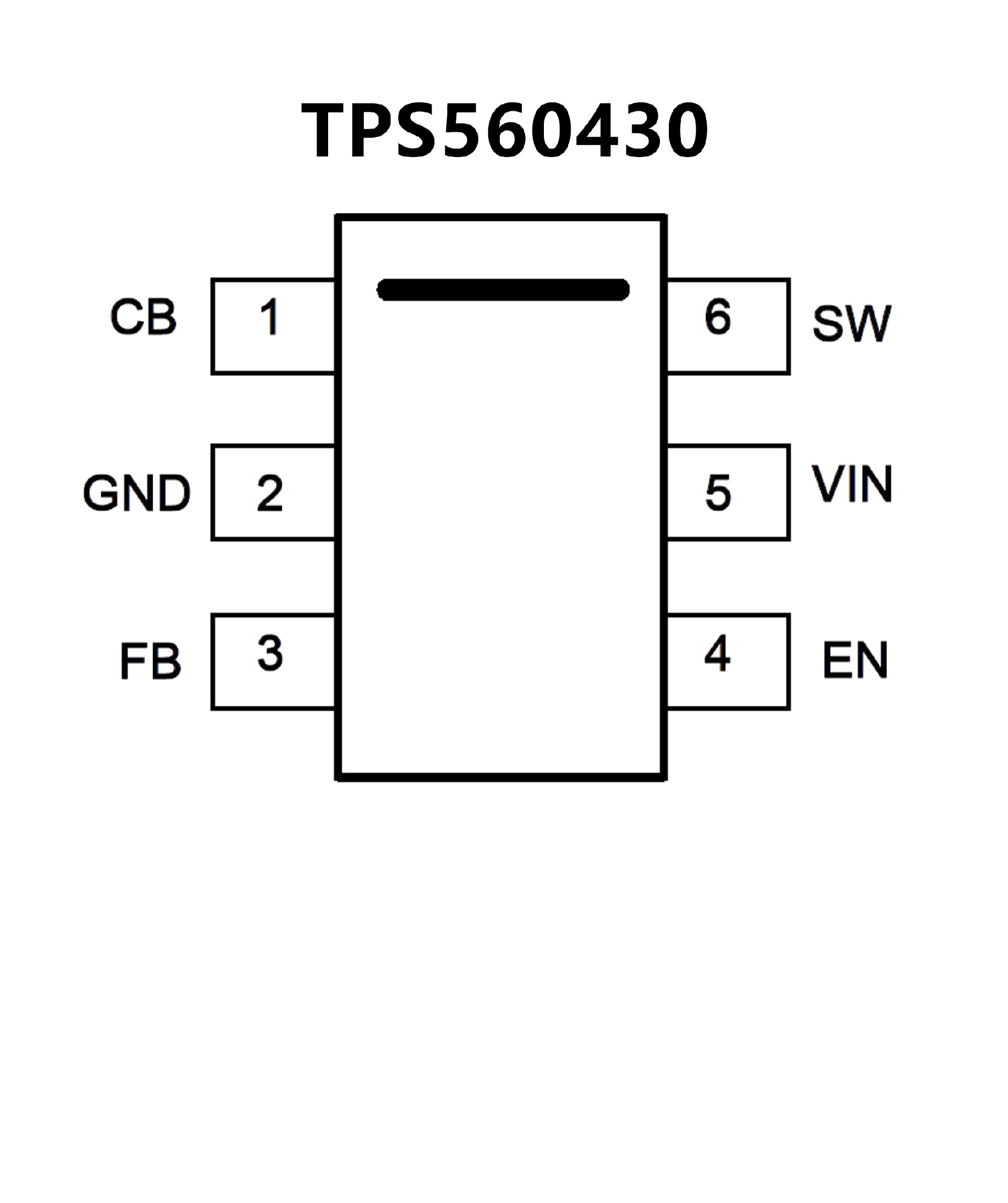

Input Voltage Range: 4 V to 36 V
600-mA Continuous Output Current
Minimum Switching-On Time: 60 ns
98% Maximum Duty Cycle
Support Startup with Pre-Biased Output
Short Circuit Protection with Hiccup Mode
±1.5% Tolerance Voltage Reference over
Temperature from –40°C to 125°C
Precision Enable
• Small Solution Size and Ease of Use
Integrated Synchronous Rectification
Internal Compensation for Ease of Use
SOT-23-6 Package
• Various Options in Pin-to-Pin Compatible Package
1.1-MHz and 2.1-MHz Frequency Options
PFM and Forced PWM (FPWM) Options
Fixed 3.3-V Output Option
• Create a Custom Design Using the TPS560430
With the WEBENCH® Power Designer
