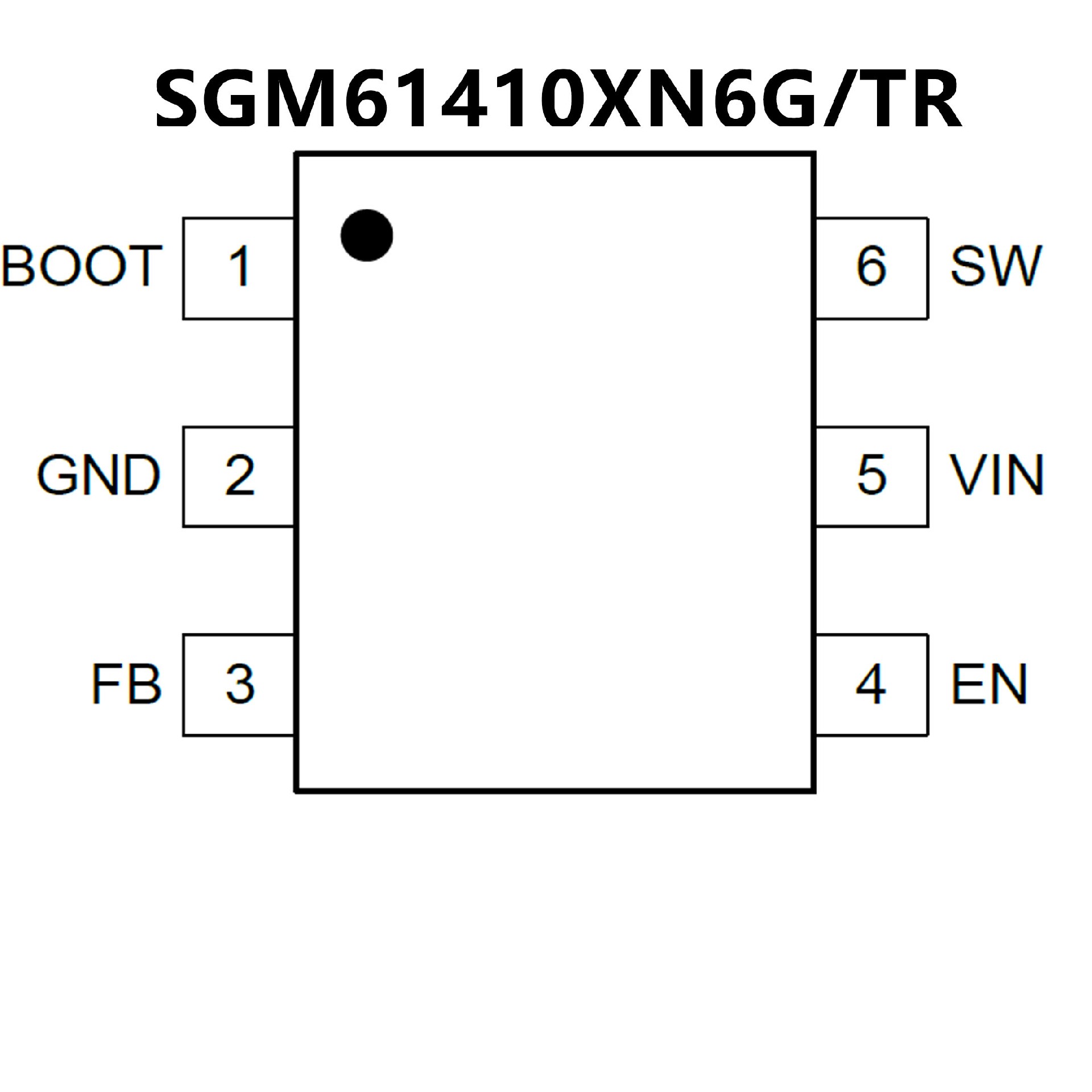

SGM61410XN6GTR.pdf• Wide 5V to 45V Operating Input Voltage Range
• Low Quiescent Current: 14μA (TYP)
• 0.8μA (TYP) Shutdown Current
• Current Output up to 600mA
• Internal Synchronous Rectifier
• 1.2MHz Switching Frequency
• Compensation Inside and Internal Soft-Start
• Up to 95% Efficiency at 12V/400mA
• 0.8V to 20V Adjustable Output Voltage
• Current Limit and Short-Circuit Protection
• Output Over-Voltage Protection and Thermal Shutdown
• Available in Green SOT-23-6 Package
• -40℃ to +125℃ Operating Temperature Range

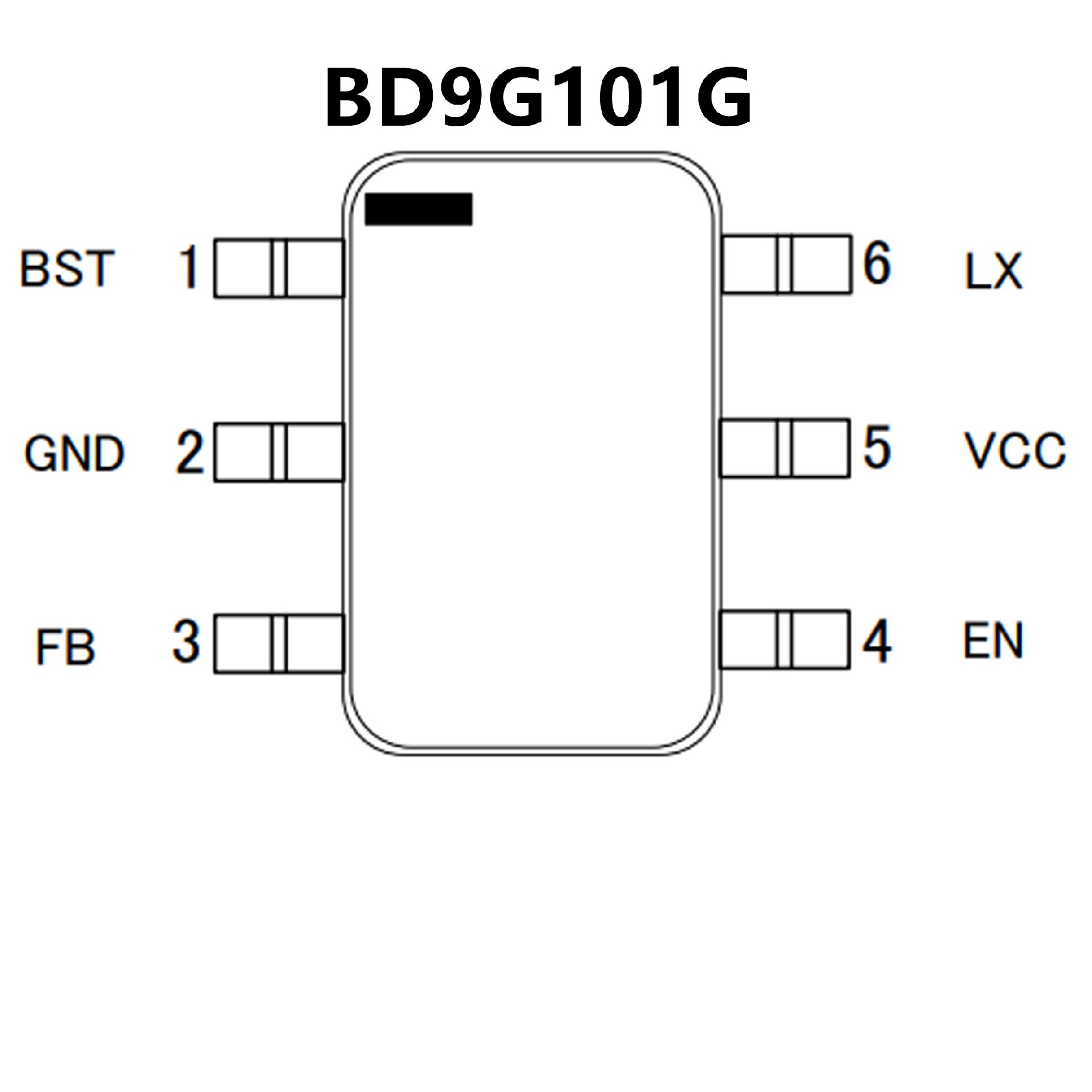

• High and Wide Input Range (VCC=6V~42V)
• 45V/800mΩ Internal Power MOSFET
• 1.5MHz Fixed Operating Frequency
• Feedback Pin Voltage 0.75V±1.5%
• Internal compensated
• Internal Over Current protection,
Under
Voltage Locked Out, Thermal shutdown
• 0μA Shutdown Supply Current (Ist=0μA)
• Small package SSOP6
