1.2MHz, 1.2A, 42V Synchronous Step-Down Converter, SGM61412 Replace GMR2810.
SGM61412
SGM61412.pdf
SGM61412.pdfFEATURES
• Wide 4.5V to 42V Input Voltage Range
• Current Output up to 1.2A
• 1.2MHz Switching Frequency
• 0.83V Internal Reference
• SGM61412A:PSM and PWM Mode
• SGM61412B: PFM and PWM Mode
• Low Quiescent Current: 55μA (TYP)
• Ultra-Low Shutdown Current: 1.2μA (TYP)
• 0.83V to 20V Adjustable Output Voltage
• Internal Compensation and Soft-Start
• Precision Enable Function with UVLO Setting
• Monotonic Startup with Pre-biased Output
• Thermal Shutdown Protection
• Available in a Green TSOT-23-6 Package
• -40℃ to +125℃ Operating Temperature Range

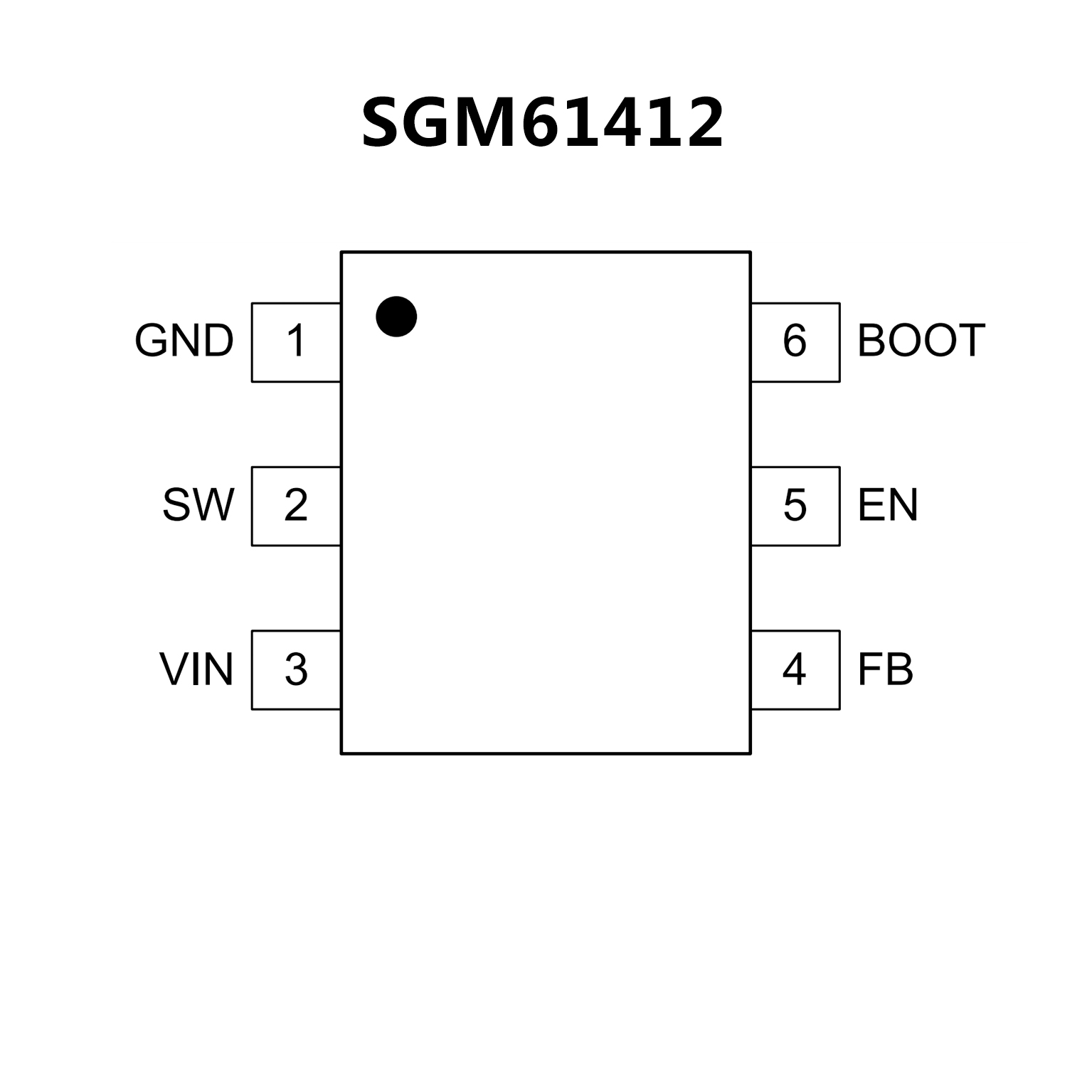

PIN CONFIGUTION
