• 4.5 V to 42 V (45 V Abs Max) Input Range

• 3.5 A Continuous Current, 4.5 A Minimum Peak

  Inductor Current Limit

• Current Mode Control DC-DC Converter

• 92-mΩ High-Side MOSFET

• High Efficiency at Light Loads with Pulse Skipping

  Eco-mode™

• Low Dropout at Light Loads with Integrated BOOT

  Recharge FET

• 146 μA Operating Quiescent Current

• 1 μA Shutdown Current

• 100 kHz to 2.5 MHz Fixed Switching Frequency

• Synchronizes to External Clock

• Adjustable UVLO Voltage and Hysteresis

• Internal Soft-Start

• Accurate Cycle-by-Cycle Current Limit

• Thermal, Overvoltage, and Frequency Foldback

  Protection

• 0.8 V 1% Internal Voltage Reference

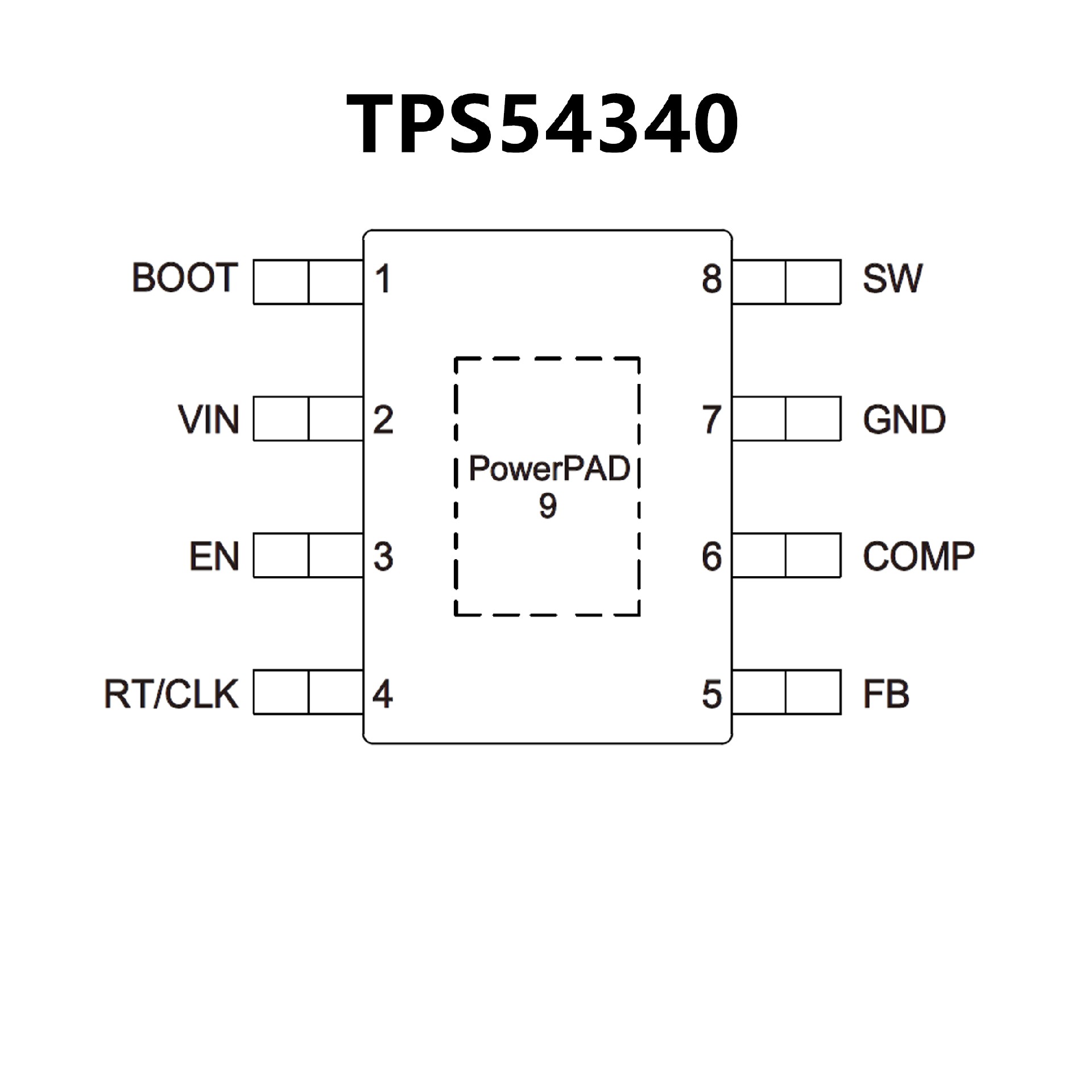

• 8-Terminal HSOP with PowerPAD™ Package

• –40°C to 150°C TJ Operating Range

• Create a Custom Design with WEBENCH Tools
