• Qualified for Automotive Applications

• Device Temperature Grade 1: -40 °C to

  125 °C Ambient Operating Temperature Range

• Device HBM ESD Classification Level H1C

• Device CDM ESD Classification Level C4A

• 4 V to 40 V Input Range

• 3.5 A Continuous Output Current

• Ultra-low 40 µA Operating Quiescent Current

• 90 mΩ High-Side MOSFET

• Minimum Switch-On Time: 75 ns

• Current Mode Control

• Adjustable Switching Frequency from 200 kHz to 2.5 MHz

• Frequency Synchronization to External Clock

• Spread Spectrum Option for Reduced EMI

• Internal Compensation for Ease of Use

• High Duty Cycle Operation Supported

• Precision Enable Input

• 1 µA Shutdown Current

• External Soft-start

• Thermal, Overvoltage and Short Protection

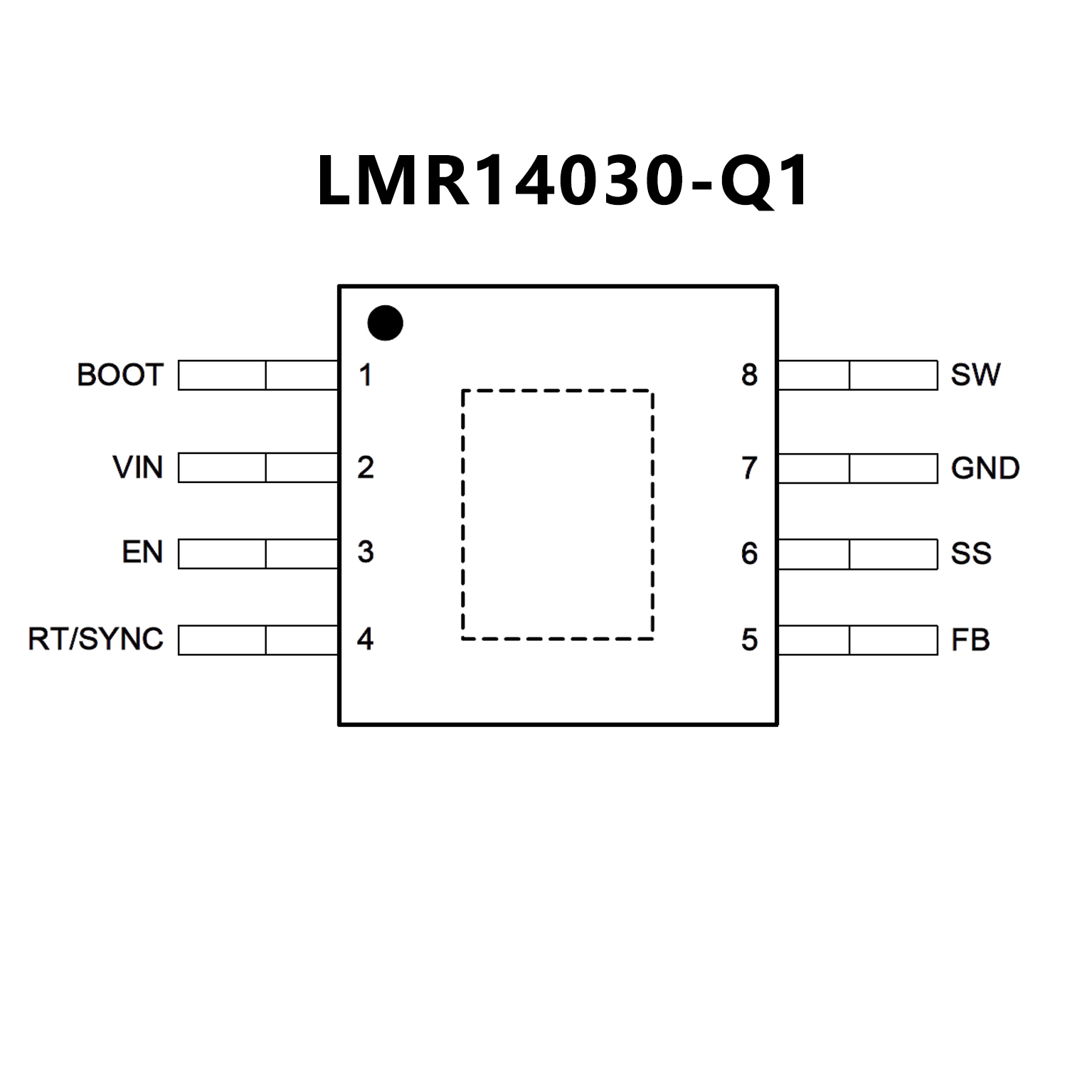

• 8-Pin HSOIC with PowerPAD™ Package
