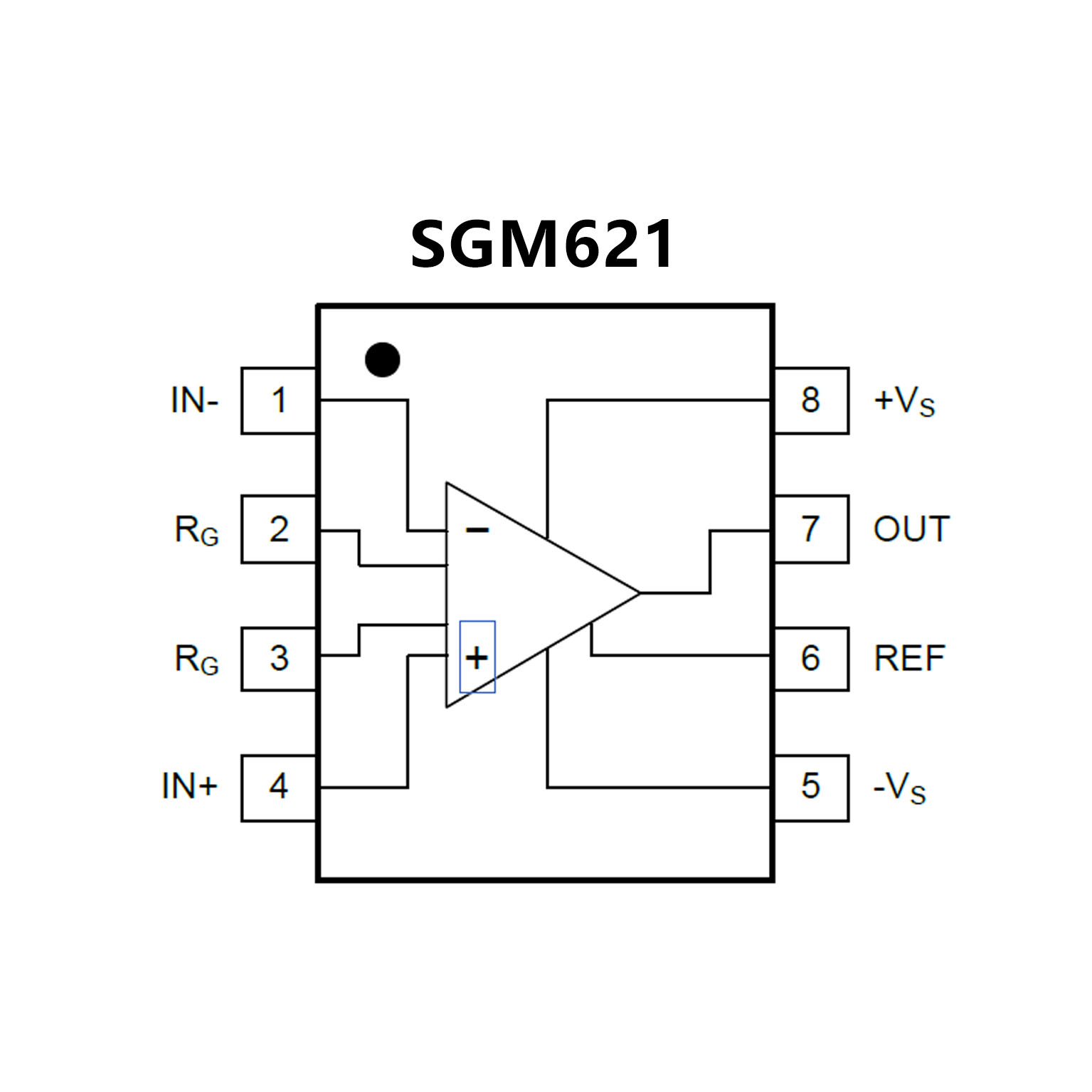

SGM621.pdf• Single External Resistor Gain Set (Set Gain from 1 to 10000)
• Input Offset Voltage: 150μV (MAX)
• Input Bias Current: 15nA (TYP)
• Common Mode Rejection Ratio: 105dB (TYP) (G = 10)
• Input Voltage Noise: 6nV/√Hz at 1kHz
• 0.1Hz to 10Hz Voltage Noise: 0.4μVP-P
• Bandwidth: 140kHz (G = 100)
• Settling Time to 0.01%: 10μs (G = 100)
• Rail-to-Rail Output
• Support Single or Dual Power Supplies: 4.6V to 36V or ±2.3V to ±18V
• Low Power Supply Current: 1.3mA (TYP)
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-8 and MSOP-8 Packages
• Gain set with 1 external resistor
• Gain range: 1 to 1000
• Input voltage goes below ground
• Inputs protected beyond supplies
• Very wide power supply range
• Single supply: 2.2 V to 36 V
• Dual supplies: ±1.35 V to ±18 V
• Bandwidth (G = 1): 1.5 MHz
• CMRR (G = 1): 90 dB minimum for BR models
• Input noise: 22 nV/√Hz
• Typical supply current: 350 μA
• Specified temperature: −40°C to +125°C
• 8-lead SOIC and MSOP packages
