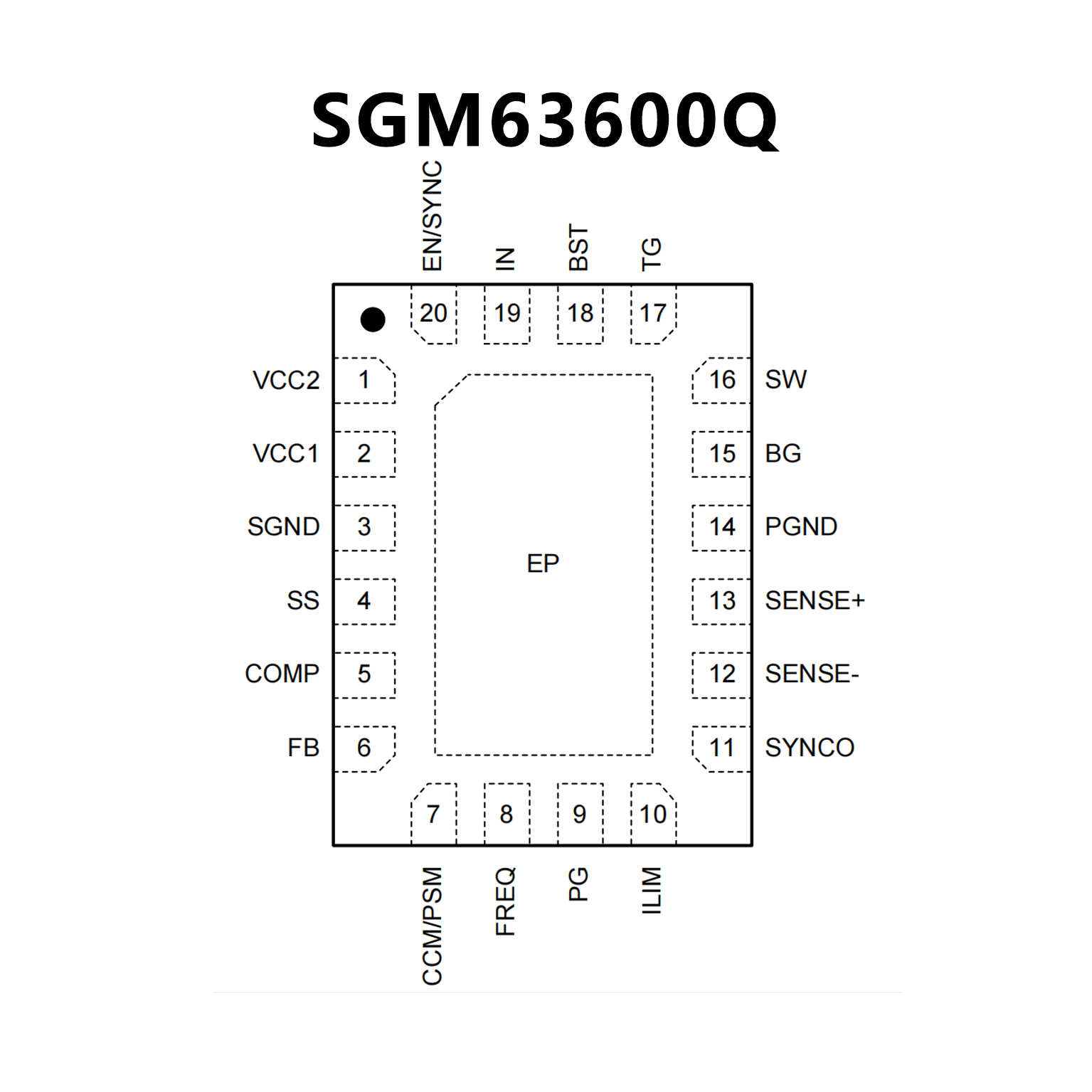

SGM63600Q.pdf• AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1:
TA = -40℃ to +125℃
• Integrated Dual N-MOSFET Drivers
• Wide 4V to 60V Input Voltage Range
• 100kHz to 1MHz Adjustable Frequency Range
• Synchronous Output (SYNCO) with 180º Phase
Shift
• Up to 99% Duty Cycle in Low Dropout Mode
• Adjustable Soft-Start with Pre-biased Capability
• Adjustable UVLO Protection through EN Input
• Power Good (PG) Indicator
• External Power Supply (VCC2) for Internal LDO
• Programmable PSM and CCM Operations
• Adjustable Cycle-by-Cycle Current Limit
• Hiccup Mode Current Limit
• Thermal Shutdown
• OVP and OCP Output Protections
• Frequency Fold-back Short Circuit Protection
• Available in a Green TQFN-3×4-20AL Package

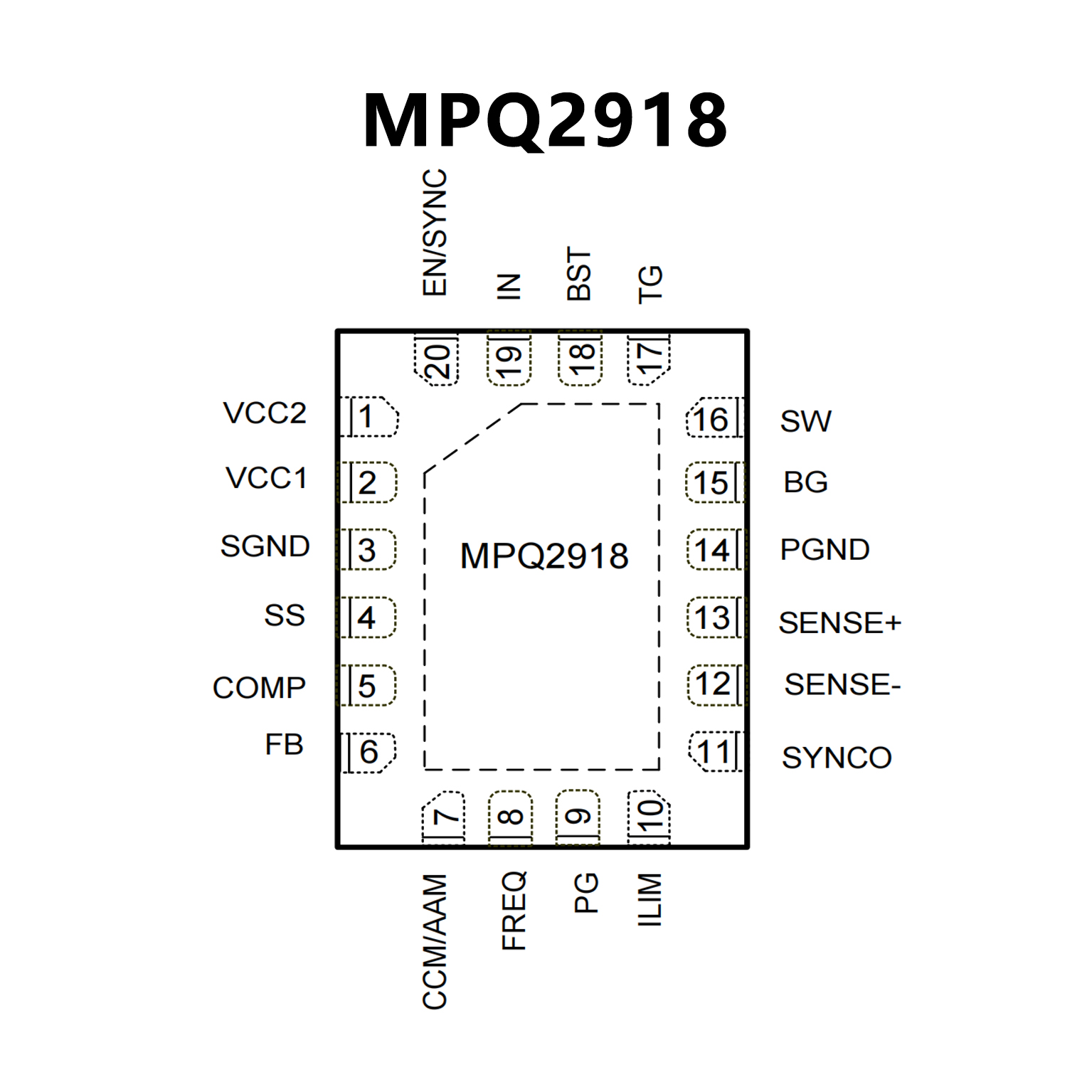

• Wide 4V to 40V Operating Input Range
• Dual N-Channel MOSFET Driver
• 0.8V Voltage Reference with ±1.5%
Accuracy Over Temperature
• Low Dropout Operation: Maximum Duty
Cycle at 99.5%
• Programmable Frequency Range: 100kHz -1000kHz
• External Sync Clock Range: 100kHz -1000kHz
• 180° Out-of-Phase SYNCO Pin
• Programmable Soft Start (SS)
• Power Good (PG) Output Voltage Monitor
• Selectable Cycle-by-Cycle Current Limit
• Output Over-Voltage Protection (OVP)
• Over-Current Protection (OCP)
• Internal LDO with External Power Supply Option
• Programmable Forced CCM and AAM
• Available in TSSOP-20EP and QFN-20
(3mmx4mm) Packages
• Available in a Wettable Flank Package
• Available in AEC-Q100 Grade-1
