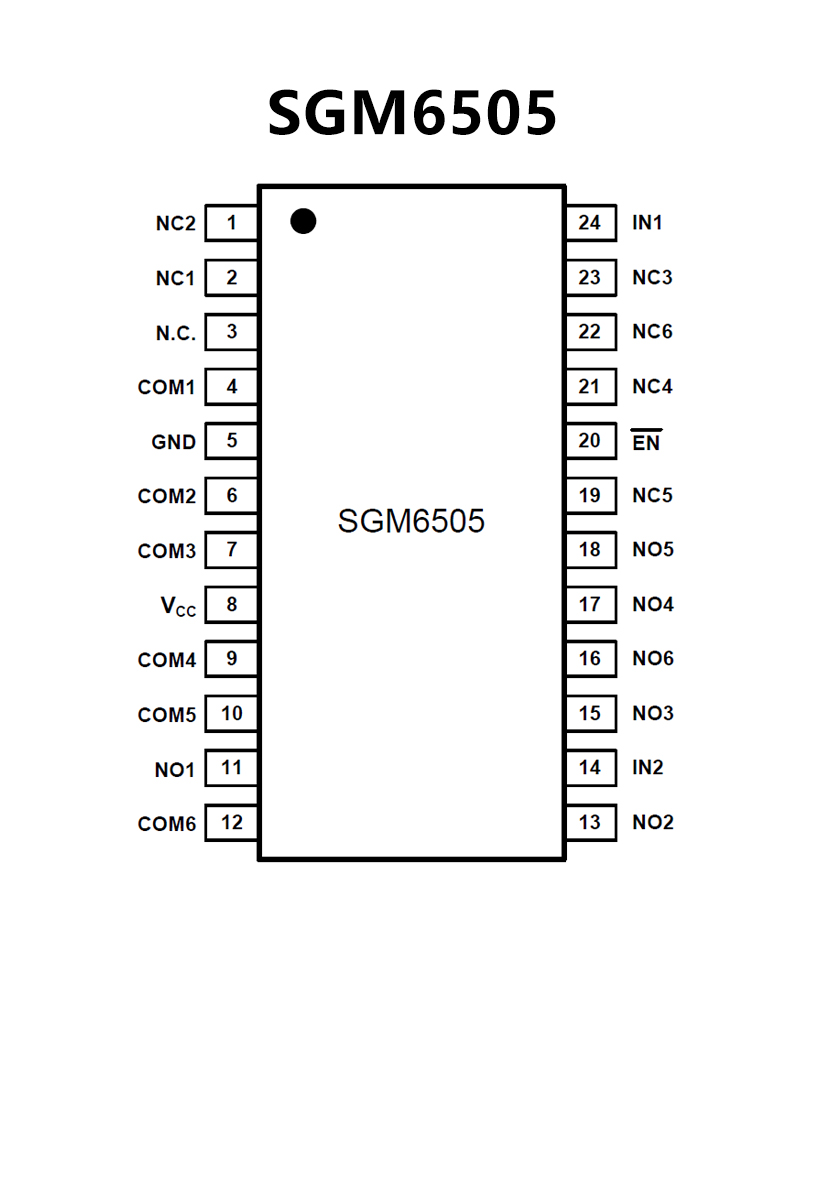

SGM6505YTQF24.pdf• Single-Supply Range: 2.0V to 5.0V
• Low Capacitance Switches: 15pF (TYP)
• On-State Resistance: 8.5Ω (TYP) at 3V
• -3dB Bandwidth: 450MHz
• Low Crosstalk: -55dB at 10MHz
• High Off-Isolation: -57dB at 10MHz
• 1.8V Logic Threshold Compatibility for Control
Inputs
• Available in Green TSSOP-24 and TQFN-4×4-24L
Packages
• Extended Industrial Temperature Range:
-40℃ to +85℃

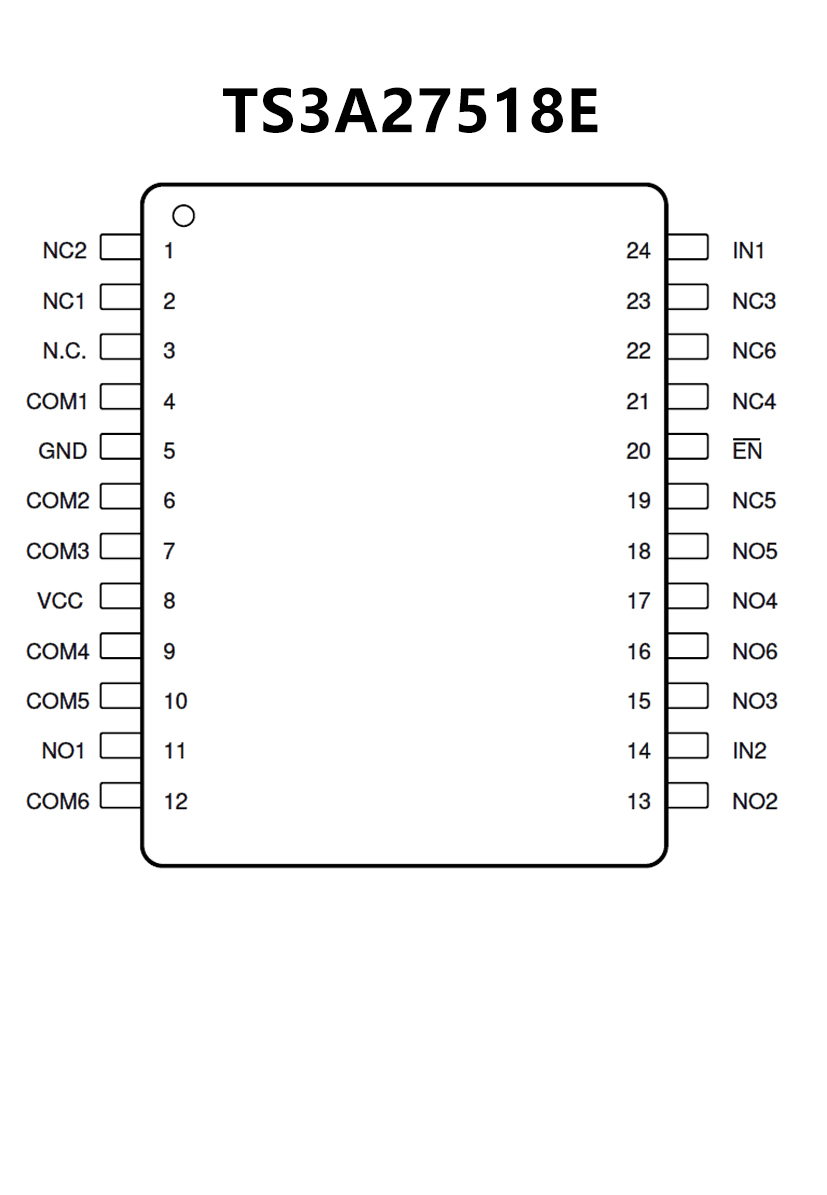

• 1.65 V to 3.6 V single-supply operation
• Isolation in power-down mode, VCC = 0
• Low-capacitance switches, 21.5 pF (typical)
• Bandwidth up to 240 MHz for high-speed
rail-to-rail signal handling
• Crosstalk and OFF isolation of –62 dB
• 1.8 V logic compatible control inputs
• 3.6 V tolerant control inputs
• Latch-up performance exceeds 100 mA per JESD
78, Class II
• ESD performance tested per JESD 22
2500-V human-body model (A114-B, Class II)
1500-V charged-device model (C101)
• ESD performance: NC/NO ports
±6-kV contact discharge (IEC 61000-4-2)
• 24-WQFN (4.00 mm × 4.00 mm) and 24-TSSOP
(7.90 mm × 6.60 mm) packages
