Low-Power DC-DC Boost Converter, SGM6601 Replace LM2733.
SGM6601
SGM6601.pdf
SGM6601.pdfFEATURES
• Input Voltage Range: 1.8V to 5.5V
• 38V (MAX) Adjustable Output Voltage
• 400mA Internal Switch Current
• 1MHz (MAX) Switching Frequency
• 20μA (TYP) Low Quiescent Current
• 0.1μA (TYP) Shutdown Current
• Internal Soft-Start Function
• -40℃ to +85℃ Operating Temperature Range
• Available in Green TSOT-23-5 and
TDFN-2×2-6L Packages

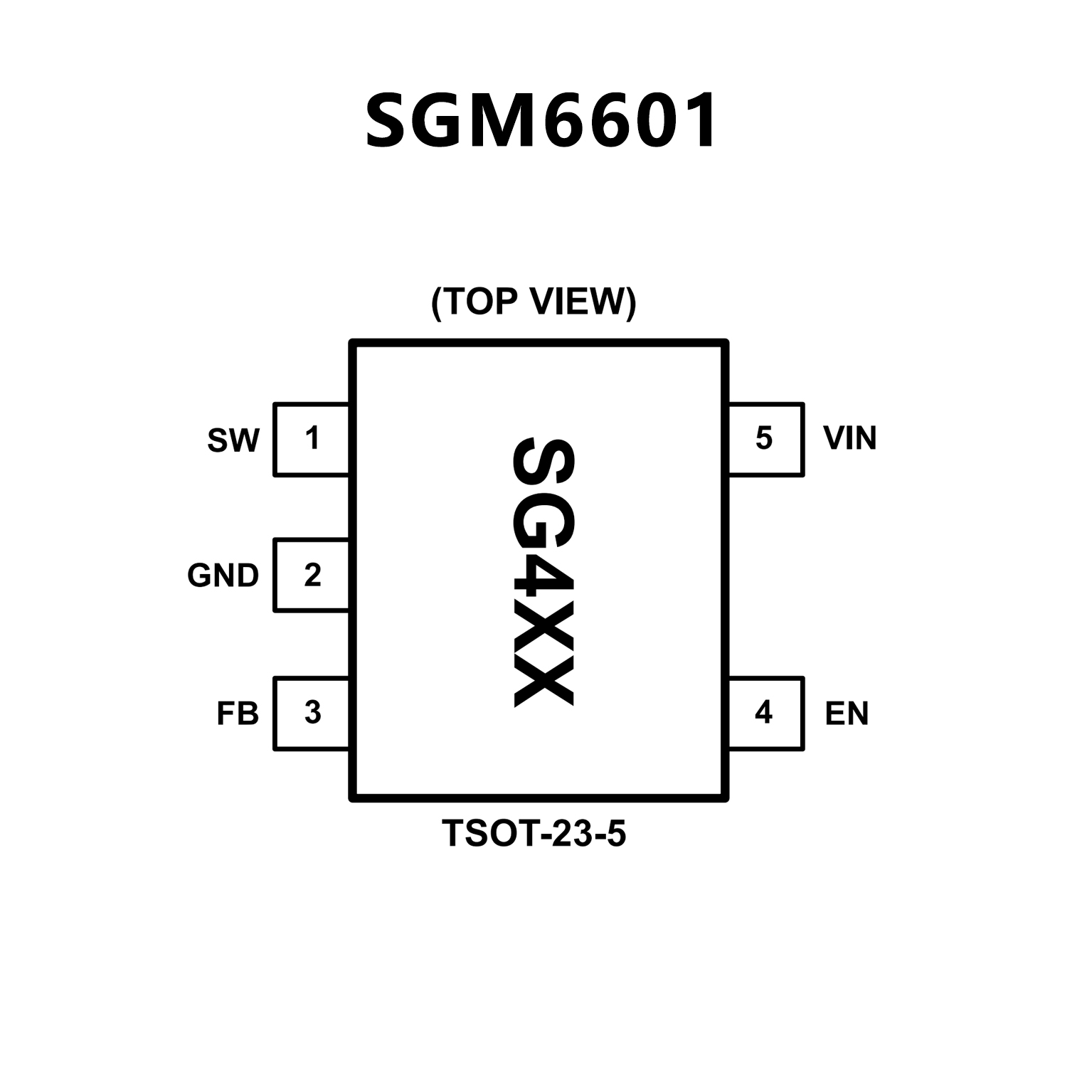

PIN CONFIGUTION
优势替代
FEATURES
• 40-V DMOS FET switch
• 1.6-MHz (“X”), 0.6 MHz (“Y”) Switching frequency
• Low RDS(ON) DMOS FET
• Switch current up to 1 A
• Wide input voltage 2.7 V to 14 V
• Low shutdown current (< 1 µA)
• 5-Pin SOT-23 package
• Uses tiny capacitors and inductors
• Cycle-by-cycle current limiting
• Internally compensated

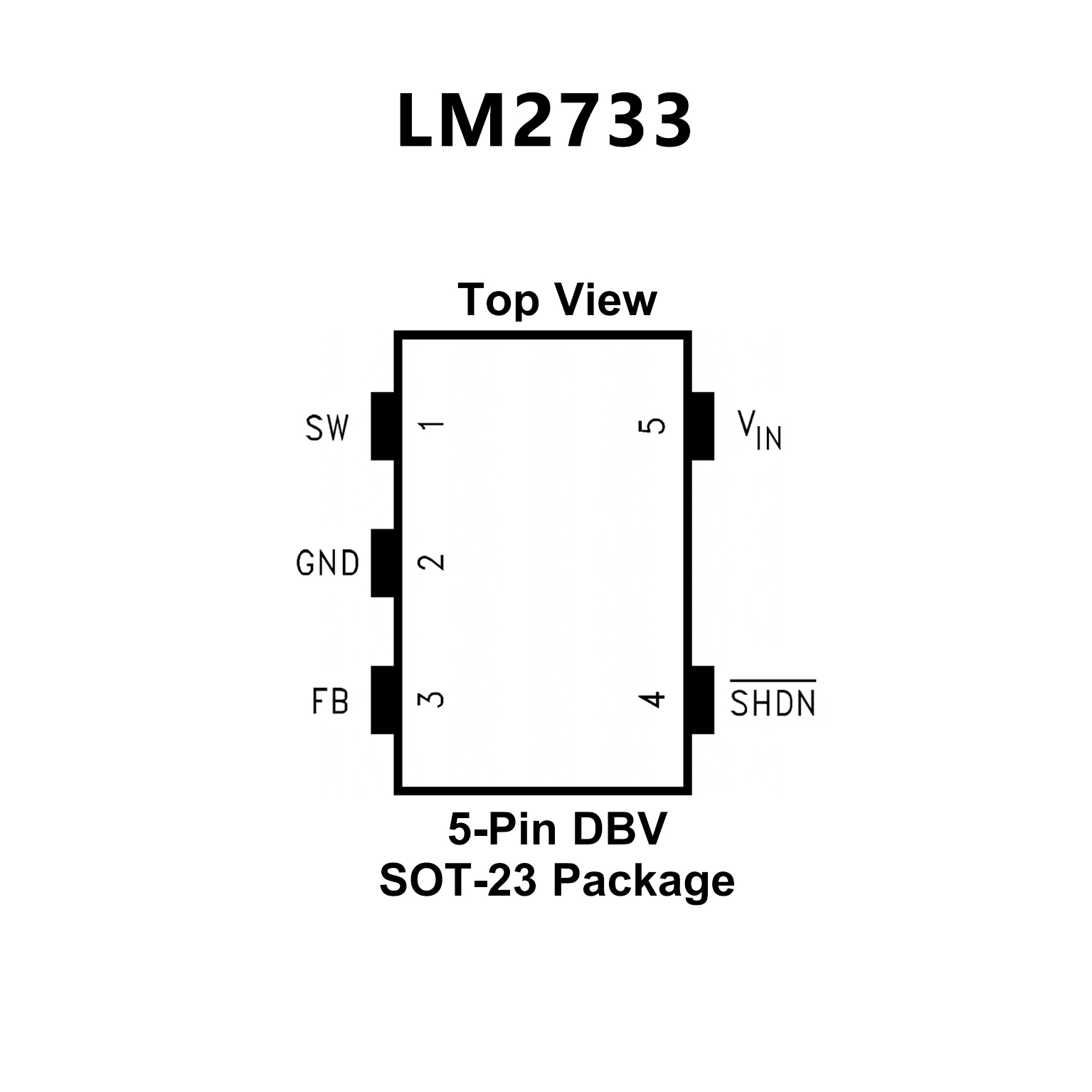

PIN CONFIGUTION
