1MHz,400mA Boost DC/DC Converter, Replace LT1617
SGM6601
SGM6601.pdf
SGM6601.pdfFEATURES
• Input Voltage Range: 1.8V to 5.5V
• Adjustable Output Voltage Range up to 38V
• 400mA Internal Switch Current
• Up to 1MHz Switching Frequency
• 20μA Typical No-Load Quiescent Current
• 0.1μA Typical Shutdown Current
• Internal Soft-Start Function
• -40℃ to +85℃ Operating Temperature Range
PIN CONFIGUTION
优势替代
FEATURES
• Low Quiescent Current:
• 20mA in Active Mode
• <1mA in Shutdown Mode
• Operates with VIN as Low as 1V
• Low VCESAT Switch: 250mV at 300mA
• Uses Small Surface Mount Components
• High Output Voltage: Up to –34V
• Tiny 5-Lead SOT-23 Package

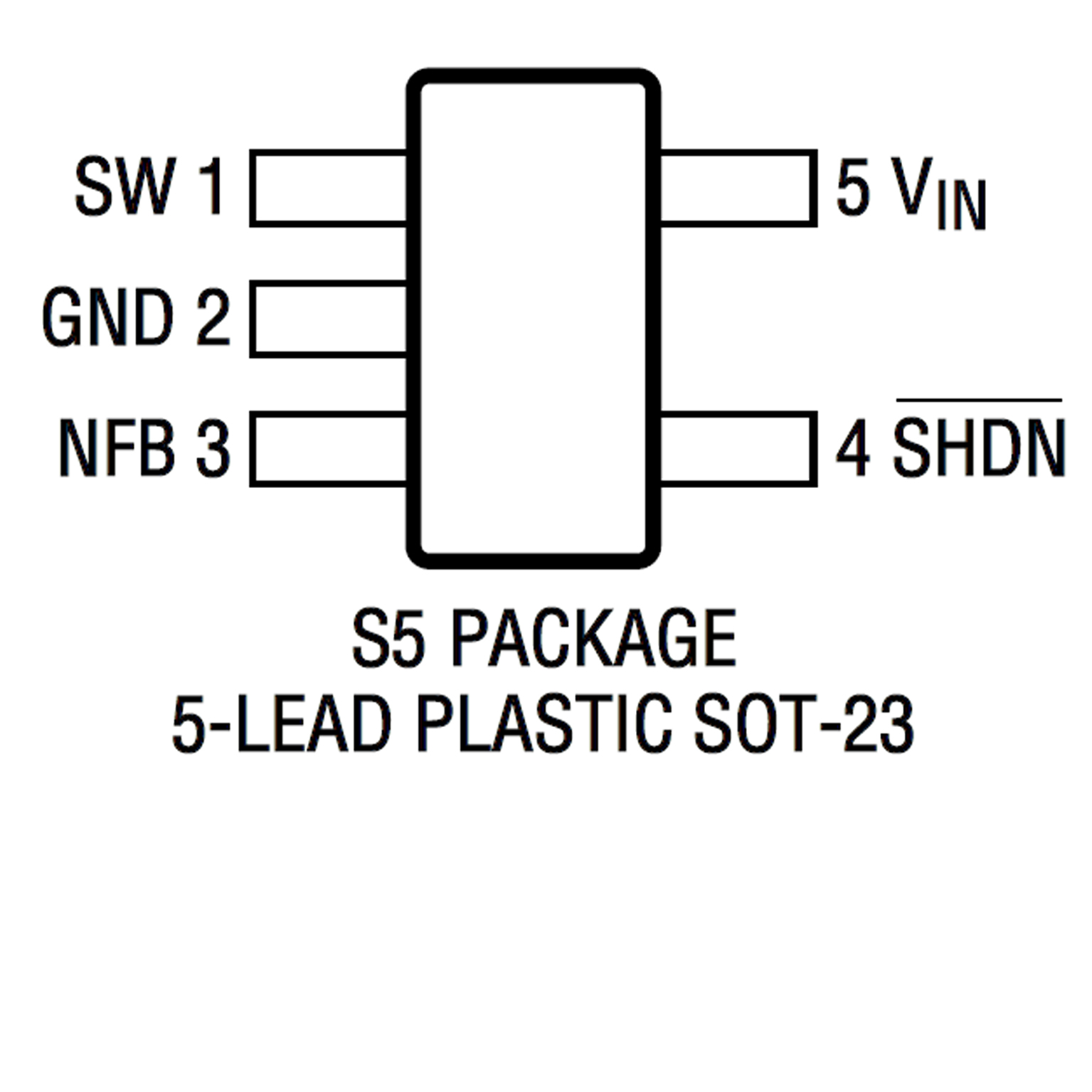

PIN CONFIGUTION
