Boost DCDC For LCD Bias Voltage in SOT25, SGM6601 Replace TPS61040.
SGM6601
SGM6601.pdf
SGM6601.pdfFEATURES
• Input Voltage Range: 1.8V to 5.5V
• Adjustable Output Voltage Range up to 38V
• 400mA Internal Switch Current
• Up to 1MHz Switching Frequency
• 20μA Typical No-Load Quiescent Current
• 0.1μA Typical Shutdown Current
• Internal Soft-Start Function
• -40℃ to +85℃ Operating Temperature Range
• Available in Green TSOT-23-5 and TDFN-2×2-6L
Packages
PIN CONFIGUTION
优势替代
FEATURES
• 1.8 V to 6 V Input Voltage Range
• Adjustable Output Voltage Range up to 28 V
• 400 mA (TPS61040) and 250 mA (TPS61041)
Internal Switch Current
• Up to 1 MHz Switching Frequency
• 28 µA Typical No Load Quiescent Current
• 1 µA Typical Shutdown Current
• Internal Softstart
• Available in a Tiny 5-Pin SOT23 Package

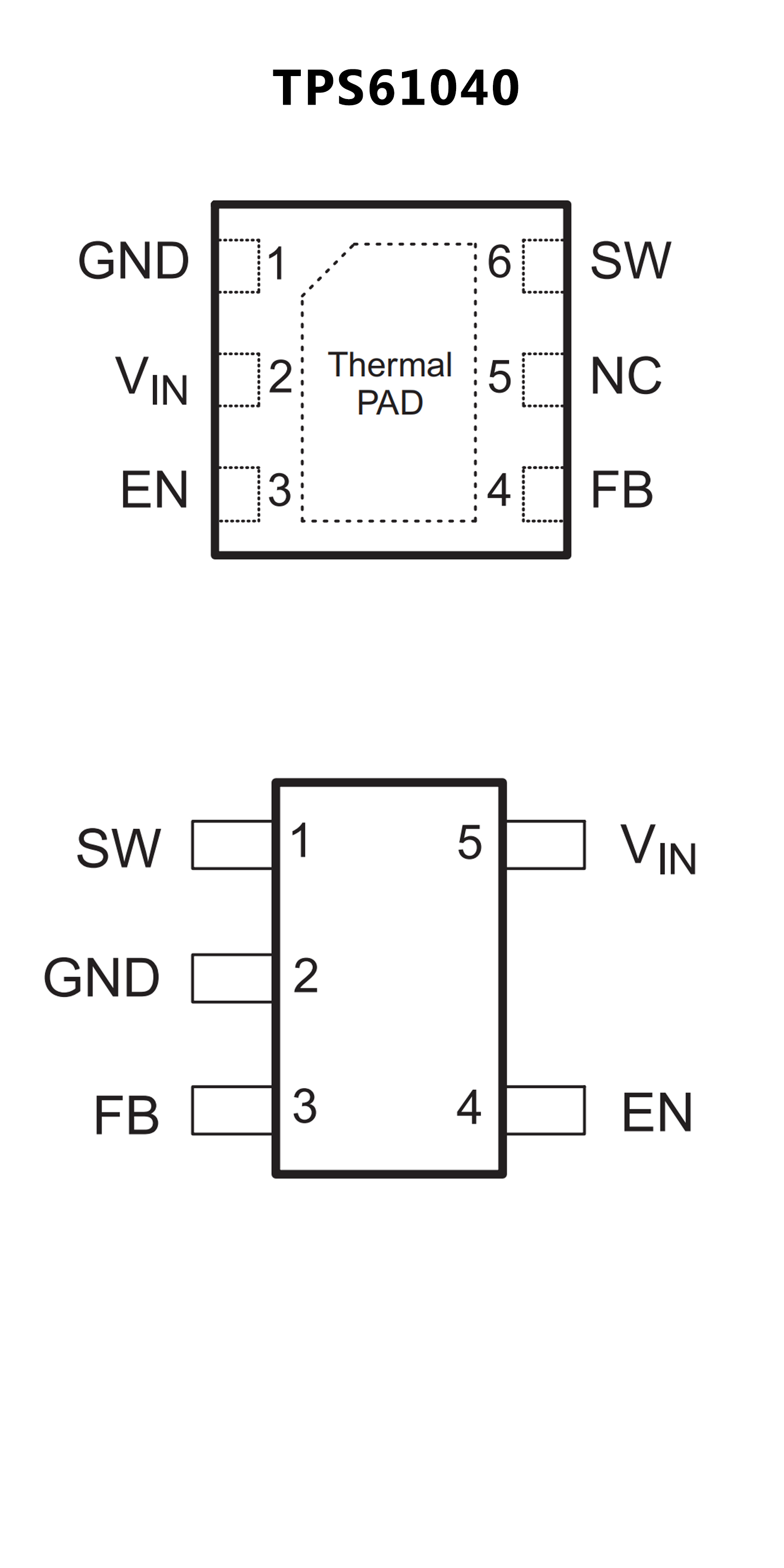

PIN CONFIGUTION
