Low-Power DC-DC Step-Up Converter,SGM6601YTN5G Replace TPS61041.
SGM6601YTN5G
SGM6601YTN5G.pdf
SGM6601YTN5G.pdfFEATURES
• Input Voltage Range: 1.8V to 5.5V
• Adjustable Output Voltage Range up to 38V
• 400mA Internal Switch Current
• Up to 1MHz Switching Frequency
• 20μA Typical No-Load Quiescent Current
• 0.1μA Typical Shutdown Current
• Internal Soft-Start Function
• -40℃ to +85℃ Operating Temperature Range
• Available in Green TSOT-23-5 and TDFN-2×2-6L
Packages

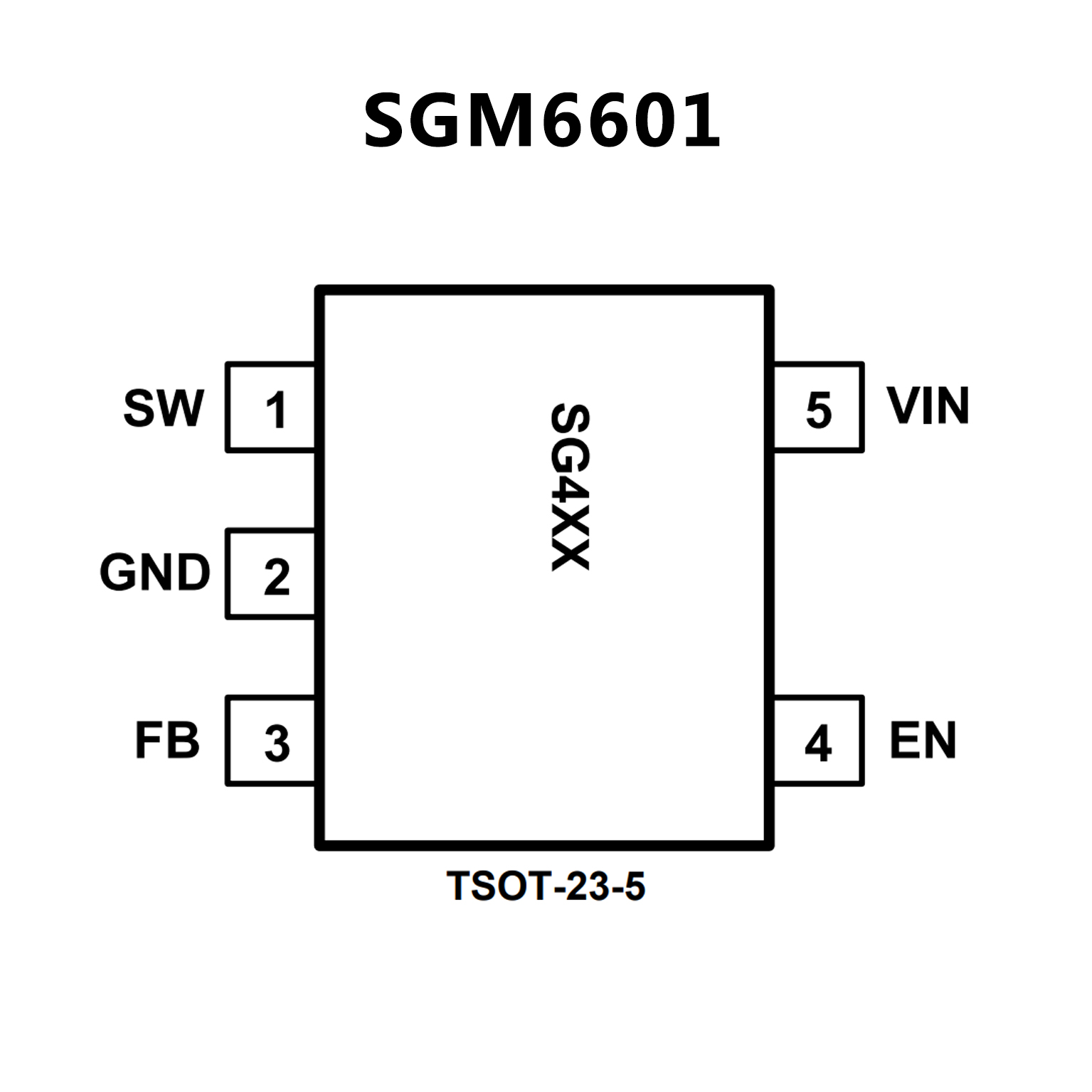

PIN CONFIGUTION
优势替代
FEATURES
• 1.8-V to 6-V Input Voltage Range
• Adjustable Output Voltage Range up to 28 V
• 400-mA (TPS61040) and 250-mA (TPS61041)
Internal Switch Current
• Up to 1-MHz Switching Frequency
• 28-μA Typical No-Load Quiescent Current
• 1-μA Typical Shutdown Current
• Internal Soft Start
• Available in SOT23-5, TSOT23-5,
and 2-mm × 2-mm × 0.8-mm WSON Packages

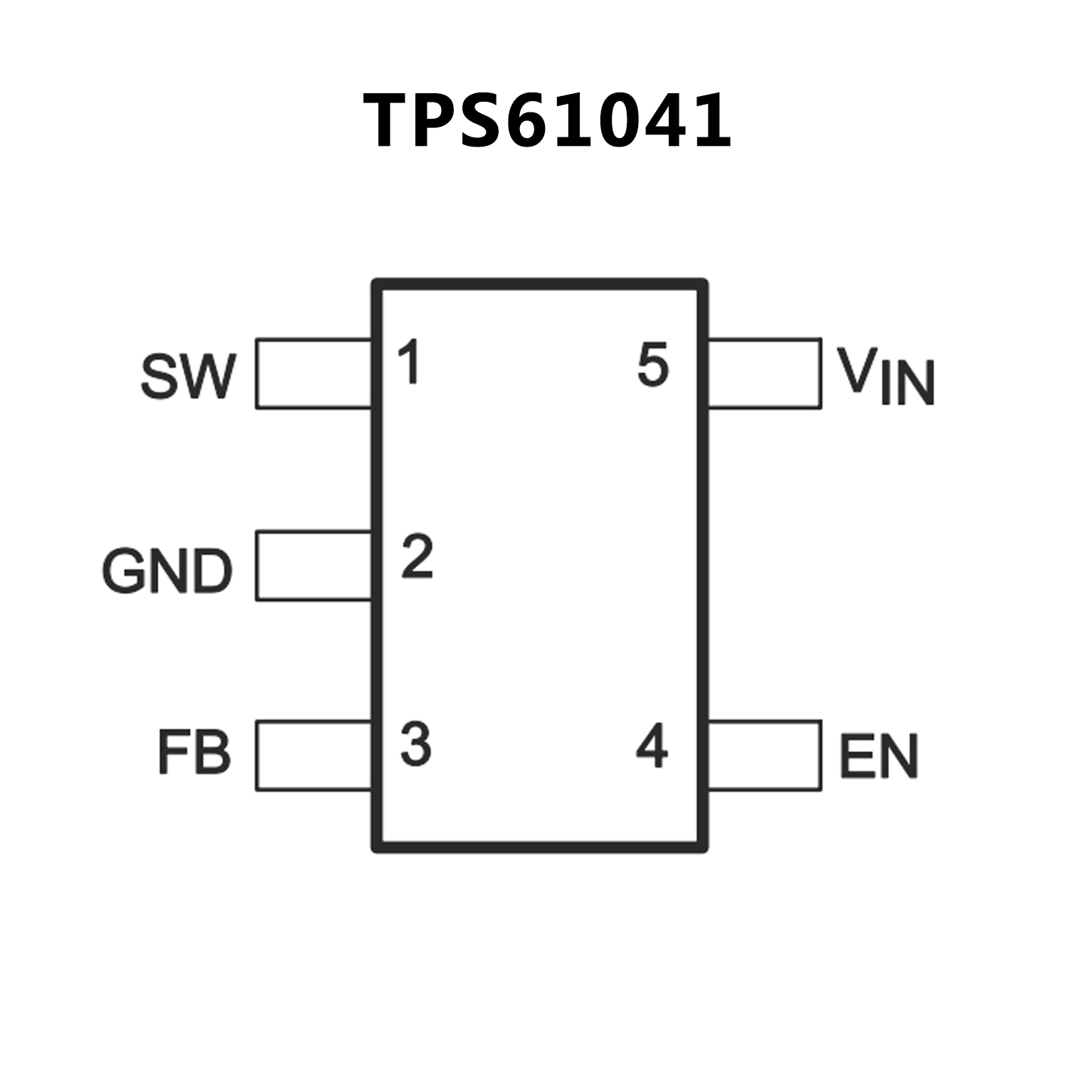

PIN CONFIGUTION
