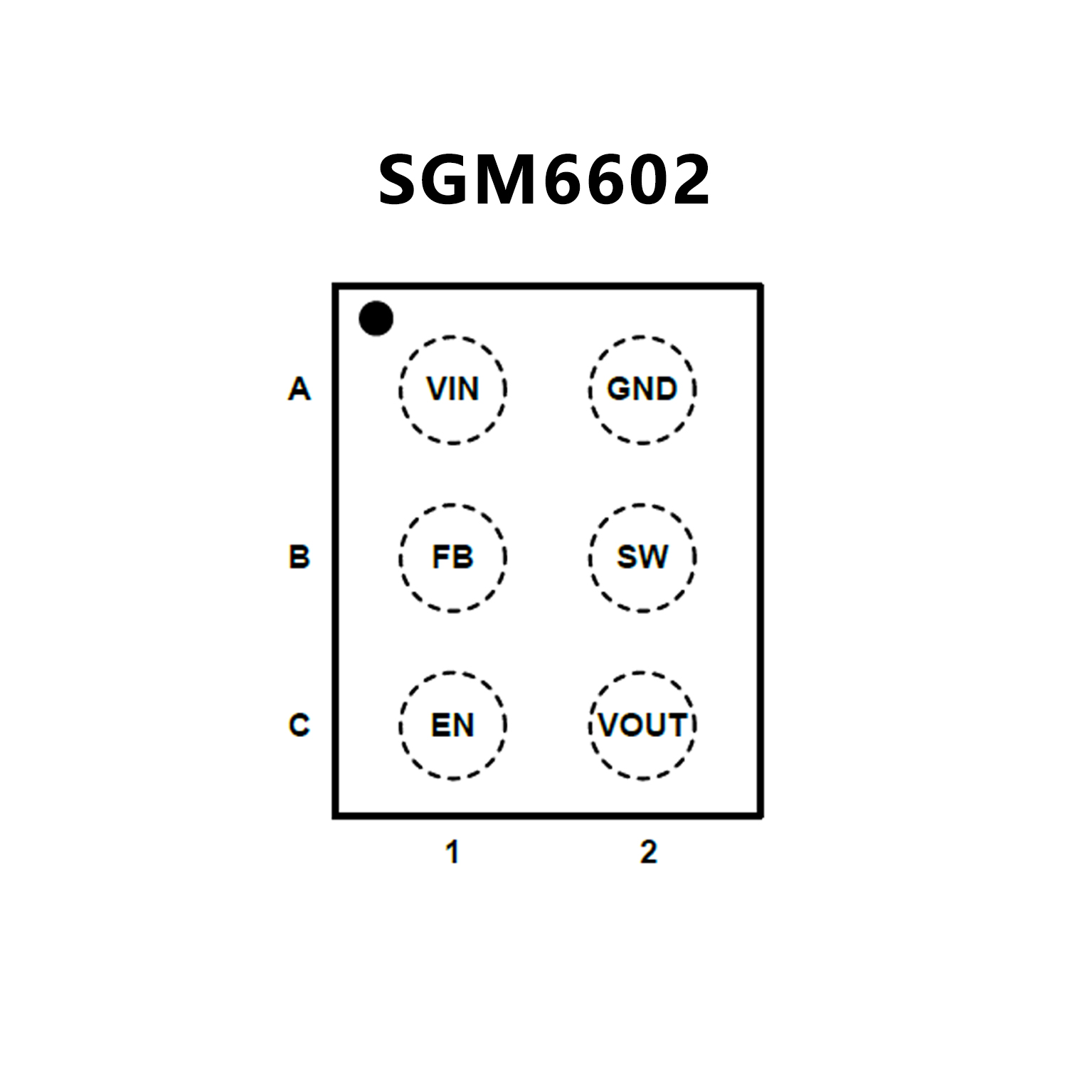

SGM6602.pdf• Input Voltage Range: 1.8V to 5.5V, 1.6V after Start-Up
• Output Voltage Up to 20V
• Integrated Isolation Switch
• 900mA (TYP) Switch Current
• Up to 85% Efficiency at 3.6V Input and 12V Output
• Less than 1μA Ultra-Low Shutdown Current
• Power-Save Operation Mode at Light Load
• Internal 5ms Soft-Start Time
• True Disconnection between
Input and Output during Shutdown
• Output Short-Circuit Protection
• Output Over-Voltage Protection
• Thermal Shutdown Protection
• -40℃ to +85℃ Operating Temperature Range
• Available in Green WLCSP-0.8×1.2-6B and
TDFN-2×2-6L Packages

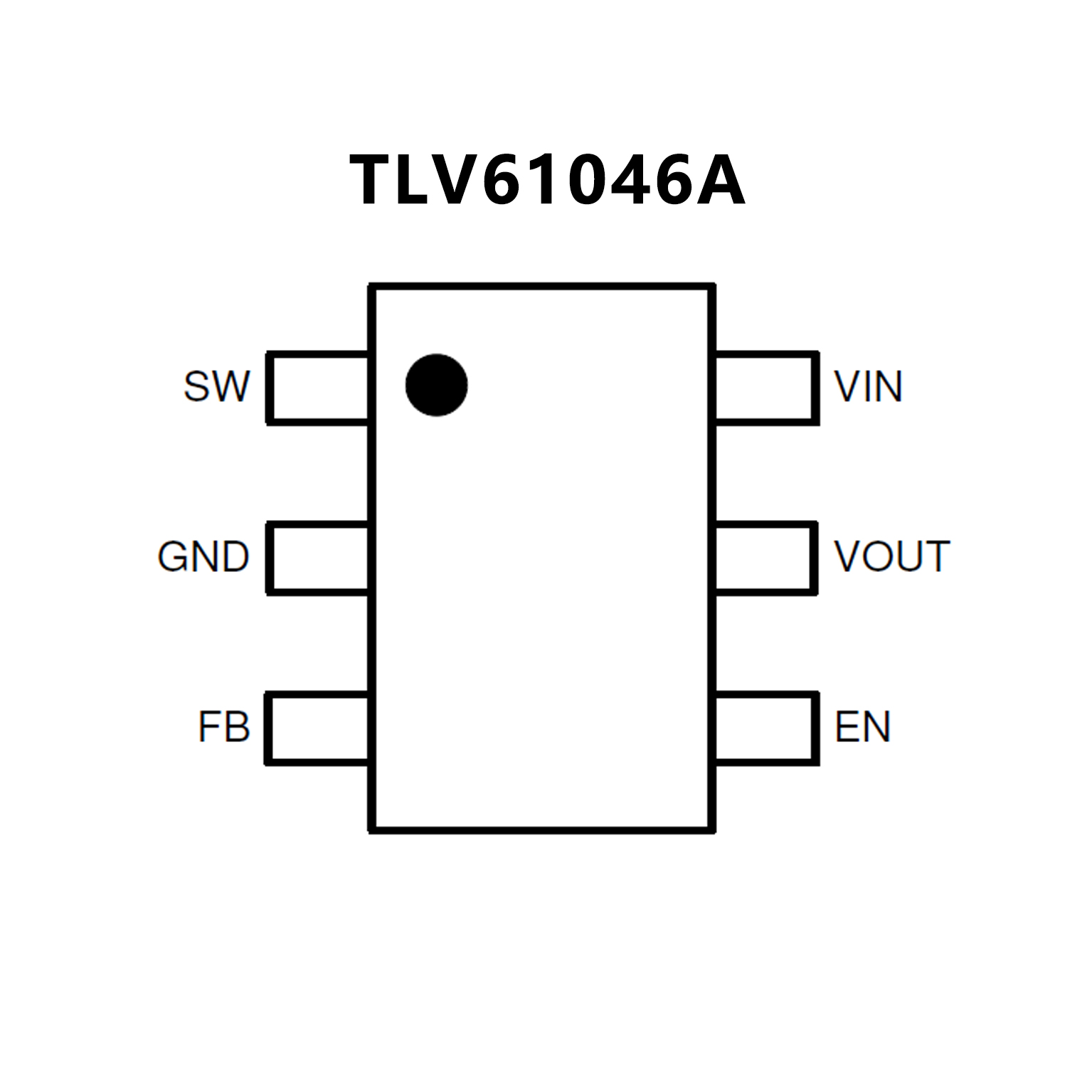

• Input voltage range: 1.8 V to
5.5 V, down to 1.6 V after start-up
• Output voltage up to 28 V
• Integrated power diode and isolation switch
• 980-mA (typical) switch current
• Up to 85% efficiency at 3.6-V input and 12-V output
• ±2.5% output voltage accuracy
• Power save operation mode at light load
• Internal 7-ms soft start time
• True disconnection between
input and output during shutdown
• Output short circuit protection
• Output overvoltage protection
• Thermal shutdown protection
• 3-mm × 3-mm SOT23-6 package
• Create a custom design using the
TLV61046A with the WEBENCH® Power Designer
